blender smooth export


esseninn
 Share

Recommended Posts

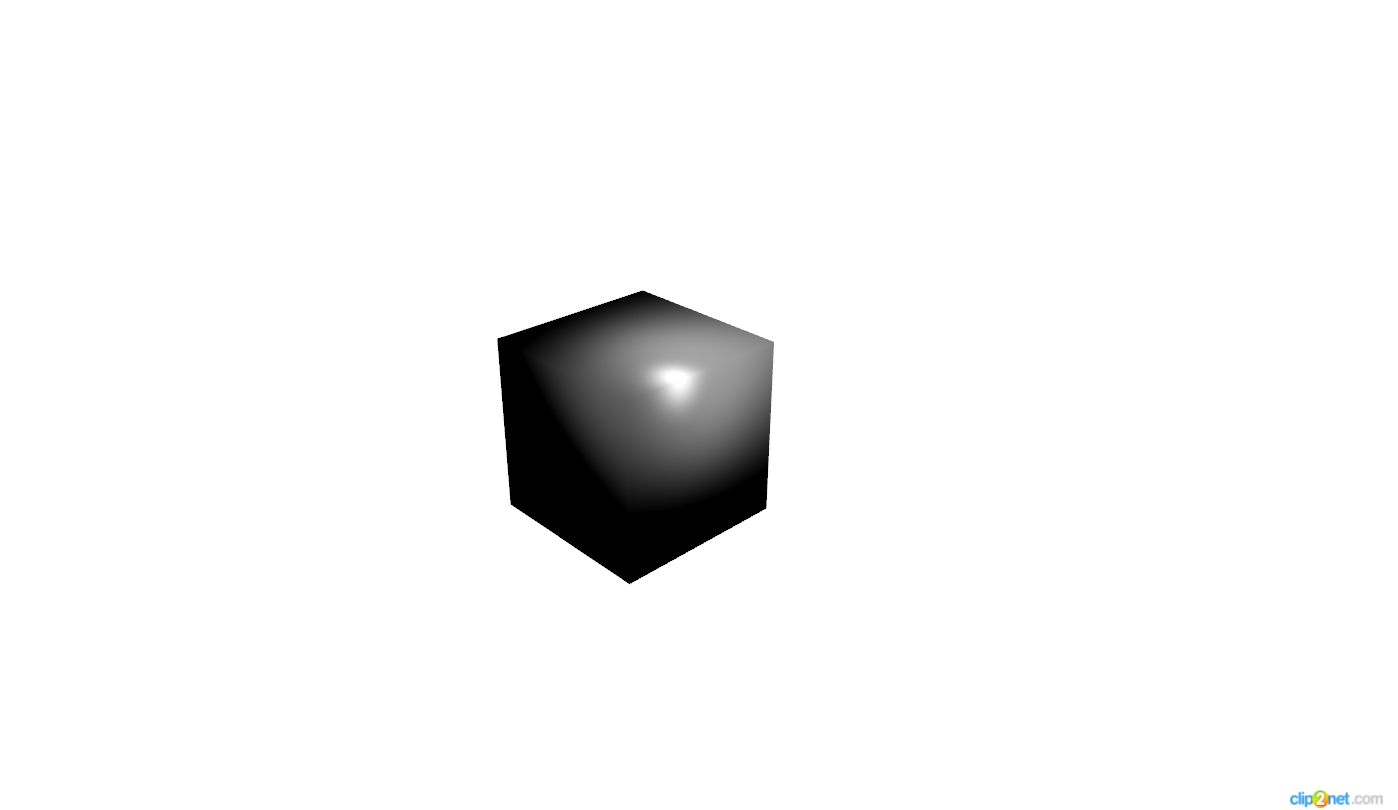

Standart scene, standart example but blender smooth export, why?

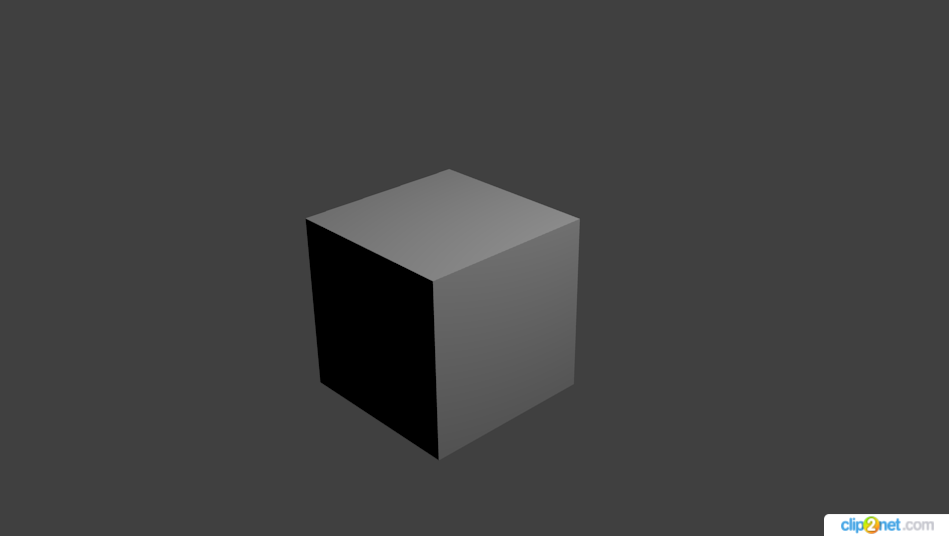

i need flat model.
or smooth model if modifier smooth

<!DOCTYPE html><html><head>    <meta charset="UTF-8">    <title>Scene</title>    <script src="/js/babylon.1.14.js"></script>    <style>        html, body, canvas {            width: 100%;            height: 100%;            margin: 0;            padding: 0;            overflow: hidden;        }    </style></head><body><canvas id="renderCanvas"></canvas><script>    var canvas = document.getElementById('renderCanvas');    var engine = new BABYLON.Engine(canvas, true);    BABYLON.SceneLoader.Load('/scenes/', 'scene.babylon', engine, function(newScene){        var scene = newScene;        scene.clearColor = new BABYLON.Color3(1, 1, 1);        scene.executeWhenReady(function(){            scene.activeCamera.attachControl(canvas);            engine.runRenderLoop(function(){                scene.render();            });        })    });    window.addEventListener('resize', function(){    });</script></body></html>

tnx.

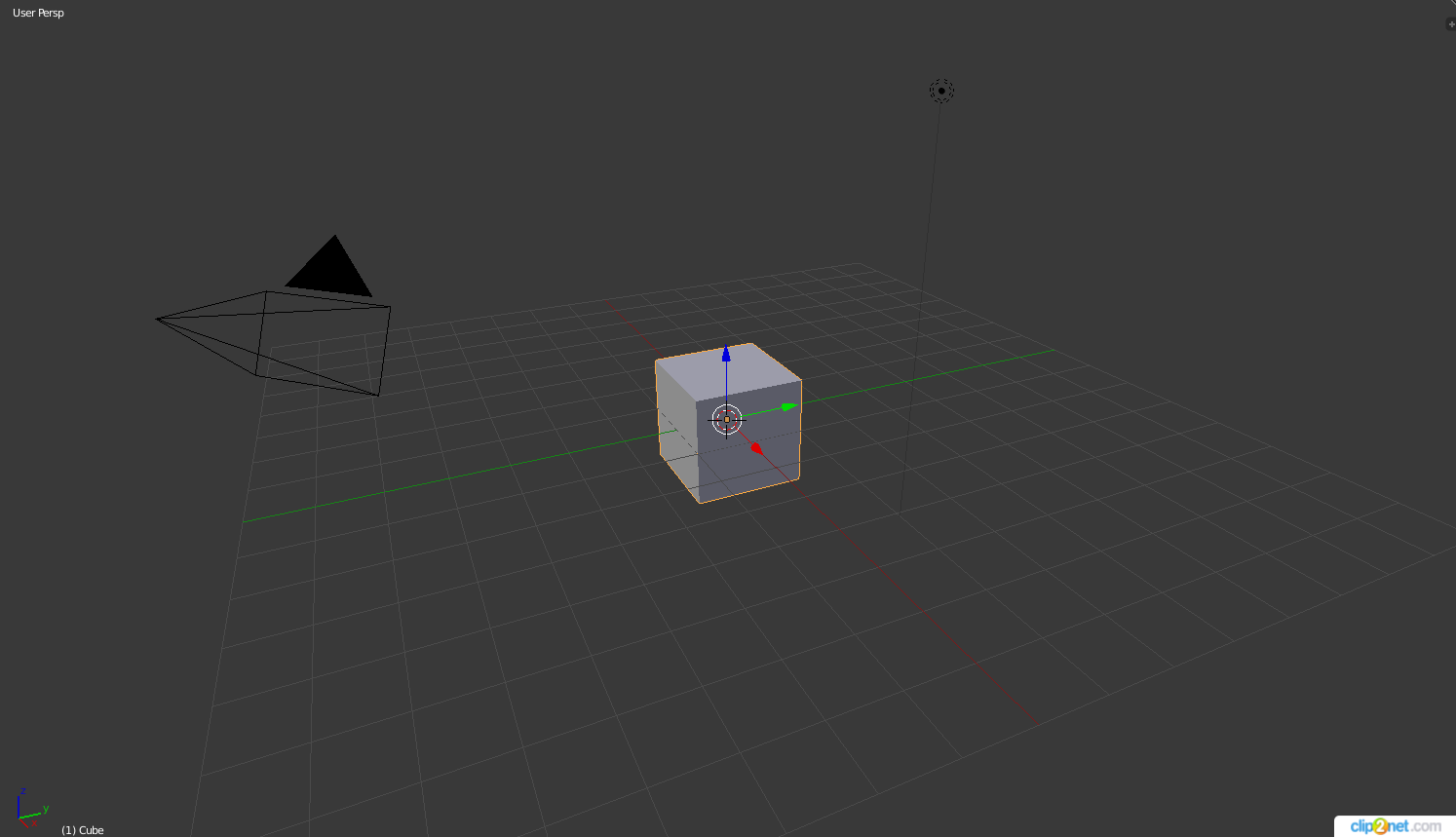

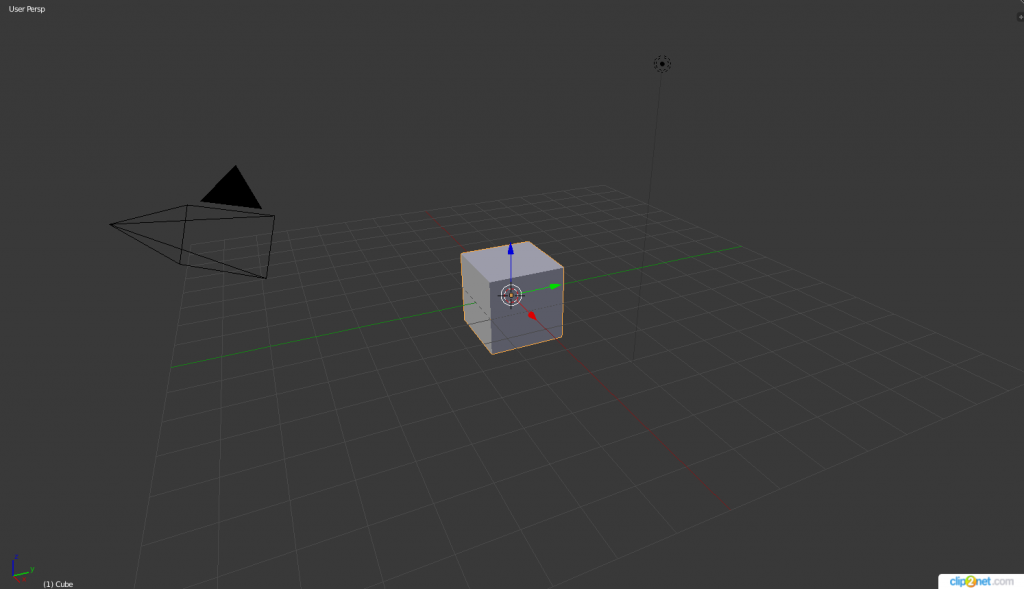

post-12742-0-61157500-1421962648_thumb.p


post-12742-0-32954500-1421962649_thumb.p

scene.zip

Link to comment
Share on other sites

Hi esseninn - welcome to the forum.



In Blender, go to the Properties Panel and chose the tab with the little triangle. In that panel you will see a little arrow with "Babylon.js" next to it. Click on the little arrow and you will see the parameters you can set easily. One is "Flat Shading". Click on the little box to put a check mark in it. You will get that mesh with flat shading.



Easy to do. No need to add program lines - and you can select all meshes for each state right in Blender :)



cheers, gryff :)
