model import and texture

[thecco]

hello



i can't use english well.. sorry





i have many problem.







first.  i have 3d model make from 3dmax.(obj, fbx)



using converter  obj- > babylon   // Success



but fbx -> babylon // Failure





so  i decision using obj.

BABYLON.SceneLoader.Load("Scenes/test/", "HUB_F.babylon", engine, function (newScene) {

but texture is not loading



this model have 124 jpg files

scene = newScene;var ship = scene.meshes[0];var mat = new BABYLON.StandardMaterial("Mat", scene); mat.reflectionTexture = new BABYLON.Texture("Scenes/test/", scene);scene.material = mat;





texture files are exist in the same folder as the model files.( scenes/test/)



how can i apply texture?





i'm Language breaker....TT

[Dad72]

To apply the textures you must use diffuseTexture

var ship = scene.meshes[0]; myNewMaterial = new BABYLON.StandardMaterial("Mat", scene);myNewMaterial.diffuseTexture = new BABYLON.Texture("Scenes/test/", scene);   for(var i = 1; i < ship.length; i++) {                                 ship[i].material = myNewMaterial;                        }

For export fbx, use the FXB exporter version 2012 or 2013

[thecco]

thank you  reply



when i using your source



print this

Resource interpreted as Image but transferred with MIME type text/html: "http://localhost:47688/Scenes/test/". b-1.8.0.js:22(anonymous function) b-1.8.0.js:22Resource interpreted as Image but transferred with MIME type text/html: "blob:http%3A//localhost%3A47688/68db1fb7-606c-4b9e-88bb-6a63be72a3c1". b-1.8.0.js:22generateBlobUrl b-1.8.0.js:22transaction.oncomplete

[GameMonetize]

Do not forget to define the filename :

var ship = scene.meshes[0];myNewMaterial = new BABYLON.StandardMaterial("Mat", scene);myNewMaterial.diffuseTexture = new BABYLON.Texture("Scenes/test/texture.jpg", scene);   for(var i = 1; i < ship.length; i++) {                                 ship[i].material = myNewMaterial;                        }

[thecco]

but.... i have 124 jpg files...



so..........................



1     myNewMaterial1.diffuseTexture = new BABYLON.Texture("Scenes/test/head.jpg", scene);

2     myNewMaterial2.diffuseTexture = new BABYLON.Texture("Scenes/test/body.jpg", scene);

3     myNewMaterial3.diffuseTexture = new BABYLON.Texture("Scenes/test/foot.jpg", scene);

4.    .

       .....

123 .

124 myNewMaterial124.diffuseTexture = new BABYLON.Texture("Scenes/test/hairjpg", scene);



like this?





and...



console.log(ship.length)     ---> undefined ....







i found some strange

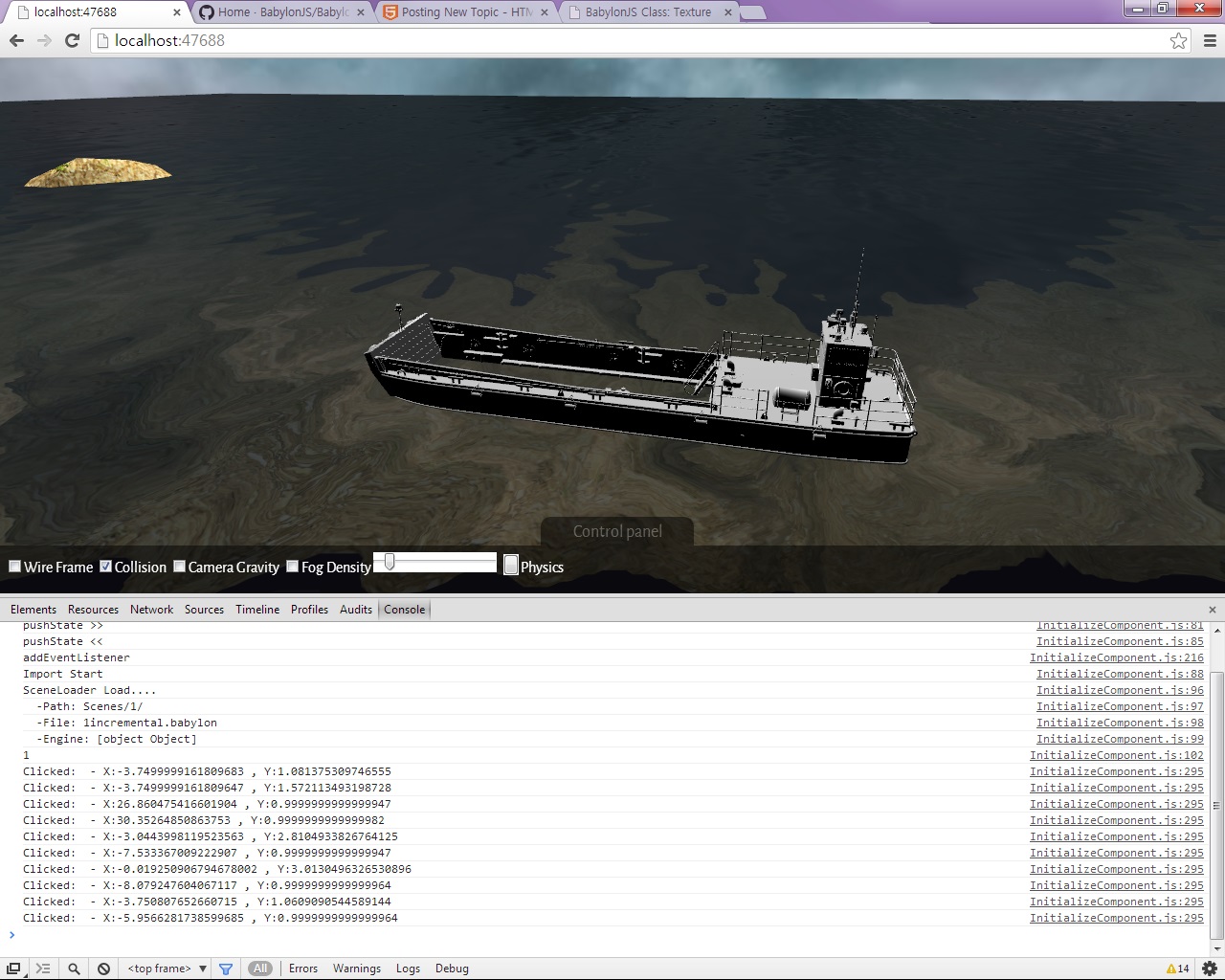

BABYLON.SceneLoader.Load("Scenes/test/", "HUB_F.babylon", engine, function (newScene) {                    scene = newScene;                    var ship = scene.meshes[0];                    ship.scaling.x = 0.03;                    ship.scaling.y = 0.03;                    ship.scaling.z = 0.03;

i think  "scene.meshes[0]" is  just one mesh....



how can i load  model and  put in one variable like ship?

[GameMonetize]

Yes like this:)

scene.meshes[0] is the first loaded mesh, all other meshes are scene.meshes[1], etc...

[thecco]

thanks



can u check my code?

var myNewMaterial = [];                    console.log(scene.meshes[0]);                    console.log(scene.meshes[1]);                    console.log(scene.meshes[129]);                    console.log(scene.meshes[scene.meshes.length - 1] + " ,  " + scene.meshes.length);                    for (var i = 0; i < scene.meshes.length; i++) {                        myNewMaterial[i] = new BABYLON.StandardMaterial("Mat" + i, scene);                        var name = scene.meshes[i].name + "";                        var tmp = name.split("#");                        //var imgName = (tmp[1] + "").replace(" ", "");                        console.log(scene.meshes[i].name + ", " + name + ", " + tmp + ", " + imgName);                        myNewMaterial[i].diffuseTexture = new BABYLON.Texture("Scenes/test/" + tmp + ".jpg", scene);                        scene.meshes[i].material = myNewMaterial[i];                    }

1. Uncaught TypeError: Cannot read property 'uv' of undefined
   1. BABYLON.Mesh.isVerticesDataPresent
   2. BABYLON.StandardMaterial.isReady
   3. BABYLON.Scene.isReady
   4. BABYLON.Scene._checkIsReady
   5. (anonymous function)

and.



How to convert mtl file



when i used obj file converter is not using mtl....



when i used fbx file xna framework print out err message (65xxx mesh over)

[GameMonetize]

You seems to have a issue with big meshes. Your meshes cannot have more than 65535 vertices. You have to split them else.



Obj converter supports .mtl so the issue above should be the source of the problem
