scene.pick, mesh names, FBX Exporter

[ProfessorF]

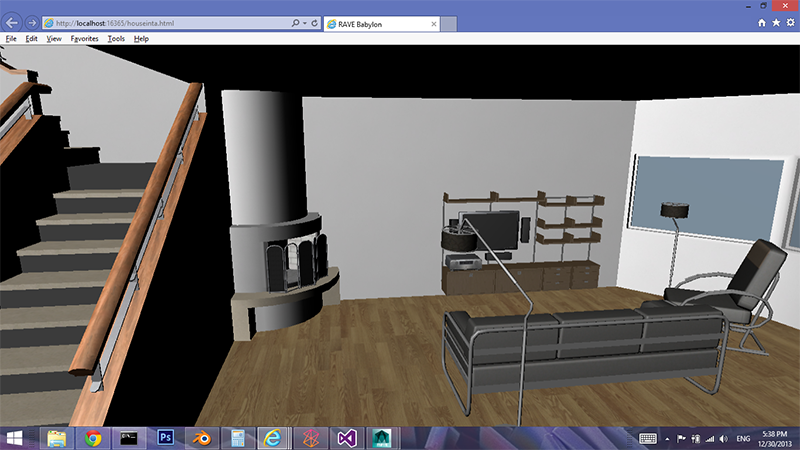

Okay, so I exported a house interior created in Maya using FBX Exporter. This is what the scene looks like in Babylon.js:



I use scene.pick to select objects in the room for turning on and off (like lights).



Problem: *everything* I select is named: #0 or #N (where N is 0,1, 2...)



For example, if I click on the TV and use



picked = scene.pick(...) to get the mesh, then picked.pickedMesh.name is "#0"



Solution: To get the actual name of the mesh, I need to do:



picked.pickedMesh.parent.name, which returns "TV_A", which is correct.



DIGGING



The culprit is in the XNAExporter.cs.  A dummy mesh is created with the correct name TV_A, but then the actual meshes are created with the names: #0, #1, etc...  Here is the line that does it:



                    mesh.AddPart(indexName.ToString(), vertices.ToList(), indices.Select(i => (int)i).ToList());



This line is in two places, BUT if this were changed to:



                    mesh.AddPart(modelMesh.Name+"#"+ indexName.ToString(), vertices.ToList(), indices.Select(i => (int)i).ToList());





Then scene.pick could return TV_A#0, TV_A#1, etc.  <== This is easier to check than having to go to the parent.



QUESTIONS



1) Does the Blender exporter have the same behavior?  If so, I think that should be changed too.

2) Could you change the code in XNAExporter.cs (two places) to pre-pend the mesh name before the #N?



Thanks,



- Nick











[GameMonetize]

Hello

 1. No Blender has no problem with sub parts so names are kept

 2. Sure, but I have a better idea to thank you correctly: why don't you create a pull request on the github in order to be added to contributors ??

[ProfessorF]

Thanks! haha, okay.  Hold on... Okay I created a pull request.  What a hassle!  Windows github wasn't working so I had to learn the command line github...

[GameMonetize]

I saw it, thank you very much

As soon as I get back from holidays, I will validate it
