PIXI Graphics are not sharp


Ravindu89
 Share

Recommended Posts

I am building a stock chart on PIXI.js. To display different chart styles on chart, I am using PIXI.graphics' drawRect, drawPolygon, lineTo functions. Graphics, Edges, grid lines, text are not sharp in this chart. I would like to say that I've tried several workarounds from the web to make this chart sharp. But those didn't help me.

Examples how the chart looks on in candle and area chart styles and renderer parameters are shown in below.

   const renderer = PIXI.autoDetectRenderer(canvas.width, canvas.height,
            {view: canvas, antialias: true, transparent: false, resolution: 1});


        renderer.view.style.position = 'relative';
        renderer.view.style.display = 'block';
        renderer.autoResize = true;
        renderer.backgroundColor = 0xFFFFFF;

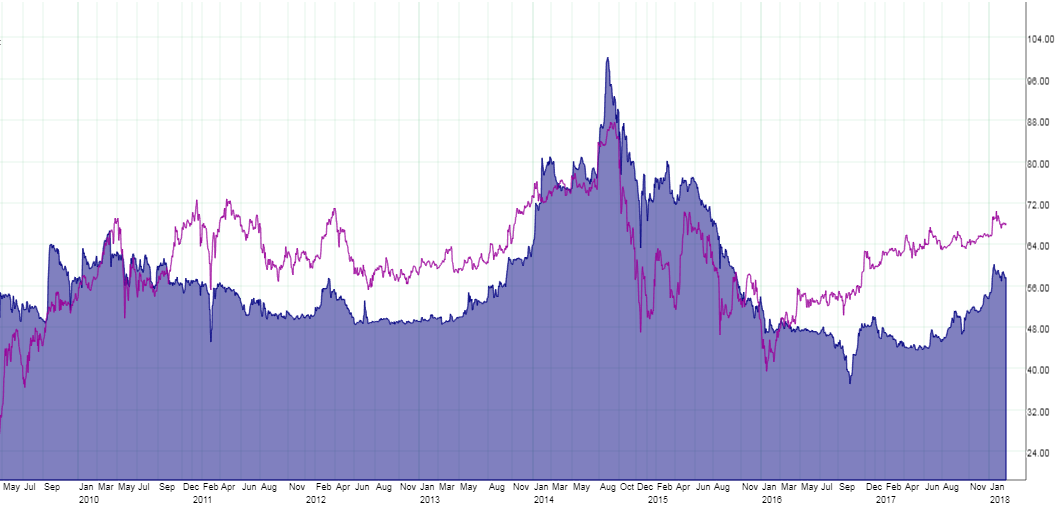

Area Chart Style

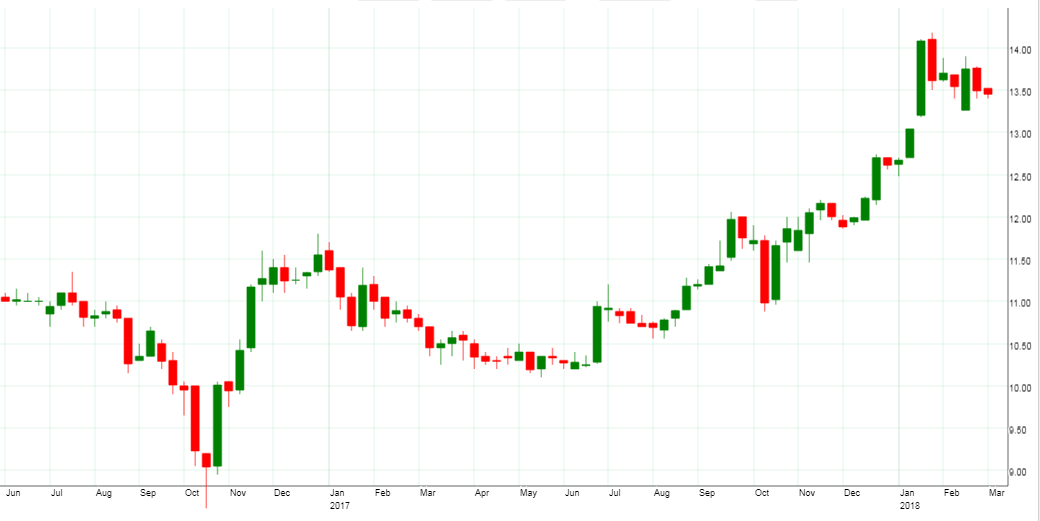

Candle Chart Style


Would like to hear any advice on the subject.

Thanks in advance!

Link to comment
Share on other sites

  • 2 years later...
On 1/29/2021 at 9:52 PM, enns said:

what to do when using fonts? they are also not sharp.

xLbl = new PIXI.Text(txt, xPointsTextStyle);
xLbl.position.set(Math.round(xMajorPos), Math.rount(yMajorPos));



I think this will helpful. Don't use half integer pixels when drawing objects.
