Phaser CE - Camera-tile co-ordination is a mess!


SmV
 Share

Recommended Posts

Hi! I am using Phaser CE, and here is some code:

var level1 = {
	map:{
	size:48,
	w:36,
	h:6,
	layout:[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,
			0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,
			1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,
			2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,
			2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,
			2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2]
	},
	create: function(){
		game.scale.scaleMode = Phaser.ScaleManager.SHOW_ALL;
		game.physics.startSystem(Phaser.Physics.ARCADE);
		game.stage.backgroundColor = "#0ff";
		game.renderer.renderSession.roundPixels = true;
		game.world.resize(this.map.size*this.map.w,this.map.size*this.map.h);
		this.background = game.add.tileSprite(0,0,game.world.width,game.world.height,'bg');
		this.background.scale.setTo(3,3);
		this.ost = game.add.audio('music');
		this.ost.loop = true;
		this.ost.play();
		this.tiles = [];
	var j = 0;
		for(var i = 0;i<this.map.layout.length;i++){
			if(this.map.layout[i]!=0){
			switch(this.map.layout[i]){
			case 1:
				this.tiles[j] = game.add.sprite((i%this.map.w)*this.map.size,Math.floor(i/this.map.h)*this.map.size,'tile2');
			case 2:
				this.tiles[j] = game.add.sprite((i%this.map.w)*this.map.size,Math.floor(i/this.map.h)*this.map.size,'tile');
			}
				this.tiles[j].width = this.map.size;
				this.tiles[j].height = this.map.size;
				game.physics.arcade.enable(this.tiles[j]);
				this.tiles[j].body.immovable = true;
				j++;
			}
		}
		player.create();
		game.camera.follow(player.sprite,0.4,0.4);
	},
	update: function(){
		for(var i = 0; i < this.tiles.length; i++){
			game.physics.arcade.collide(player.sprite,this.tiles[i]);
		}
		this.orientationChange();
		player.render();
		this.background.tilePosition.y += 0.25;
	},
	orientationChange: function(){
		game.scale.scaleMode = Phaser.ScaleManager.SHOW_ALL;
	}
}

That was my player sprite colliding with a 1-D tilemap array.

My problem is this --

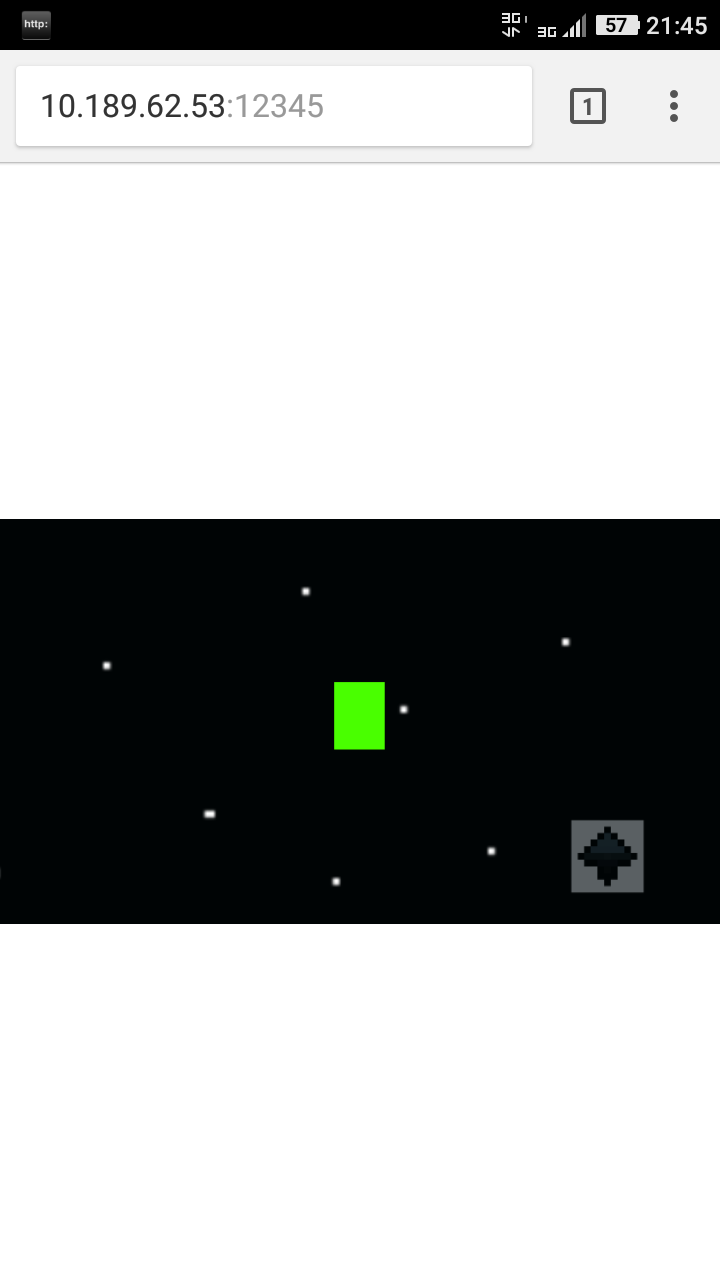

When the player jumps, or isn't near the lower half, it looks normal(first screenshot.

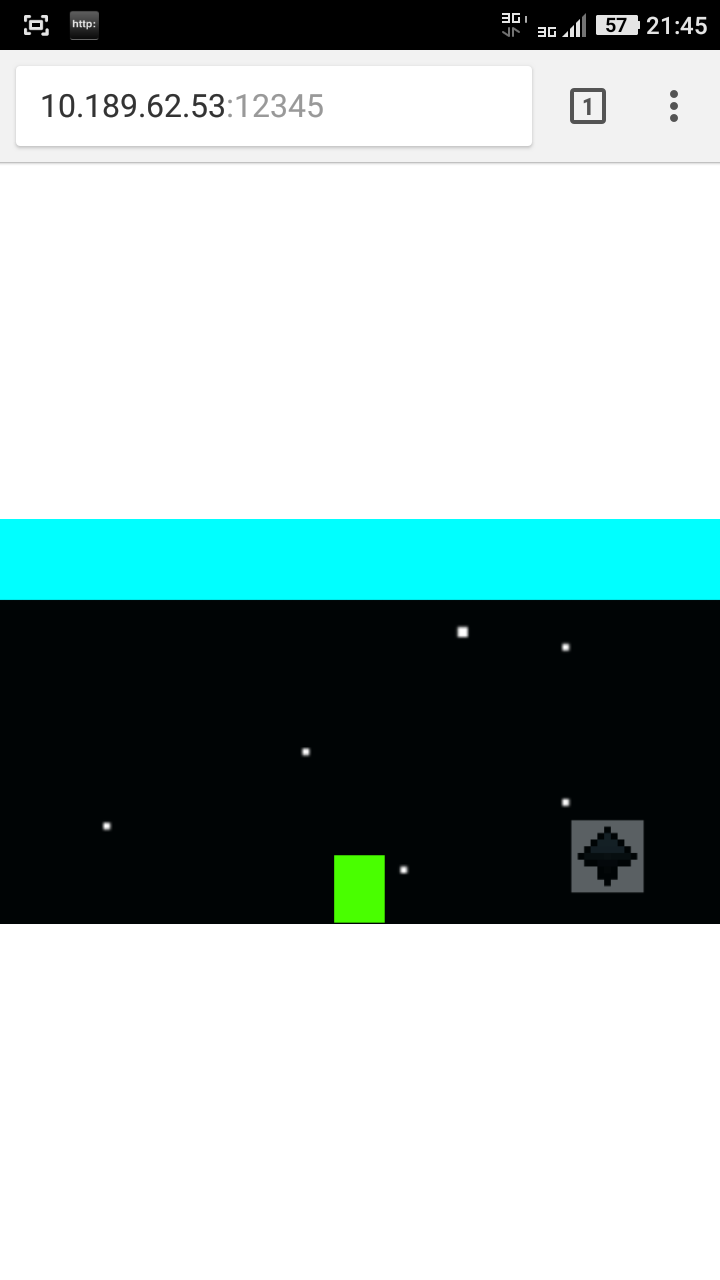

When it collides with the ground tiles (labeled 1 or 2) the camera acts as if I've touched the bottom of the screen, instead of showing the sprite on the tile, centered...(second screenshot)

Please help! I am using Phaser from just a week, and this is a peculiar issue. There is a sample game at smvaidya.itch.io/DuskMite

That map with tiles all over worked just fine but the one tiles which were set as floor (3 rows!) don't show up. They are under the screen. Why?
