Fedor

Keep child at original scale

Recommended Posts

I'm so much looking for a ways to do this thing.
The logic would pixijs have a property liked called "'death'".
Same as a 2d Physics simulator.

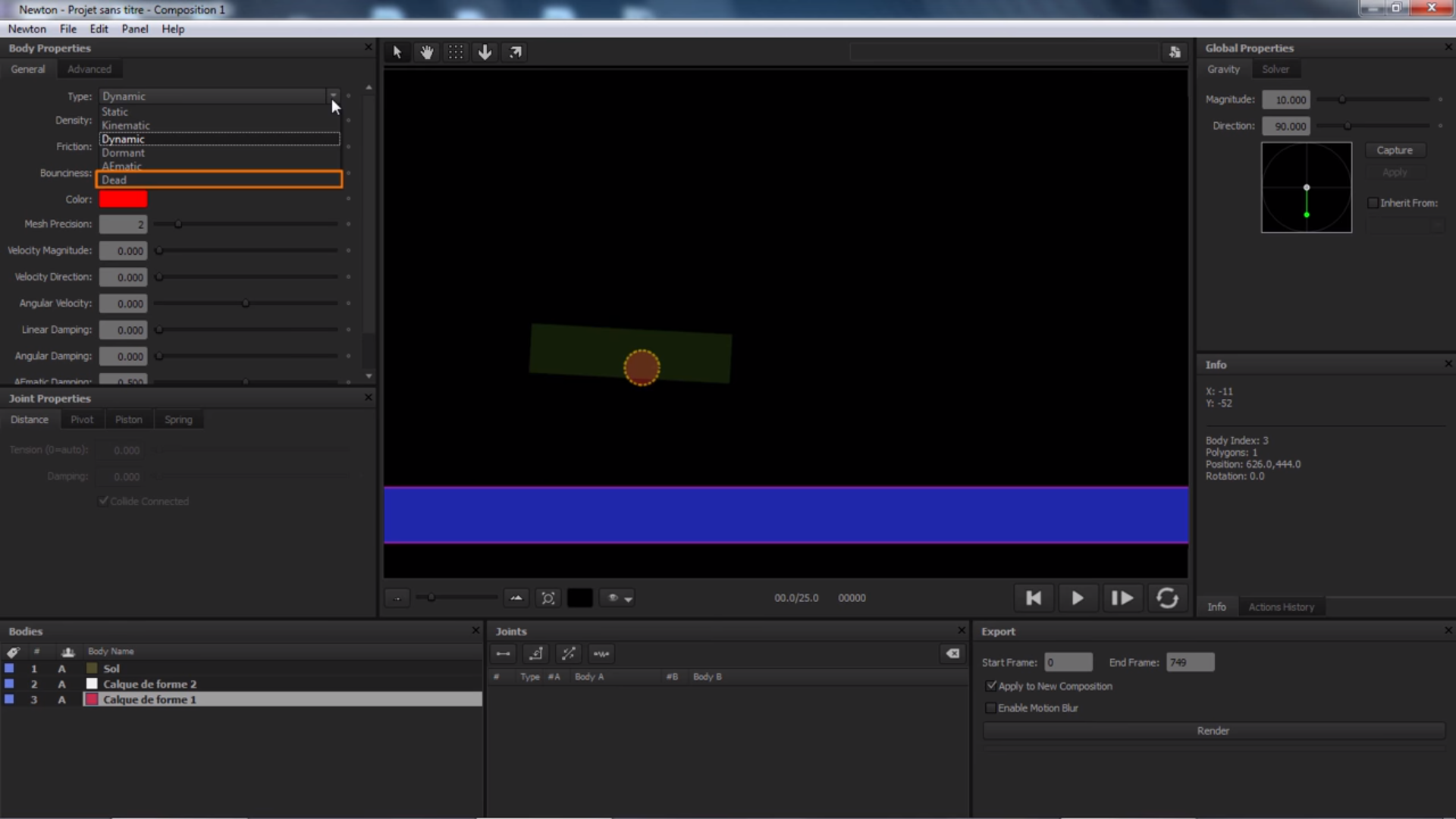

Example here in AE and newton

the death will disable parents influence of child's objects from the parent physic scene, but also from kinematics scale,position ....

In pixi, you need make a special update for stabilise the child influenced by parent.
And you will also need to deep understand how it update, that are very hard.
It not very performance friendly.
I not found other solution from my side!.


in AE with newton, you can choose what kind of parent influence you need  for your children.
Tha are very cool.

i can wait to see pixi have a similar feature for control parent influence.

Share this post


Link to post
Share on other sites

I could also keep the text apart from the object, but then I would need the screen coordinates of the object and move the text thereevery update. But the DisplayObjects have no method to get the screen coords, or I must be overlooking something...



Share this post


Link to post
Share on other sites
28 minutes ago, Fedor said:

I could also keep the text apart from the object, but then I would need the screen coordinates of the object and move the text thereevery update. But the DisplayObjects have no method to get the screen coords, or I must be overlooking something...



it work only if you now hace too mutch obj.
if you need update 200 or more obj like that, you will have a strange decal between synconise update.
You can see here a very old prototype, but if you look picture.
You will understand what can happen if you have too much obj to synchronize without the same parent.

You will have a strange picture flicking



Share this post


Link to post
Share on other sites

I'm not sure if this applies for what you're doing, but I've done

player.scale.set(3, 3)

let item = new PIXI.Sprite.fromFrame('sword.png')
player.addChild(item)
player.itemInHand = item
player.itemInHand.scale.set(1/3, 1/3)

This example is pretending that I've scaled the player artwork up 3x, and then added something called `itemInHand` to the player which I didn't want scaled up,  perhaps because I had already drawn the object large enough.

So the object is scaled up, but one its children is scaled down, just to undo the scaling. The general pattern is parent.scale.x = n; child.scale.x = 1/n; not that I've ever applied such a thing generally, only ever explicitly in corner cases. I'm also using a centered anchor (obj.anchor.set(0.5, 0.5)).

Share this post


Link to post
Share on other sites

That would be a solution, but my objects are grand-grand-grand-children of other objects so I would need to iterate through all te parent scales... I might try that.



Share this post


Link to post
Share on other sites

Sincerely if in your code you end up having a child of a parent that shouldn't inherit parent transform then it should probably not be a child of the parent in the first place. This sounds like trying to find an expensive and complex solution to what really is a logic flow to start with.

The obvious solution is this, if the parent transform should not be applied to the child then the child is with the wrong parent. Make a parent that doesn't have the problematic transform and add the child to it.

Share this post


Link to post
Share on other sites
16 minutes ago, botmaster said:

Sincerely if in your code you end up having a child of a parent that shouldn't inherit parent transform then it should probably not be a child of the parent in the first place. This sounds like trying to find an expensive and complex solution to what really is a logic flow to start with.

The obvious solution is this, if the parent transform should not be applied to the child then the child is with the wrong parent. Make a parent that doesn't have the problematic transform and add the child to it.

thats it true in some way and most context scenario.
But it could happen in a complex scenario of wanting to activate||deactivate only temporarily some specific parent inheritance.
in this context, you have no choice to create a stabilizer, which is far from being a performance friendly.

Share this post


Link to post
Share on other sites

That's kind of my point, the first thing to do should be to determine if this is that kind of complex situation where no easy solution can be found or if this is just because the user is unaware that using another parent would be a viable solution. solution.

Share this post


Link to post
Share on other sites

Animate a tree with spriteSheets its a good complexe example.
You hit the tron:  the hit afect the tron rotation and children branch

you cut the branch and hit again.
You don want roation affect the cutted branch.
But keep the scale of trhon and also the scene zoom scale..

this it juste a sample example, with spriteAnimation, but it fixed with spine2d



Share this post


Link to post
Share on other sites

@botmaster: in my case I don't think it's bad structure. The child that should remain it's own scale is a bit of text. It follows the sprite but it should not resize when the sprite resizes.

Share this post


Link to post
Share on other sites
