Babylon Headless on Server Side

[Jeedy]

Hi, I'm looking to make babylon run on server side, without a browser, to take screenshot of the 3D scene.

To achieve that I created a project with headless-gl, but I've always the same error.

Who can help me with this error, or maybe I can use another library?



Here is the error:

Babylon.js engine (v3.2.0-beta.5) launched

BJS - [16:47:09]: Unable to compile effect:

BJS - [16:47:09]: Uniforms:  world, view, viewProjection, vEyePosition, vLightsType, vAmbientColor, vDiffuseColor, vSpecularColor, vEmissiveColor, vFogInfos, vFogColor, pointSize, vDiffuseInfos, vAmbientInfos, vOpacityInfos, vReflectionInfos, vEmissiveInfos, vSpecularInfos, vBumpInfos, vLightmapInfos, vRefractionInfos, mBones, vClipPlane, diffuseMatrix, ambientMatrix, opacityMatrix, reflectionMatrix, emissiveMatrix, specularMatrix, bumpMatrix, normalMatrix, lightmapMatrix, refractionMatrix, diffuseLeftColor, diffuseRightColor, opacityParts, reflectionLeftColor, reflectionRightColor, emissiveLeftColor, emissiveRightColor, refractionLeftColor, refractionRightColor, vReflectionPosition, vReflectionSize, logarithmicDepthConstant, vTangentSpaceParams, diffuseSampler, ambientSampler, opacitySampler, reflectionCubeSampler, reflection2DSampler, emissiveSampler, specularSampler, bumpSampler, lightmapSampler, refractionCubeSampler, refraction2DSampler

and the code:

package.json dependencies:

"dependencies": {

"babylonjs": "^3.2.0-beta.5",

"gl": "^4.0.4",

"jsdom-global": "^3.0.2",

},



scene.js

require('jsdom-global')()

var gl = require('gl')(400,400); //headless-gl



var BABYLON = require("babylonjs");

var mycanvas = {

getContext: () => gl,

addEventListener: function () { }

};



var engine = new BABYLON.Engine(mycanvas, true);

var scene = new BABYLON.Scene(engine);

var box = BABYLON.MeshBuilder.CreateBox('box', { size: 20 }, scene)

var camera = new BABYLON.FreeCamera('camera', BABYLON.Vector3.Zero(), scene);

var ground = BABYLON.Mesh.CreateGround('ground', 10, 10, 20, this.scene);

scene.render()

[Guest]

Can you give us the entire error log?

[Jeedy]

Yep! Here it is!

log.txt

[Guest]

can you try to instantiate the engine with webgl2 support turned off

see Engine option parameter (disableWebGL2Support) : http://doc.babylonjs.com/api/classes/babylon.engine#constructor



[Jeedy]

Thanks, now it works,

I found that I have the same behaviour either if I put the disableWebGL2Support parameter or if I pass the gl context directly to the engine rather than pass the canvas.

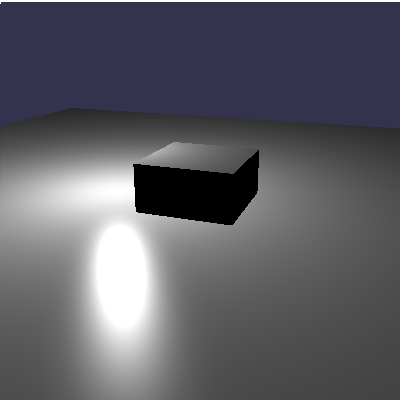

Now I can extract a PNG from the canvas, but unfortunately it seems to have a problem with the texture. Do you have an idea of what's going on? The texture seems to never be ready...

Here the code:

https://bitbucket.org/jddaigle/test_headless_gl

width = 400

height = 400

require('jsdom-global')()

var gl = require('gl')(width, height); //headless-gl

path = 'out2.png'



PNG = require('pngjs').PNG

fs = require('fs')

png = new PNG({

  width: width,

  height: height

})



var BABYLON = require("babylonjs");



var engine = new BABYLON.Engine(gl, true, {

  disableWebGL2Support: true

});

var scene = new BABYLON.Scene(engine);

var box = BABYLON.MeshBuilder.CreateBox('box', {

  size: 1

}, scene)

var camera = new BABYLON.ArcRotateCamera("Camera", Math.PI / 180 * 20, Math.PI / 180 * 70, 5, BABYLON.Vector3.Zero(), scene);

var ground = BABYLON.Mesh.CreateGround('ground', 10, 10, 20, this.scene);

var light2 = new BABYLON.PointLight("light2", new BABYLON.Vector3(0, 1, -1), scene);



// This is where you create and manipulate meshes

fs.exists('grass-old.jpg', (exists) => {

  if (exists) {

    console.log('grass-old.jpg exists')

  } else {

    console.log('grass-old.jpg exists')

  }

})



var texture = new BABYLON.Texture('grass-old.jpg', scene)

ground.diffuseTexture = texture

console.log(texture.isBlocking)

console.log(texture.isReadyOrNotBlocking())

console.log(texture.isReady())



scene.onAfterRenderObservable.add(() => {

  // create a pixel buffer of the correct size

  pixels = new Uint8Array(4 * width * height)



  // read back in the pixel buffer

  gl.readPixels(0, 0, width, height, gl.RGBA, gl.UNSIGNED_BYTE, pixels)



  // lines are vertically flipped in the FBO / need to unflip them

  var i, j

  for (j = 0; j <= height; j++) {

    for (i = 0; i <= width; i++) {

      k = j * width + i

      r = pixels[4 * k]

      g = pixels[4 * k + 1]

      b = pixels[4 * k + 2]

      a = pixels[4 * k + 3]



      m = (height - j + 1) * width + i

      png.data[4 * m] = r

      png.data[4 * m + 1] = g

      png.data[4 * m + 2] = b

      png.data[4 * m + 3] = a

    }

  }

  // Now write the png to disk

  stream = fs.createWriteStream(path)

  png.pack().pipe(stream)

})



scene.render()



"dependencies": {

"babylonjs": "3.2.0-rc.3",

"eslint": "^4.19.1",

"express": "^4.16.3",

"fs": "0.0.1-security",

"gl": "^4.0.4",

"jsdom-global": "^3.0.2",

"mock-browser": "^0.92.14",

"node-gyp": "^3.6.2",

"pngjs": "^3.3.2"

},

"devDependencies": {

"@types/node": "^9.6.5",

"jsdom": "^11.8.0"

}

[Guest]

Do you mean you are locked on gl.readPixels?

[Jeedy]

no, the image is generated, but the texture is not displayed on the mesh...



[Guest]

Are you sure it is loaded?

[Jeedy]

How can I know? I tried to check with this:

console.log(texture.isBlocking) --> true

console.log(texture.isReadyOrNotBlocking()) --> undefined

console.log(texture.isReady()) --> undefined

So I think the texture is not loading and it's waiting for something, like the browser to popups, but I am headless...  I mean Babylon is headless



[Guest]

lol...can you check console errors?

[Jeedy]

Nothing...

[Guest]

This may be a question for glHeadless team then
