Height Map changes from 1.12 to 2.0


Recommended Posts

Good evening everyone, long time no see.


I've been away for a while, and didn't made many changes to my project. The first thing I made when i get my hands on, was to update to the latest release. Everything worked fine. But the images using "BABYLON.Mesh.CreateGroundFromHeightMap" changed, and lost some colors. Can some one give me a hand on this?

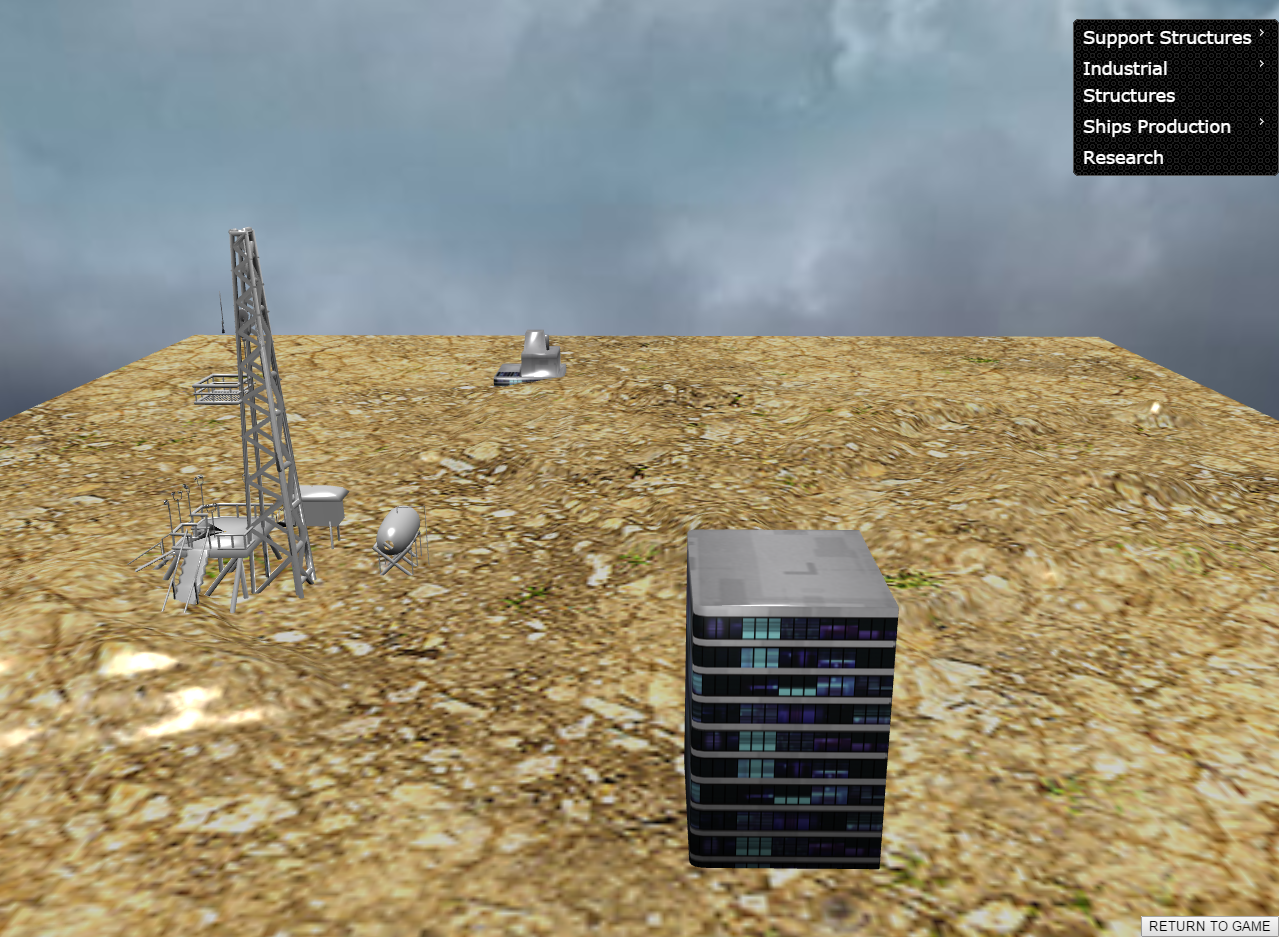

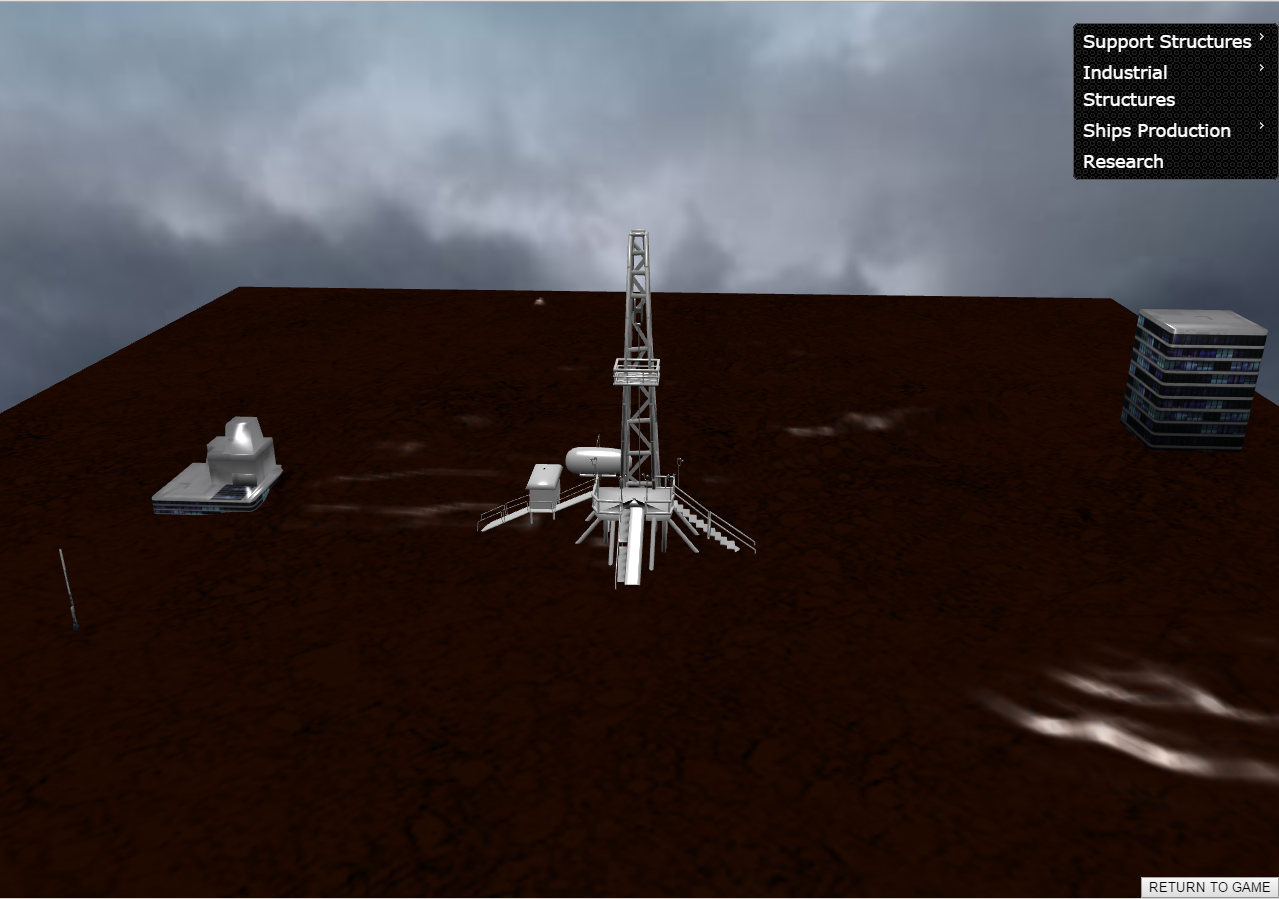

The first image is relative to v1.12, the second is relative to v2.0.


Thanks in advance.





Link to comment
Share on other sites

Any chance of seeing the code used to create the texture? Is it possible that you are setting a parameter (like diffuseColor or emissive attributes for example) that might change the texture's color properties? Might be a change in the shader and not a change in the height map code.

Link to comment
Share on other sites

No prob mate, here you go.


//Criação de chão da base.
    var gmat = new BABYLON.StandardMaterial("gmat", scenes[1]);
    gmat.diffuseTexture = new BABYLON.Texture("Textures/Ground_1.jpg", scenes[1]);
    gmat.diffuseColor = new BABYLON.Color3(.15, .05, 0);
    var ground = BABYLON.Mesh.CreateGroundFromHeightMap("ground", "Textures/heightMap.png", 200, 200, 250, 0, 6, scenes[1], false);
    ground.material = gmat;
