Phaser print issue with drawGroup


fredericlam
 Share

Recommended Posts

Hi all



I have got an issue on printing my canvas.

My web application is a simple tool to build "drawings" with backgrounds and items.

Each item can be turned (rotate) and scaled separately.



When I try to print the canvas, it appears that some of the positions and properties of each items are not kept.

My javascript code for printing is simple :

// currengBg is the backgroundvar bmd = game.add.bitmapData(currentBg.width, currentBg.height);// frameSprite is my group of itemsbmd.drawGroup(frameSprite,0,0);var bmdCanvas = bmd.canvas;var bmdDataUrl = bmdCanvas.toDataURL();// function that open a news window for printingprintCanvas(bmdDataUrl);

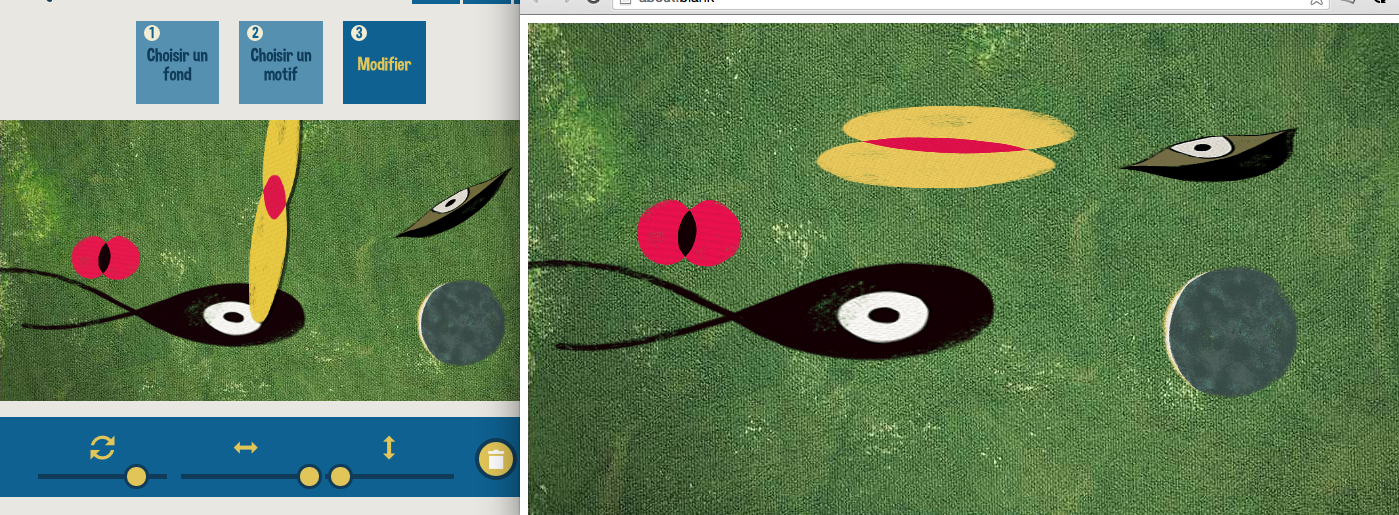

Here is the result (see attached file) :

- on the left, you can see my canvas + background and sprites

- on the right, result of drawGroup + toDataUrl() function (which is opened in a new window)



Edit :

I'm giving some details to understand the context.

- rotate and scale are applied to items, relative to my html document

- while drawGroup "translates" rotation and scale relative to the game world

Am i understanding correctly the phaser drawGroup() function ?



Please does anyone faced this problem ?



Thanks

post-13214-0-01555800-1424877347_thumb.p

Link to comment
Share on other sites

I have digged into phaser code

http://docs.phaser.io/BitmapData.js.html#sunlight-1-line-957

So it happens to the copy method in BitmapData, but I can't see anything special there

the scaling is done before de rotation, so I guess it should be copied correctly

Then everything is sent to the javascript drawImage function.

I guess this is how the draw image handles rotation that cause the problem.

Maybe there coule be a trick so that we sort of "freeze" the changes on the sprite before so that even the transformations on the sprite become the default scale and rotation... just an idea
