TilemapLayer to Sprites


Aquarius
 Share

Recommended Posts

Hello,

In my game, I created my tilemap with Tiled (like most of us).

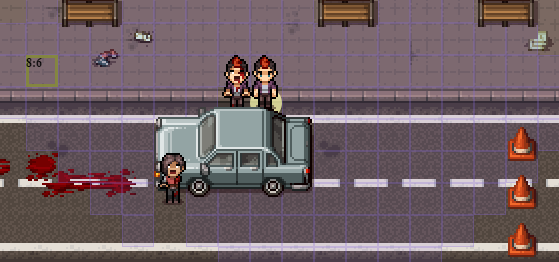

But my sprite were always in front of my scenery.  and i have place some element like cars who were supposed to hide sprites (see example.png).

The solution was to extract sprites from the layer containing these sprites and add them to sprite group, then sort this group using

this.gamegroup.sort('y', Phaser.Group.SORT_ASCENDING);

Here is the class that I made to achieve this goal.

Note that I have to get the json file describing Tilemap.

It's written in Typescript anf i use lodash, but it's easy to transpile it to plain javascript.



import * as _ from 'lodash';

export class LayerToSprites {

    public placeMapSprite(layer: Phaser.TilemapLayer, map: Phaser.Tilemap, tilemapJson: any, group: Phaser.Group, game: Phaser.Game) {

        let layerJson = this.findLayerJson('sprites', tilemapJson),
            layerData: Array<any>,
            collectedSprites: collectedSpriteFromLayer;

        if (!layerJson) {
            return; // no data found
        }

        collectedSprites = this.collectSpriteFromLayer(layerJson.data, map);

        this.updateTextureAtlasCache(collectedSprites, game);
        this.addSpritesToGroup(collectedSprites, map, game, group);

        layer.renderable = false;
    }

    private addSpritesToGroup(collectedSprites: collectedSpriteFromLayer, map: Phaser.Tilemap, game: Phaser.Game, group: Phaser.Group) {
        _(collectedSprites.tileSprites).each(tileSprite => {

            let width = map.tileWidth,
                height = map.tileHeight,
                spriteInfo = tileSprite[0],
                row = Math.floor(spriteInfo.index / 100),
                column = spriteInfo.index % 100,
                x = Math.min(column * width, 100 * width),
                y = Math.min(row * height, 100 * height),
                tileset = _(map.tilesets).find(t => t.containsTileIndex(spriteInfo.id));

            game.add.sprite(x, y, tileset.name, spriteInfo.id.toString(), group);
        });
    }

    private updateTextureAtlasCache(collectedSprites: collectedSpriteFromLayer, game: Phaser.Game) {
        collectedSprites.tileSpriteFramesData.forEach((spriteFrameData, key) => {
            game.cache.addTextureAtlas(key, '', spriteFrameData.image, spriteFrameData, Phaser.Loader.TEXTURE_ATLAS_JSON_HASH);
        });
    }

    private collectSpriteFromLayer(layerData: Array<any>, map: Phaser.Tilemap): collectedSpriteFromLayer {
        let processedTiles = new Map<number, boolean>(),
            tilewidth = map.tileWidth,
            tileheight = map.tileHeight,
            tileSprites = new Array<Array<tileInfo>>(),
            tileSpriteFramesData = new Map<string, tileAtlas>();

        _(layerData)
            .each((id, index) => {

                let spriteInfo: tileInfo,
                    currentSpriteInfo: tileInfo,
                    tileset: Phaser.Tileset,
                    collectedLayerSprite: collectedSprite;

                if (id == 0 || processedTiles.get(index)) {
                    return;
                }
                spriteInfo = {
                    index: index,
                    id: id
                };


                tileset = _(map.tilesets).find(t => t.containsTileIndex(spriteInfo.id));
                currentSpriteInfo = spriteInfo;

                collectedLayerSprite = this.collectSprite(currentSpriteInfo, layerData, tileset, processedTiles);

                this.addSpriteToLayerAtlas(collectedLayerSprite, tileSpriteFramesData, tileSprites, tileset, map);

            });
        return {
            tileSpriteFramesData: tileSpriteFramesData,
            tileSprites: tileSprites
        }
    }

    private findLayerJson(name: string, json: any) {
        return _(json.layers).find((l) => l.name == 'sprites');
    }

    private rightTileIsSameGroup = (tileset: Phaser.Tileset, spriteInfo: tileInfo, layerData: any) => {
        return layerData[spriteInfo.index + 1] == spriteInfo.id + 1
    }
    private bottomTileIsSameGroup = (tileset: Phaser.Tileset, spriteInfo: tileInfo, layerData: any) => {
        return layerData[spriteInfo.index + 100] == spriteInfo.id + tileset.columns
    }
    private collectSprite(spriteInfo: tileInfo, layerData: any, tileset: Phaser.Tileset, processedTiles: Map<number, boolean>): collectedSprite {
        let currentSpriteInfo = spriteInfo,
            currentLayerSprite = new Array<{ index: number, id: number }>(),
            continueReadingRight = true,
            continueReadingBottom = true,
            spritewidth = 0,
            spriteheight = 0;

        while (continueReadingRight) {

            spritewidth++;

            let bottomSpriteInfo: tileInfo = {
                index: currentSpriteInfo.index,
                id: layerData[currentSpriteInfo.index]
            };
            continueReadingBottom = this.bottomTileIsSameGroup(tileset, bottomSpriteInfo, layerData);

            let currentspriteheight = 0

            while (continueReadingBottom) {

                currentspriteheight++;
                currentLayerSprite.push(bottomSpriteInfo);
                processedTiles.set(bottomSpriteInfo.index, true);
                continueReadingBottom = this.bottomTileIsSameGroup(tileset, bottomSpriteInfo, layerData);
                bottomSpriteInfo = {
                    index: bottomSpriteInfo.index + 100,
                    id: layerData[bottomSpriteInfo.index + 100]
                }
            }

            if (currentspriteheight > spriteheight) {
                spriteheight = currentspriteheight
            }

            continueReadingRight = this.rightTileIsSameGroup(tileset, currentSpriteInfo, layerData);

            currentSpriteInfo = {
                index: currentSpriteInfo.index + 1,
                id: layerData[currentSpriteInfo.index + 1]
            };
        }
        return {
            layerSprite: currentLayerSprite,
            spriteheight: spriteheight,
            spritewidth: spritewidth
        };
    }

    private addSpriteToLayerAtlas(collectedLayerSprite: collectedSprite, tileSpriteFramesData: Map<string, tileAtlas>, tileSprites: Array<Array<tileInfo>>, tileset: Phaser.Tileset, map: Phaser.Tilemap) {
        let currentLayerSprite = collectedLayerSprite.layerSprite,
            tilewidth = map.tileWidth,
            tileheight = map.tileHeight;

        if (currentLayerSprite.length) {
            let tilesetRaw: any = tileset,

                currentgid = currentLayerSprite[0].id - tileset.firstgid,
                tilex = tilesetRaw.drawCoords[currentgid * 2],
                tiley = tilesetRaw.drawCoords[1 + (currentgid * 2)],
                spritewidthPixel = collectedLayerSprite.spritewidth * tilewidth,
                spriteHeightPixel = collectedLayerSprite.spriteheight * tileheight,
                spriteFrameAtlas: frameAtlas = {

                    filename: currentLayerSprite[0].id.toString(),
                    frame: {
                        x: tilex,
                        y: tiley,
                        w: spritewidthPixel,
                        h: spriteHeightPixel
                    },
                    rotated: false,
                    trimmed: false,
                    spriteSourceSize: {
                        x: tilex,
                        y: tiley,
                        w: spritewidthPixel,
                        h: spriteHeightPixel
                    },
                    sourceSize: {
                        w: spritewidthPixel,
                        h: spriteHeightPixel
                    }
                }

            if (!tileSpriteFramesData.has(tileset.name)) {

                let newFrameAtlas = {
                    frames: new Array<frameAtlas>(),
                    image: tileset.image
                };

                tileSpriteFramesData.set(tileset.name, newFrameAtlas);
            }

            tileSpriteFramesData
                .get(tileset.name)
                .frames.push(spriteFrameAtlas);

            tileSprites.push(currentLayerSprite);
        }
    }
}
interface tileInfo {
    index: number,
    id: number
}
interface frameAtlas {
    filename: string,
    frame: {
        x: number,
        y: number,
        w: number,
        h: number
    },
    rotated: false,
    trimmed: false,
    spriteSourceSize: {
        x: number,
        y: number,
        w: number,
        h: number
    },
    sourceSize: {
        w: number,
        h: number
    }
}
interface tileAtlas {
    frames: Array<frameAtlas>,
    image: any
}
interface collectedSprite {
    layerSprite: Array<tileInfo>,
    spritewidth: number,
    spriteheight: number
}
interface collectedSpriteFromLayer {
    tileSprites: Array<Array<tileInfo>>,
    tileSpriteFramesData: Map<string, tileAtlas>
}
