P2 physics overflow static body


wexing
 Share

Recommended Posts

Hi, i have the problem that body overflows another static body on first collision(gif file attached). Maybe somebody knows some solution? Thank you.



Code:



        this.physics.startSystem(Phaser.Physics.P2JS);
        this.physics.p2.restitution = 0.63;
        this.physics.p2.gravity.y = 3000;
        this.physics.p2.gravity.x = 0;

        this.ballCollisionGroup = this.game.physics.p2.createCollisionGroup();
        this.hoopCollisionGroup = this.game.physics.p2.createCollisionGroup();
        this.groundCollisionGroup = this.game.physics.p2.createCollisionGroup();
        this.ball = this.game.add.sprite(-120, 500,'ball');
        this.game.physics.p2.enable(this.ball);
        this.ball.body.setCircle(23);
        this.ball.body.setCollisionGroup(this.ballCollisionGroup);
        this.ball.body.collides([this.hoopCollisionGroup, this.groundCollisionGroup]);
        this.ball.body.debug = true;


        this.hoop_left = this.game.add.sprite(565, 294,'rect');
        this.game.physics.p2.enable(this.hoop_left);
        this.hoop_left.body.setRectangle(5,10);
        this.hoop_left.body.static = true;
        this.hoop_left.body.setCollisionGroup(this.hoopCollisionGroup);
        this.hoop_left.body.collides([this.ballCollisionGroup]);
        this.hoop_left.original_key = 'hoop_left';
        this.hoop_left.body.debug = true;

        this.hoop_right = this.game.add.sprite(619, 294, 'rect');
        this.game.physics.p2.enable(this.hoop_right);
        this.hoop_right.body.setRectangle(5,10);
        this.hoop_right.body.static = true;
        this.hoop_right.body.setCollisionGroup(this.hoopCollisionGroup);
        this.hoop_right.body.collides([this.ballCollisionGroup]);
        this.hoop_right.original_key = 'hoop_right';
        this.hoop_right.body.debug = true;


         this.ball.body.velocity.x = 932;
         this.ball.body.velocity.y = -1536;
         this.ball.body.rotateLeft(300);

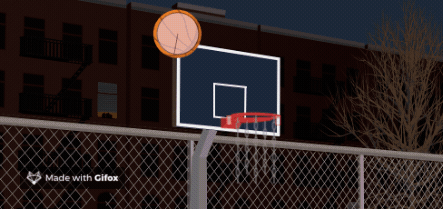

2018-01-15 10.24.12.gif

Link to comment
Share on other sites

Hi wexing. What do you mean by overflow? The ball slightly entering the right_hoop ? This might be due to tunnelling.

Quote

In a discrete dynamics world, (i.e. when not using Continuous Collision Detection), objects are moved to a new place each tick, and then collision tests are performed. This means that the object, if fast enough, can move from one side of a wall to another without any collision being registered. This is called tunnelling and is usually a bug. It can be fixed by using Continuous Collision Detection or by Stepping the World at a faster internal rate.

AFAIK, p2js only partially supports Continuous Collision Detection, if at all. Making the hoop rects slightly wider, will help -  https://jsfiddle.net/gauravdixitv/cb0z6yb7/

Link to comment
Share on other sites
