Transparent shape behind transparent sprite issue

[Seba]

Hello guys,

I have troubles with showing shapes that have an opacity < 1 and which are behind a sprite that also has an opacity < 1.

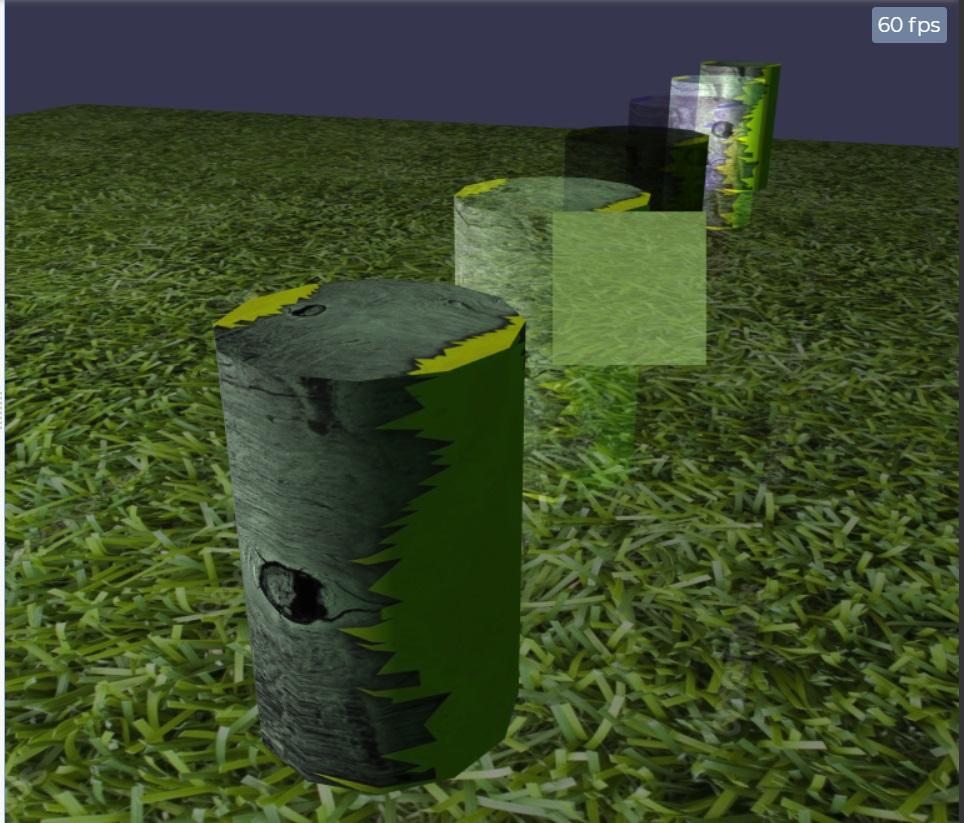

I attach a screenshot and here the playground

As you can see the shapes behind the sprite disappear

I tried differents options with material's shape such as :

• forceDepthWrite
• needDepthPrePass
• separateCullingPass
• zOffset

But nothing works, and on the Sprite side we don't have a lot of parameters to play with. I wonder if it's not due to a kind of optimization of babylon to not drop down the render.



[Seba]

Ok I found how to fix it by using renderingGroupId parameter from the meshes and the sprite manager.

set 0 to meshes and 1 to sprite manager.

But it's not perfect, if we set the camera position under the plane (grass) we have the sprite drawn before the plane.

[Guest]

Perhaps you can use billboarding instead of sprites?

[Seba]

Hi Deltakosh,

Thanks for your reply.

Do you mean something like using a mesh instead of a sprite like a plane, then set my texture to this plane and set plane.billboardMode to  BILLBOARDMODE_ALL?

I have a lot of sprites. My project is a Map in 3D of a building let's say a shopping center and each shop is represented by a mesh in 3D and floating above a sprite which is the shop's logo.

I'm affraid that using meshes instead of sprites will drop down the rendering.

[jerome]

If you have plenty of billboarded planes, you could use a SPS : http://doc.babylonjs.com/how_to/solid_particle_system

[Seba]

Hello Jerome.

Thanks for your reply.

Ok I was really hoping to keep my sprites system, but I'll try either your solution or Deltakosh one.
