About MaterialDefines memory consumption

[BMWPilote]

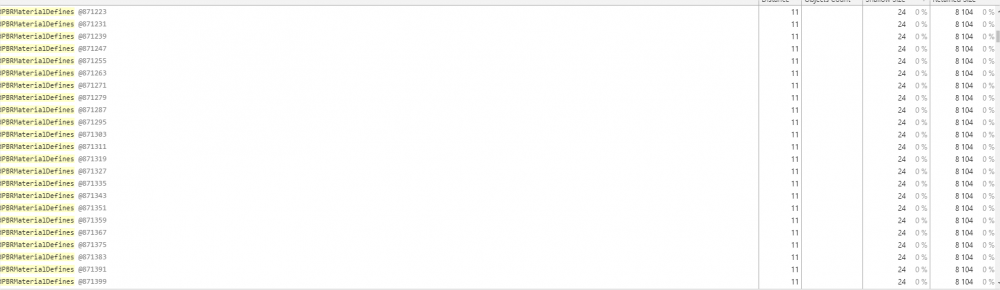

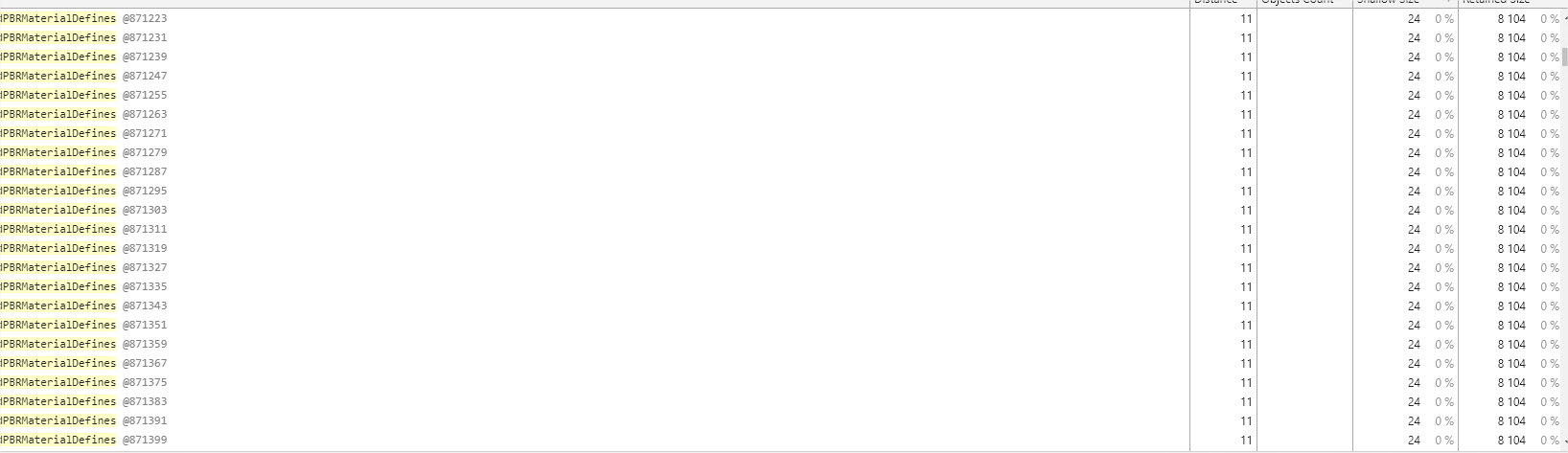

MaterialDefines is per SubMesh and if I have a lot of meshes in the Scene, the memory consumption can be crazy. For some reasons, I cannot merge my meshes (because I need to clone the picked mesh).

My scene is static and the meshes are similar. I have only two types of meshes:

1. one use only diffuse color, diffuse texture, glossiness and specular color and IBL.

2. the other one has just an extra opacity value

 So, although I have a lot of meshes, theirs defines should really almost always the same. My question is that is there any way to share the MaterialDefines?



[BMWPilote]

I thought about the worst case. Maybe I could use the pbr shader, and use ShaderMaterial with it?

[Guest]

Well you can still merge everything which will provide a large memory boost and you can just keep a disabled mesh as source for the clone.



Also, not tested but should work: just go through all submeshes and manually set the defines the one single value

[BMWPilote]

10 hours ago, Deltakosh said:

Well you can still merge everything which will provide a large memory boost and you can just keep a disabled mesh as source for the clone.



Also, not tested but should work: just go through all submeshes and manually set the defines the one single value

"you can just keep a disabled mesh as source for the clone". Could you please explain more?

Once merged. The source meshes are all removed...How can I still clone picked mesh dynamically?

[BMWPilote]

13 hours ago, Deltakosh said:

Well you can still merge everything which will provide a large memory boost and you can just keep a disabled mesh as source for the clone.



Also, not tested but should work: just go through all submeshes and manually set the defines the one single value

Unluckily, just assigning the same MaterialDefines did not work. Only some of the meshes were displayed.

[BMWPilote]

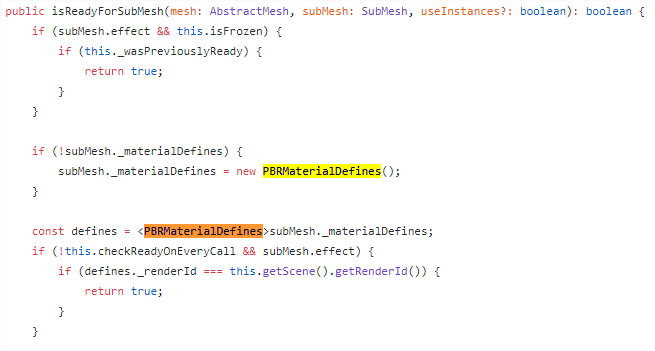

Is there anyway to separate the MaterialDefines to two parts, one per material and the other per subMesh?

[Guest]

Can you repro the test your did for sharing the defines in the PG? I'll try to see if I can help

[BMWPilote]

23 hours ago, Deltakosh said:

Can you repro the test your did for sharing the defines in the PG? I'll try to see if I can help

Actually I just copied the code of PBRBaseSimpleMaterial and instead of creating one PBRMaterialDefines for each SubMesh, I created a static PBRMaterailDefines and assign it to all the SubMeshes. Then some of the meshes could not be drawn correctly.

[Guest]

Then please share it  So we can all work on the same code base

[BMWPilote]

On 7/31/2018 at 12:38 AM, Deltakosh said:

Then please share it  So we can all work on the same code base

Finally I moved all what I don't need and now the Defines take lightly more than 300 bytes instead of 8000 bytes.

import * as BABYLON from 'babylonjs';
import * as custom_pbr_vert from '../../Graphics/Shaders/glsl/custom_pbr_vert.glsl';
import * as custom_pbr_frag from '../../Graphics/Shaders/glsl/custom_pbr_frag.glsl';
import * as MaterialUtils from '../MaterialUtils';

import { MAX_CUTPLANE_COUNT, CUTPLANES_UNIFORM_NAME, CUTPLANE_COUNT_UNIFORM_NAME } from '../MaterialCommonDefinitions';
import { ExtraDataHolder } from '../ExtraDataHolder';
import { RenderOptions } from '../../Preferences';
import { EnhancedScene } from '../../Scene/EnhancedScene';

export class SimplifiedPBRMaterialDefinesShared {
    OPACITYRGB = false;
    ALPHAFROMALBEDO = false;
    SPECULAROVERALPHA = false;
    RADIANCEOVERALPHA = false;
    ALPHAFRESNEL = false;
    LINEARALPHAFRESNEL = false;
    PREMULTIPLYALPHA = false;

    METALLICWORKFLOW = false;
    ROUGHNESSSTOREINMETALMAPALPHA = false;
    ROUGHNESSSTOREINMETALMAPGREEN = false;
    METALLNESSSTOREINMETALMAPBLUE = false;
    AOSTOREINMETALMAPRED = false;
    ENVIRONMENTBRDF = false;

    USEPHYSICALLIGHTFALLOFF = false;
    TWOSIDEDLIGHTING = false;
    SHADOWFLOAT = false;

    FORCENORMALFORWARD = false;

    MICROSURFACEFROMREFLECTIVITYMAP = false;
    MICROSURFACEAUTOMATIC = false;
    LODBASEDMICROSFURACE = false;

    REFLECTION = false;
    REFLECTIONMAP_3D = false;
    REFLECTIONMAP_SPHERICAL = false;
    REFLECTIONMAP_PLANAR = false;
    REFLECTIONMAP_CUBIC = false;

    USE_LOCAL_REFLECTIONMAP_CUBIC = false;
    REFLECTIONMAP_PROJECTION = false;
    REFLECTIONMAP_SKYBOX = false;
    REFLECTIONMAP_EXPLICIT = false;
    REFLECTIONMAP_EQUIRECTANGULAR = false;
    REFLECTIONMAP_EQUIRECTANGULAR_FIXED = false;
    REFLECTIONMAP_MIRROREDEQUIRECTANGULAR_FIXED = false;
    INVERTCUBICMAP = false;
    USESPHERICALFROMREFLECTIONMAP = false;
    USESPHERICALINVERTEX = false;
    REFLECTIONMAP_OPPOSITEZ = false;
    LODINREFLECTIONALPHA = false;
    GAMMAREFLECTION = false;

    CUTPLANE = false;
    MAX_CUTPLANE_COUNT = MAX_CUTPLANE_COUNT;
}

export class SimplifiedPBRMaterialDefines extends BABYLON.MaterialDefines {
    PBR = true;

    MAINUV1 = false;
    MAINUV2 = false;
    UV1 = false;
    UV2 = false;

    ALBEDO = false;
    EMISSIVE = false;
    REFLECTIVITY = false;
    OPACITY = false;
    BUMP = false;

    ALBEDODIRECTUV = 0;
    EMISSIVEDIRECTUV = 0;
    REFLECTIVITYDIRECTUV = 0;
    OPACITYDIRECTUV = 0;
    BUMPDIRECTUV = 0;

    NORMAL = false;
    TANGENT = false;

    ALPHABLEND = false;

    SPECULARTERM = false;
    LOGARITHMICDEPTH = false;

    _shared: SimplifiedPBRMaterialDefinesShared;

    /**
     * Initializes the PBR Material defines.
     */
    constructor(shared: SimplifiedPBRMaterialDefinesShared) {
        super();
        this._shared = shared;
        this.rebuild();
    }

    toString(): string {
        let result = super.toString();

        let keys = Object.keys(this._shared);
        for (var index = 0; index < keys.length; index++) {
            var prop = keys[index];
            var value = (this._shared as any)[prop];
            var type = typeof value;
            switch (type) {
                case "number":
                case "string":
                    result += "#define " + prop + " " + value + "\n";
                    break;
                default:
                    if (value) {
                        result += "#define " + prop + "\n";
                    }
                    break;
            }
        }

        return result;
    }

    /**
     * Resets the PBR Material defines.
     */
    reset(): void {
        super.reset();
        this.PBR = true;
    }

    get keys(): string[] {
        return this._keys;
    }

    set keys(keys: string[]) {
        this._keys = keys;
    }
}

export abstract class SimplifiedPBRBaseSimpleMaterial extends BABYLON.PBRBaseSimpleMaterial implements ExtraDataHolder {
    protected _extraData: any;
    protected _extraDataDirty: boolean = true;
    protected _sharedDefines: SimplifiedPBRMaterialDefinesShared;

    constructor(name: string, scene: BABYLON.Scene, extraData: any) {
        super(name, scene);

        if (RenderOptions.useLogarithmicDepth) {
            this.useLogarithmicDepth = true;
        }

        let shader = BABYLON.Effect.ShadersStore['custom_pbr' + 'VertexShader'];
        if (!shader) {
            let custom_pbr_vertex_shader: string = custom_pbr_vert;
            BABYLON.Effect.ShadersStore['custom_pbr' + 'VertexShader'] = custom_pbr_vertex_shader;
        }

        shader = BABYLON.Effect.ShadersStore['custom_pbr' + 'FragmentShader'];
        if (!shader) {
            let custom_pbr_fragment_shader: string = custom_pbr_frag;
            BABYLON.Effect.ShadersStore['custom_pbr' + 'FragmentShader'] = custom_pbr_fragment_shader;
        }

        if (extraData)
            this._extraData = extraData;
        else
            this._extraData = {};

        this.onBindObservable.add(() => {
            const scene = this.getScene() as EnhancedScene;
            if (this._extraDataDirty || (scene.extraDataDirty && this.alpha < 1.0)) {
                this.onCutPlanesUpdated();
                this._extraDataDirty = false;
            }
        });

        this._extraData.textureMaps = {};

        this._sharedDefines = new SimplifiedPBRMaterialDefinesShared();
    }

    bindForSubMesh(world: BABYLON.Matrix, mesh: BABYLON.Mesh, subMesh: BABYLON.SubMesh): void {
        var scene = this.getScene();

        var defines = <SimplifiedPBRMaterialDefines>subMesh._materialDefines;
        if (!defines) {
            return;
        }

        var effect = subMesh.effect;

        if (!effect) {
            return;
        }

        this._activeEffect = effect;

        // Matrices
        this.bindOnlyWorldMatrix(world);
        let mustRebind = this._mustRebind(scene, effect, mesh.visibility);


        let reflectionTexture: BABYLON.Nullable<BABYLON.BaseTexture> = null;
        if (mustRebind) {
            this._uniformBuffer.bindToEffect(effect, "Material");

            this.bindViewProjection(effect);
            reflectionTexture = this._getReflectionTexture();

            if (!this._uniformBuffer.useUbo || !this.isFrozen || !this._uniformBuffer.isSync) {

                // Texture uniforms
                if (scene.texturesEnabled) {
                    if (this._albedoTexture && BABYLON.StandardMaterial.DiffuseTextureEnabled) {
                        this._uniformBuffer.updateFloat2("vAlbedoInfos", this._albedoTexture.coordinatesIndex, this._albedoTexture.level);
                        BABYLON.MaterialHelper.BindTextureMatrix(this._albedoTexture, this._uniformBuffer, "albedo");
                    }

                    if (this._opacityTexture && BABYLON.StandardMaterial.OpacityTextureEnabled) {
                        this._uniformBuffer.updateFloat2("vOpacityInfos", this._opacityTexture.coordinatesIndex, this._opacityTexture.level);
                        BABYLON.MaterialHelper.BindTextureMatrix(this._opacityTexture, this._uniformBuffer, "opacity");
                    }

                    if (reflectionTexture && BABYLON.StandardMaterial.ReflectionTextureEnabled) {
                        this._uniformBuffer.updateMatrix("reflectionMatrix", reflectionTexture.getReflectionTextureMatrix());
                        this._uniformBuffer.updateFloat2("vReflectionInfos", reflectionTexture.level, 0);

                        if ((<any>reflectionTexture).boundingBoxSize) {
                            let cubeTexture = <BABYLON.CubeTexture>reflectionTexture;

                            this._uniformBuffer.updateVector3("vReflectionPosition", cubeTexture.boundingBoxPosition);
                            this._uniformBuffer.updateVector3("vReflectionSize", cubeTexture.boundingBoxSize);
                        }

                        var polynomials = reflectionTexture.sphericalPolynomial;
                        if (defines._shared.USESPHERICALFROMREFLECTIONMAP && polynomials) {
                            this._activeEffect.setFloat3("vSphericalX", polynomials.x.x, polynomials.x.y, polynomials.x.z);
                            this._activeEffect.setFloat3("vSphericalY", polynomials.y.x, polynomials.y.y, polynomials.y.z);
                            this._activeEffect.setFloat3("vSphericalZ", polynomials.z.x, polynomials.z.y, polynomials.z.z);
                            this._activeEffect.setFloat3("vSphericalXX_ZZ", polynomials.xx.x - polynomials.zz.x,
                                polynomials.xx.y - polynomials.zz.y,
                                polynomials.xx.z - polynomials.zz.z);
                            this._activeEffect.setFloat3("vSphericalYY_ZZ", polynomials.yy.x - polynomials.zz.x,
                                polynomials.yy.y - polynomials.zz.y,
                                polynomials.yy.z - polynomials.zz.z);
                            this._activeEffect.setFloat3("vSphericalZZ", polynomials.zz.x, polynomials.zz.y, polynomials.zz.z);
                            this._activeEffect.setFloat3("vSphericalXY", polynomials.xy.x, polynomials.xy.y, polynomials.xy.z);
                            this._activeEffect.setFloat3("vSphericalYZ", polynomials.yz.x, polynomials.yz.y, polynomials.yz.z);
                            this._activeEffect.setFloat3("vSphericalZX", polynomials.zx.x, polynomials.zx.y, polynomials.zx.z);
                        }

                        this._uniformBuffer.updateFloat3("vReflectionMicrosurfaceInfos",
                            reflectionTexture.getSize().width,
                            reflectionTexture.lodGenerationScale,
                            reflectionTexture.lodGenerationOffset);
                    }

                    if (this._emissiveTexture && BABYLON.StandardMaterial.EmissiveTextureEnabled) {
                        this._uniformBuffer.updateFloat2("vEmissiveInfos", this._emissiveTexture.coordinatesIndex, this._emissiveTexture.level);
                        BABYLON.MaterialHelper.BindTextureMatrix(this._emissiveTexture, this._uniformBuffer, "emissive");
                    }

                    if (BABYLON.StandardMaterial.SpecularTextureEnabled) {
                        if (this._metallicTexture) {
                            this._uniformBuffer.updateFloat3("vReflectivityInfos", this._metallicTexture.coordinatesIndex, this._metallicTexture.level, this._ambientTextureStrength);
                            BABYLON.MaterialHelper.BindTextureMatrix(this._metallicTexture, this._uniformBuffer, "reflectivity");
                        }
                        else if (this._reflectivityTexture) {
                            this._uniformBuffer.updateFloat3("vReflectivityInfos", this._reflectivityTexture.coordinatesIndex, this._reflectivityTexture.level, 1.0);
                            BABYLON.MaterialHelper.BindTextureMatrix(this._reflectivityTexture, this._uniformBuffer, "reflectivity");
                        }

                        if (this._microSurfaceTexture) {
                            this._uniformBuffer.updateFloat2("vMicroSurfaceSamplerInfos", this._microSurfaceTexture.coordinatesIndex, this._microSurfaceTexture.level);
                            BABYLON.MaterialHelper.BindTextureMatrix(this._microSurfaceTexture, this._uniformBuffer, "microSurfaceSampler");
                        }
                    }

                    if (this._bumpTexture && scene.getEngine().getCaps().standardDerivatives && BABYLON.StandardMaterial.BumpTextureEnabled && !this._disableBumpMap) {
                        this._uniformBuffer.updateFloat3("vBumpInfos", this._bumpTexture.coordinatesIndex, this._bumpTexture.level, this._parallaxScaleBias);
                        BABYLON.MaterialHelper.BindTextureMatrix(this._bumpTexture, this._uniformBuffer, "bump");

                        if (scene._mirroredCameraPosition) {
                            this._uniformBuffer.updateFloat2("vTangentSpaceParams", this._invertNormalMapX ? 1.0 : -1.0, this._invertNormalMapY ? 1.0 : -1.0);
                        } else {
                            this._uniformBuffer.updateFloat2("vTangentSpaceParams", this._invertNormalMapX ? -1.0 : 1.0, this._invertNormalMapY ? -1.0 : 1.0);
                        }
                    }
                }

                // Colors
                if (defines._shared.METALLICWORKFLOW) {
                    BABYLON.PBRMaterial._scaledReflectivity.r = (this._metallic === undefined || this._metallic === null) ? 1 : this._metallic;
                    BABYLON.PBRMaterial._scaledReflectivity.g = (this._roughness === undefined || this._roughness === null) ? 1 : this._roughness;
                    this._uniformBuffer.updateColor4("vReflectivityColor", BABYLON.PBRMaterial._scaledReflectivity, 0);
                }
                else {
                    this._uniformBuffer.updateColor4("vReflectivityColor", this._reflectivityColor, this._microSurface);
                }

                this._uniformBuffer.updateColor3("vEmissiveColor", this._emissiveColor);
                this._uniformBuffer.updateColor3("vReflectionColor", this._reflectionColor);
                this._uniformBuffer.updateColor4("vAlbedoColor", this._albedoColor, this.alpha * mesh.visibility);


                // Misc
                this._lightingInfos.x = this._directIntensity;
                this._lightingInfos.y = this._emissiveIntensity;
                this._lightingInfos.z = this._environmentIntensity;
                this._lightingInfos.w = this._specularIntensity;

                this._uniformBuffer.updateVector4("vLightingIntensity", this._lightingInfos);
            }

            // Textures
            if (scene.texturesEnabled) {
                if (this._albedoTexture && BABYLON.StandardMaterial.DiffuseTextureEnabled) {
                    this._uniformBuffer.setTexture("albedoSampler", this._albedoTexture);
                }

                if (this._opacityTexture && BABYLON.StandardMaterial.OpacityTextureEnabled) {
                    this._uniformBuffer.setTexture("opacitySampler", this._opacityTexture);
                }

                if (reflectionTexture && BABYLON.StandardMaterial.ReflectionTextureEnabled) {
                    if (defines._shared.LODBASEDMICROSFURACE) {
                        this._uniformBuffer.setTexture("reflectionSampler", reflectionTexture);
                    }
                    else {
                        this._uniformBuffer.setTexture("reflectionSampler", reflectionTexture._lodTextureMid || reflectionTexture);
                        this._uniformBuffer.setTexture("reflectionSamplerLow", reflectionTexture._lodTextureLow || reflectionTexture);
                        this._uniformBuffer.setTexture("reflectionSamplerHigh", reflectionTexture._lodTextureHigh || reflectionTexture);
                    }
                }

                if (defines._shared.ENVIRONMENTBRDF) {
                    this._uniformBuffer.setTexture("environmentBrdfSampler", this._environmentBRDFTexture);
                }

                if (this._emissiveTexture && BABYLON.StandardMaterial.EmissiveTextureEnabled) {
                    this._uniformBuffer.setTexture("emissiveSampler", this._emissiveTexture);
                }

                if (BABYLON.StandardMaterial.SpecularTextureEnabled) {
                    if (this._metallicTexture) {
                        this._uniformBuffer.setTexture("reflectivitySampler", this._metallicTexture);
                    }
                    else if (this._reflectivityTexture) {
                        this._uniformBuffer.setTexture("reflectivitySampler", this._reflectivityTexture);
                    }

                    if (this._microSurfaceTexture) {
                        this._uniformBuffer.setTexture("microSurfaceSampler", this._microSurfaceTexture);
                    }
                }

                if (this._bumpTexture && scene.getEngine().getCaps().standardDerivatives && BABYLON.StandardMaterial.BumpTextureEnabled && !this._disableBumpMap) {
                    this._uniformBuffer.setTexture("bumpSampler", this._bumpTexture);
                }
            }

            // Colors
            scene.ambientColor.multiplyToRef(this._ambientColor, this._globalAmbientColor);

            var eyePosition = scene._forcedViewPosition ? scene._forcedViewPosition : (scene._mirroredCameraPosition ? scene._mirroredCameraPosition : (<BABYLON.Camera>scene.activeCamera).globalPosition);
            var invertNormal = (scene.useRightHandedSystem === (scene._mirroredCameraPosition != null));
            effect.setFloat4("vEyePosition",
                eyePosition.x,
                eyePosition.y,
                eyePosition.z,
                invertNormal ? -1 : 1);
            effect.setColor3("vAmbientColor", this._globalAmbientColor);
        }

        if (mustRebind || !this.isFrozen) {
            // Lights
            if (scene.lightsEnabled && !this._disableLighting) {
                BABYLON.MaterialHelper.BindLights(scene, mesh, this._activeEffect, defines, this._maxSimultaneousLights, this._usePhysicalLightFalloff);
            }

            // Log. depth
            BABYLON. MaterialHelper.BindLogDepth(defines, this._activeEffect, scene);
        }

        this._uniformBuffer.update();
        this._afterBind(mesh, this._activeEffect);
    }

    getClassName(): string {
        return 'SimplifiedPBRBaseSimpleMaterial';
    }

    get extraData(): any {
        return this._extraData;
    }

    get extraDataDirty(): boolean {
        return this._extraDataDirty;
    }

    set extraDataDirty(value: boolean) {
        this._extraDataDirty = value;
    }

    onCutPlanesUpdated(): void {
        if (this.extraData.cutPlanes) {
            MaterialUtils.updateCutPlanes(this.getEffect(), this.extraData.cutPlanes);
        }
    }

    isReadyForSubMesh(mesh: BABYLON.AbstractMesh, subMesh: BABYLON.SubMesh, useInstances?: boolean): boolean {
        if (subMesh.effect && this.isFrozen) {
            if (this._wasPreviouslyReady) {
                return true;
            }
        }

        if (!subMesh._materialDefines) {
            subMesh._materialDefines = new SimplifiedPBRMaterialDefines(this._sharedDefines);
        }

        const defines = <SimplifiedPBRMaterialDefines>subMesh._materialDefines;
        if (!this.checkReadyOnEveryCall && subMesh.effect) {
            if (defines._renderId === this.getScene().getRenderId()) {
                return true;
            }
        }

        const scene = this.getScene();
        const engine = scene.getEngine();

        if (defines._areTexturesDirty) {
            if (scene.texturesEnabled) {
                if (this._albedoTexture && BABYLON.StandardMaterial.DiffuseTextureEnabled) {
                    if (!this._albedoTexture.isReadyOrNotBlocking()) {
                        return false;
                    }
                }

                if (this._opacityTexture && BABYLON.StandardMaterial.OpacityTextureEnabled) {
                    if (!this._opacityTexture.isReadyOrNotBlocking()) {
                        return false;
                    }
                }

                var reflectionTexture = this._getReflectionTexture();
                if (reflectionTexture && BABYLON.StandardMaterial.ReflectionTextureEnabled) {
                    if (!reflectionTexture.isReadyOrNotBlocking()) {
                        return false;
                    }
                }

                if (this._emissiveTexture && BABYLON.StandardMaterial.EmissiveTextureEnabled) {
                    if (!this._emissiveTexture.isReadyOrNotBlocking()) {
                        return false;
                    }
                }

                if (BABYLON.StandardMaterial.SpecularTextureEnabled) {
                    if (this._metallicTexture) {
                        if (!this._metallicTexture.isReadyOrNotBlocking()) {
                            return false;
                        }
                    }
                    else if (this._reflectivityTexture) {
                        if (!this._reflectivityTexture.isReadyOrNotBlocking()) {
                            return false;
                        }
                    }

                    if (this._microSurfaceTexture) {
                        if (!this._microSurfaceTexture.isReadyOrNotBlocking()) {
                            return false;
                        }
                    }
                }

                if (engine.getCaps().standardDerivatives && this._bumpTexture && BABYLON.StandardMaterial.BumpTextureEnabled && !this._disableBumpMap) {
                    // Bump texture cannot be not blocking.
                    if (!this._bumpTexture.isReady()) {
                        return false;
                    }
                }

                if (this._environmentBRDFTexture && BABYLON.StandardMaterial.ReflectionTextureEnabled) {
                    // This is blocking.
                    if (!this._environmentBRDFTexture.isReady()) {
                        return false;
                    }
                }
            }
        }

        if (!engine.getCaps().standardDerivatives) {
            let bufferMesh = null;
            if (mesh.getClassName() === "InstancedMesh") {
                bufferMesh = (mesh as BABYLON.InstancedMesh).sourceMesh;
            }
            else if (mesh.getClassName() === "Mesh") {
                bufferMesh = mesh as BABYLON.Mesh;
            }

            if (bufferMesh && bufferMesh.geometry && bufferMesh.geometry.isReady() && !bufferMesh.geometry.isVerticesDataPresent(BABYLON.VertexBuffer.NormalKind)) {
                bufferMesh.createNormals(true);
                BABYLON.Tools.Warn("PBRMaterial: Normals have been created for the mesh: " + bufferMesh.name);
            }
        }

        const effect = this._prepareEnhancedEffect(mesh, defines, this.onCompiled, this.onError, useInstances);
        if (effect) {
            scene.resetCachedMaterial();
            subMesh.setEffect(effect, defines);
            this.buildUniformLayout();
        }

        if (!subMesh.effect || !subMesh.effect.isReady()) {
            return false;
        }

        defines._renderId = scene.getRenderId();
        this._wasPreviouslyReady = true;

        return true;
    }

    protected _prepareEnhancedEffect(mesh: BABYLON.AbstractMesh, defines: SimplifiedPBRMaterialDefines, onCompiled: BABYLON.Nullable<(effect: BABYLON.Effect) => void> = null, onError: BABYLON.Nullable<(effect: BABYLON.Effect, errors: string) => void> = null, useInstances: BABYLON.Nullable<boolean> = null, useClipPlane: BABYLON.Nullable<boolean> = null): BABYLON.Nullable<BABYLON.Effect> {
        this._prepareSimplifiedDefines(mesh, defines, useInstances, useClipPlane);

        if (!defines.isDirty) {
            return null;
        }

        defines.markAsProcessed();

        const scene = this.getScene();
        const engine = scene.getEngine();

        // Fallbacks
        let fallbacks = new BABYLON.EffectFallbacks();
        let fallbackRank = 0;
        if (defines._shared.USESPHERICALINVERTEX) {
            fallbacks.addFallback(fallbackRank++, 'USESPHERICALINVERTEX');
        }

        if (defines.LOGARITHMICDEPTH) {
            fallbacks.addFallback(fallbackRank, 'LOGARITHMICDEPTH');
        }

        if (defines._shared.ENVIRONMENTBRDF) {
            fallbacks.addFallback(fallbackRank++, 'ENVIRONMENTBRDF');
        }

        if (defines.TANGENT) {
            fallbacks.addFallback(fallbackRank++, 'TANGENT');
        }

        if (defines.BUMP) {
            fallbacks.addFallback(fallbackRank++, 'BUMP');
        }

        fallbackRank = BABYLON.MaterialHelper.HandleFallbacksForShadows(defines, fallbacks, this._maxSimultaneousLights, fallbackRank++);

        if (defines.SPECULARTERM) {
            fallbacks.addFallback(fallbackRank++, 'SPECULARTERM');
        }

        if (defines._shared.USESPHERICALFROMREFLECTIONMAP) {
            fallbacks.addFallback(fallbackRank++, 'USESPHERICALFROMREFLECTIONMAP');
        }

        if (defines.NORMAL) {
            fallbacks.addFallback(fallbackRank++, 'NORMAL');
        }

        if (defines.EMISSIVE) {
            fallbacks.addFallback(fallbackRank++, 'EMISSIVE');
        }

        //Attributes
        let attribs = [BABYLON.VertexBuffer.PositionKind];

        if (defines.NORMAL) {
            attribs.push(BABYLON.VertexBuffer.NormalKind);
        }

        if (defines.TANGENT) {
            attribs.push(BABYLON.VertexBuffer.TangentKind);
        }

        if (defines.UV1) {
            attribs.push(BABYLON.VertexBuffer.UVKind);
        }

        if (defines.UV2) {
            attribs.push(BABYLON.VertexBuffer.UV2Kind);
        }

        let uniforms = ['world', 'view', 'viewProjection', 'vEyePosition', 'vLightsType', 'vAmbientColor', 'vAlbedoColor', 'vReflectivityColor', 'vEmissiveColor', 'vReflectionColor',
            'vAlbedoInfos', 'vOpacityInfos', 'vReflectionInfos', 'vReflectionPosition', 'vReflectionSize', 'vEmissiveInfos', 'vReflectivityInfos',
            'vMicroSurfaceSamplerInfos', 'vBumpInfos',
            'albedoMatrix', 'opacityMatrix', 'reflectionMatrix', 'emissiveMatrix', 'reflectivityMatrix', 'normalMatrix', 'microSurfaceSamplerMatrix', 'bumpMatrix',
            'vLightingIntensity',
            'logarithmicDepthConstant',
            'vSphericalX', 'vSphericalY', 'vSphericalZ',
            'vSphericalXX', 'vSphericalYY', 'vSphericalZZ',
            'vSphericalXY', 'vSphericalYZ', 'vSphericalZX',
            'vReflectionMicrosurfaceInfos',
            'vTangentSpaceParams',
            CUTPLANE_COUNT_UNIFORM_NAME, CUTPLANES_UNIFORM_NAME
        ];

        if (this.extraData.cutPlanes.length > 0) {
            defines._shared.CUTPLANE = true;
            defines._shared.MAX_CUTPLANE_COUNT = MAX_CUTPLANE_COUNT;
        }

        let samplers = ['albedoSampler', 'reflectivitySampler', 'emissiveSampler',
            'bumpSampler', 'opacitySampler',
            'reflectionSampler', 'reflectionSamplerLow', 'reflectionSamplerHigh',
            'microSurfaceSampler', 'environmentBrdfSampler'];
        let uniformBuffers = ['Material', 'Scene'];

        BABYLON.MaterialHelper.PrepareUniformsAndSamplersList(<BABYLON.EffectCreationOptions>{
            uniformsNames: uniforms,
            uniformBuffersNames: uniformBuffers,
            samplers: samplers,
            defines: defines,
            maxSimultaneousLights: this._maxSimultaneousLights
        });

        if (!defines.keys) {
            defines.rebuild();
        }
        let join = defines.toString();
        defines.keys = undefined;

        return engine.createEffect('custom_pbr', <BABYLON.EffectCreationOptions>{
            attributes: attribs,
            uniformsNames: uniforms,
            uniformBuffersNames: uniformBuffers,
            samplers: samplers,
            defines: join,
            fallbacks: fallbacks,
            onCompiled: onCompiled,
            onError: onError,
            indexParameters: { maxSimultaneousLights: this._maxSimultaneousLights }
        }, engine);
    }

    private _prepareSimplifiedDefines(mesh: BABYLON.AbstractMesh, defines: SimplifiedPBRMaterialDefines, useInstances: BABYLON.Nullable<boolean> = null, useClipPlane: BABYLON.Nullable<boolean> = null): void {
        const scene = this.getScene();

        // Lights
        //BABYLON.MaterialHelper.PrepareDefinesForLights(scene, mesh, defines, true, this._maxSimultaneousLights, this._disableLighting);
        defines._needNormals = true;

        // Textures
        defines._shared.METALLICWORKFLOW = super.isMetallicWorkflow();
        if (defines._areTexturesDirty) {
            defines._needUVs = false;
            if (scene.texturesEnabled) {
                if (scene.getEngine().getCaps().textureLOD) {
                    defines._shared.LODBASEDMICROSFURACE = true;
                }

                if (this._albedoTexture && BABYLON.StandardMaterial.DiffuseTextureEnabled) {
                    BABYLON.MaterialHelper.PrepareDefinesForMergedUV(this._albedoTexture, defines, "ALBEDO");
                } else {
                    defines.ALBEDO = false;
                }

                if (this._opacityTexture && BABYLON.StandardMaterial.OpacityTextureEnabled) {
                    BABYLON.MaterialHelper.PrepareDefinesForMergedUV(this._opacityTexture, defines, "OPACITY");
                    defines._shared.OPACITYRGB = this._opacityTexture.getAlphaFromRGB;
                } else {
                    defines.OPACITY = false;
                }

                var reflectionTexture = this._getReflectionTexture();
                if (reflectionTexture && BABYLON.StandardMaterial.ReflectionTextureEnabled) {
                    defines._shared.REFLECTION = true;
                    defines._shared.GAMMAREFLECTION = reflectionTexture.gammaSpace;
                    defines._shared.REFLECTIONMAP_OPPOSITEZ = this.getScene().useRightHandedSystem ? !reflectionTexture.invertZ : reflectionTexture.invertZ;
                    defines._shared.LODINREFLECTIONALPHA = reflectionTexture.lodLevelInAlpha;

                    if (reflectionTexture.coordinatesMode === BABYLON.Texture.INVCUBIC_MODE) {
                        defines._shared.INVERTCUBICMAP = true;
                    }

                    defines._shared.REFLECTIONMAP_3D = reflectionTexture.isCube;

                    switch (reflectionTexture.coordinatesMode) {
                        case BABYLON.Texture.CUBIC_MODE:
                        case BABYLON.Texture.INVCUBIC_MODE:
                            defines._shared.REFLECTIONMAP_CUBIC = true;
                            defines._shared.USE_LOCAL_REFLECTIONMAP_CUBIC = (<any>reflectionTexture).boundingBoxSize ? true : false;
                            break;
                        case BABYLON.Texture.EXPLICIT_MODE:
                            defines._shared.REFLECTIONMAP_EXPLICIT = true;
                            break;
                        case BABYLON.Texture.PLANAR_MODE:
                            defines._shared.REFLECTIONMAP_PLANAR = true;
                            break;
                        case BABYLON.Texture.PROJECTION_MODE:
                            defines._shared.REFLECTIONMAP_PROJECTION = true;
                            break;
                        case BABYLON.Texture.SKYBOX_MODE:
                            defines._shared.REFLECTIONMAP_SKYBOX = true;
                            break;
                        case BABYLON.Texture.SPHERICAL_MODE:
                            defines._shared.REFLECTIONMAP_SPHERICAL = true;
                            break;
                        case BABYLON.Texture.EQUIRECTANGULAR_MODE:
                            defines._shared.REFLECTIONMAP_EQUIRECTANGULAR = true;
                            break;
                        case BABYLON.Texture.FIXED_EQUIRECTANGULAR_MODE:
                            defines._shared.REFLECTIONMAP_EQUIRECTANGULAR_FIXED = true;
                            break;
                        case BABYLON.Texture.FIXED_EQUIRECTANGULAR_MIRRORED_MODE:
                            defines._shared.REFLECTIONMAP_MIRROREDEQUIRECTANGULAR_FIXED = true;
                            break;
                    }

                    if (reflectionTexture.coordinatesMode !== BABYLON.Texture.SKYBOX_MODE) {
                        if (reflectionTexture.sphericalPolynomial) {
                            defines._shared.USESPHERICALFROMREFLECTIONMAP = true;
                            if (this._forceIrradianceInFragment || scene.getEngine().getCaps().maxVaryingVectors <= 8) {
                                defines._shared.USESPHERICALINVERTEX = false;
                            }
                            else {
                                defines._shared.USESPHERICALINVERTEX = true;
                            }
                        }
                    }
                } else {
                    defines._shared.REFLECTION = false;
                    defines._shared.REFLECTIONMAP_3D = false;
                    defines._shared.REFLECTIONMAP_SPHERICAL = false;
                    defines._shared.REFLECTIONMAP_PLANAR = false;
                    defines._shared.REFLECTIONMAP_CUBIC = false;
                    defines._shared.USE_LOCAL_REFLECTIONMAP_CUBIC = false;
                    defines._shared.REFLECTIONMAP_PROJECTION = false;
                    defines._shared.REFLECTIONMAP_SKYBOX = false;
                    defines._shared.REFLECTIONMAP_EXPLICIT = false;
                    defines._shared.REFLECTIONMAP_EQUIRECTANGULAR = false;
                    defines._shared.REFLECTIONMAP_EQUIRECTANGULAR_FIXED = false;
                    defines._shared.REFLECTIONMAP_MIRROREDEQUIRECTANGULAR_FIXED = false;
                    defines._shared.INVERTCUBICMAP = false;
                    defines._shared.USESPHERICALFROMREFLECTIONMAP = false;
                    defines._shared.USESPHERICALINVERTEX = false;
                    defines._shared.REFLECTIONMAP_OPPOSITEZ = false;
                    defines._shared.LODINREFLECTIONALPHA = false;
                    defines._shared.GAMMAREFLECTION = false;
                }

                if (this._emissiveTexture && BABYLON.StandardMaterial.EmissiveTextureEnabled) {
                    BABYLON.MaterialHelper.PrepareDefinesForMergedUV(this._emissiveTexture, defines, "EMISSIVE");
                } else {
                    defines.EMISSIVE = false;
                }

                if (BABYLON.StandardMaterial.SpecularTextureEnabled) {
                    if (this._metallicTexture) {
                        BABYLON.MaterialHelper.PrepareDefinesForMergedUV(this._metallicTexture, defines, "REFLECTIVITY");
                        defines._shared.ROUGHNESSSTOREINMETALMAPALPHA = this._useRoughnessFromMetallicTextureAlpha;
                        defines._shared.ROUGHNESSSTOREINMETALMAPGREEN = !this._useRoughnessFromMetallicTextureAlpha && this._useRoughnessFromMetallicTextureGreen;
                        defines._shared.METALLNESSSTOREINMETALMAPBLUE = this._useMetallnessFromMetallicTextureBlue;
                        defines._shared.AOSTOREINMETALMAPRED = this._useAmbientOcclusionFromMetallicTextureRed;
                    }
                    else if (this._reflectivityTexture) {
                        BABYLON.MaterialHelper.PrepareDefinesForMergedUV(this._reflectivityTexture, defines, "REFLECTIVITY");
                    } else {
                        defines.REFLECTIVITY = false;
                    }

                } else {
                    defines.REFLECTIVITY = false;
                }

                if (scene.getEngine().getCaps().standardDerivatives && this._bumpTexture && BABYLON.StandardMaterial.BumpTextureEnabled && !this._disableBumpMap) {
                    BABYLON.MaterialHelper.PrepareDefinesForMergedUV(this._bumpTexture, defines, "BUMP");
                } else {
                    defines.BUMP = false;
                }

                if (this._environmentBRDFTexture && BABYLON.StandardMaterial.ReflectionTextureEnabled) {
                    defines._shared.ENVIRONMENTBRDF = true;
                } else {
                    defines._shared.ENVIRONMENTBRDF = false;
                }

                if (this._shouldUseAlphaFromAlbedoTexture()) {
                    defines._shared.ALPHAFROMALBEDO = true;
                } else {
                    defines._shared.ALPHAFROMALBEDO = false;
                }
            }

            defines._shared.SPECULAROVERALPHA = this._useSpecularOverAlpha;

            defines._shared.USEPHYSICALLIGHTFALLOFF = this._usePhysicalLightFalloff;

            defines._shared.RADIANCEOVERALPHA = this._useRadianceOverAlpha;

            if (!this.backFaceCulling && this._twoSidedLighting) {
                defines._shared.TWOSIDEDLIGHTING = true;
            } else {
                defines._shared.TWOSIDEDLIGHTING = false;
            }

            defines._shared.PREMULTIPLYALPHA = (this.alphaMode === BABYLON.Engine.ALPHA_PREMULTIPLIED || this.alphaMode === BABYLON.Engine.ALPHA_PREMULTIPLIED_PORTERDUFF);
            defines.ALPHABLEND = this.needAlphaBlendingForMesh(mesh);
            defines._shared.ALPHAFRESNEL = this._useAlphaFresnel || this._useLinearAlphaFresnel;
            defines._shared.LINEARALPHAFRESNEL = this._useLinearAlphaFresnel;
        }


        defines._shared.FORCENORMALFORWARD = this._forceNormalForward;

        // Misc.
        this._pareDefinesForMisc(mesh, this._useLogarithmicDepth, defines);

        // Attribs
        this._prepareDefinesForAttributes(mesh, defines);
    }

    private _pareDefinesForMisc(mesh: BABYLON.AbstractMesh, useLogarithmicDepth: boolean, defines: any): void {
        if (defines._areMiscDirty) {
            defines["LOGARITHMICDEPTH"] = useLogarithmicDepth;
        }
    }

    private _prepareDefinesForAttributes(mesh: BABYLON.AbstractMesh, defines: any): boolean {
        if (!defines._areAttributesDirty && defines._needNormals === defines._normals && defines._needUVs === defines._uvs) {
            return false;
        }
        defines._normals = defines._needNormals;
        defines._uvs = defines._needUVs;
        defines["NORMAL"] = (defines._needNormals && mesh.isVerticesDataPresent(BABYLON.VertexBuffer.NormalKind));
        if (defines._needNormals && mesh.isVerticesDataPresent(BABYLON.VertexBuffer.TangentKind)) {
            defines["TANGENT"] = true;
        }
        if (defines._needUVs) {
            defines["UV1"] = mesh.isVerticesDataPresent(BABYLON.VertexBuffer.UVKind);
            defines["UV2"] = mesh.isVerticesDataPresent(BABYLON.VertexBuffer.UV2Kind);
        }
        else {
            defines["UV1"] = false;
            defines["UV2"] = false;
        }
        return true;
    }
}



[Guest]

Good job!!
