The texture is not in a right position


Kayla
 Share

Recommended Posts

Hi guys,

I am pretty new to babylonjs and javascript. I am currently working on the shirt configurator and I am facing a little issue about the UV. I exported this shirt from Marvelous Designer with unified UV and put it back in blender to export as gltf with textures.

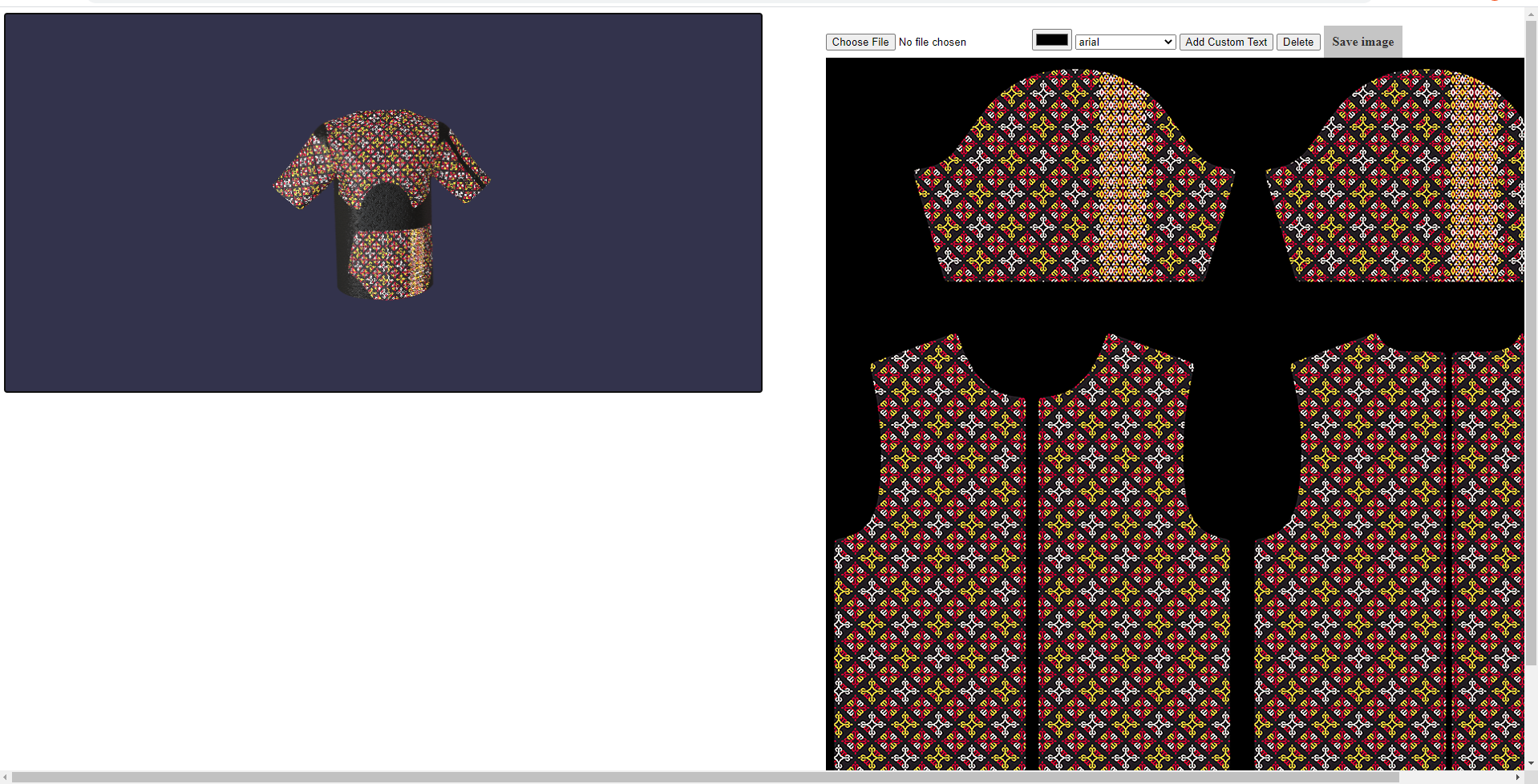

When I replaced the texture with javascript, I find out that the diffuse map is not in a right position while others are at the right place. Is there anything I can change or do to fix the problem? I try the u.Offset or v.Offset, it's isn't working.


My Code: (I use  Babylonjs with jQuery and Fabricjs)

canvas code:


        var canvasSecond = document.getElementById("canvas2");
        canvasSecond.width = 1024;
        canvasSecond.height = 1024;

        //canvas
        var canvasSec = new fabric.Canvas('canvas2');
        fabric.Image.fromURL("textures/shirt_diffuse.png"function(img2) {
            var img3 = img2.set({ selectable: false });
            canvasSec.add(img2).renderAll();

        });
.
    //after so many command and lines...
        var texture = new BABYLON.DynamicTexture("texture"canvasSecondscenetruefalse);
        var nrmtexture = new BABYLON.Texture("textures/shirt_normal.png"scenetruefalse);
        var spectexture = new BABYLON.Texture("textures/shirt_spec.png"scenetruefalse);

        BABYLON.SceneLoader.ImportMesh("shirt""gltf/""shirt.gltf"scenefunction(MeshOne) {
            scene.createDefaultCameraOrLight(truetruetrue);
            var mesh = MeshOne[1];

            var material = new BABYLON.PBRMaterial("material"scene);

            material.albedoTexture = texture;

            material.reflectionTexture = new BABYLON.HDRCubeTexture("textures/abandoned_factory_canteen_02_2k.hdr"scene218falsefalsefalsefalse);
            material.bumpTexture = nrmtexture;
            material.specularTexture = spectexture;

            material.metallic = 0;
            material.roughness = 1;
            // standardUV = options.standardUV;
            mesh.material = material;

        });
        scene.onBeforeRenderObservable.add(() => {
            texture.update();
        });
