How I can cover all around the cup with texture


SomeCoderGuy
 Share

Recommended Posts



Hello everyone ! I'm learning babylonjs with reactjs and I stuck in some trouble.

I want to texture not to repeat and just cover the cup.



I see some  people talk about the uv and I want to know more specific how to do that.



The code

import React, { useEffect, Suspense } from "react";
import * as BABYLON from "babylonjs";
import "babylonjs-loaders";

type SceneEventArgs = {
  engine: BABYLON.Engine;
  scene: BABYLON.Scene;
  canvas: HTMLCanvasElement;
};

type SceneProps = {
  engineOptions?: BABYLON.EngineOptions;
  adaptToDeviceRatio?: boolean;
  onSceneMount?: (args: SceneEventArgs) => void;
  width?: number;
  height?: number;
};

const Scene: React.FC<SceneProps & React.HTMLAttributes<HTMLCanvasElement>> = (
  props
) => {
  var scene: BABYLON.Scene;
  var engine: BABYLON.Engine;
  var canvas: HTMLCanvasElement;

  const onResizeWindow = () => {
    if (engine) {
      engine.resize();
    }
  };

  useEffect(() => {
    engine = new BABYLON.Engine(
      canvas,
      true,
      props.engineOptions,
      props.adaptToDeviceRatio
    );

    let sceneD = new BABYLON.Scene(engine);
    scene = sceneD;
    // scene.clearColor = new BABYLON.Color3.Black;

    BABYLON.SceneLoader.ImportMesh(
      "",
      "./",
      "chavena.glb",
      scene,
      function (meshes) {
        scene.createDefaultCameraOrLight(true, true, true);
        scene.createDefaultEnvironment();

        const myTexture = new BABYLON.Texture(
          "./texture1.jpg",

          scene
        );

        myTexture.uScale = -0.5;
        myTexture.vScale = 0.2;

        const materialForCup = new BABYLON.StandardMaterial("city", scene);

        materialForCup.diffuseTexture = myTexture;

        myTexture.wAng = -Math.PI / 6;

        meshes[1].material = materialForCup;
      }
    );

    if (typeof props.onSceneMount === "function") {
      props.onSceneMount({
        scene: sceneD,
        engine: engine,
        canvas: canvas,
      });
    } else {
      console.error("onSceneMount function not available");
    }

    // Resize the babylon engine when the window is resized
    window.addEventListener("resize", onResizeWindow);

    return () => {
      window.removeEventListener("resize", onResizeWindow);
    };
  }, []);

  const onCanvasLoaded = (c: HTMLCanvasElement) => {
    if (c !== null) {
      canvas = c;
    }
  };

  // 'rest' can contain additional properties that you can flow through to canvas:
  // (id, className, etc.)

  let { width, height, ...rest } = props;

  let opts: any = {};

  if (width !== undefined && height !== undefined) {
    opts.width = width;
    opts.height = height;
  }

  return (
    <canvas
      style={{ width: "100%", height: "100vh" }}
      {...opts}
      ref={onCanvasLoaded}
    />
  );
};

export default Scene;

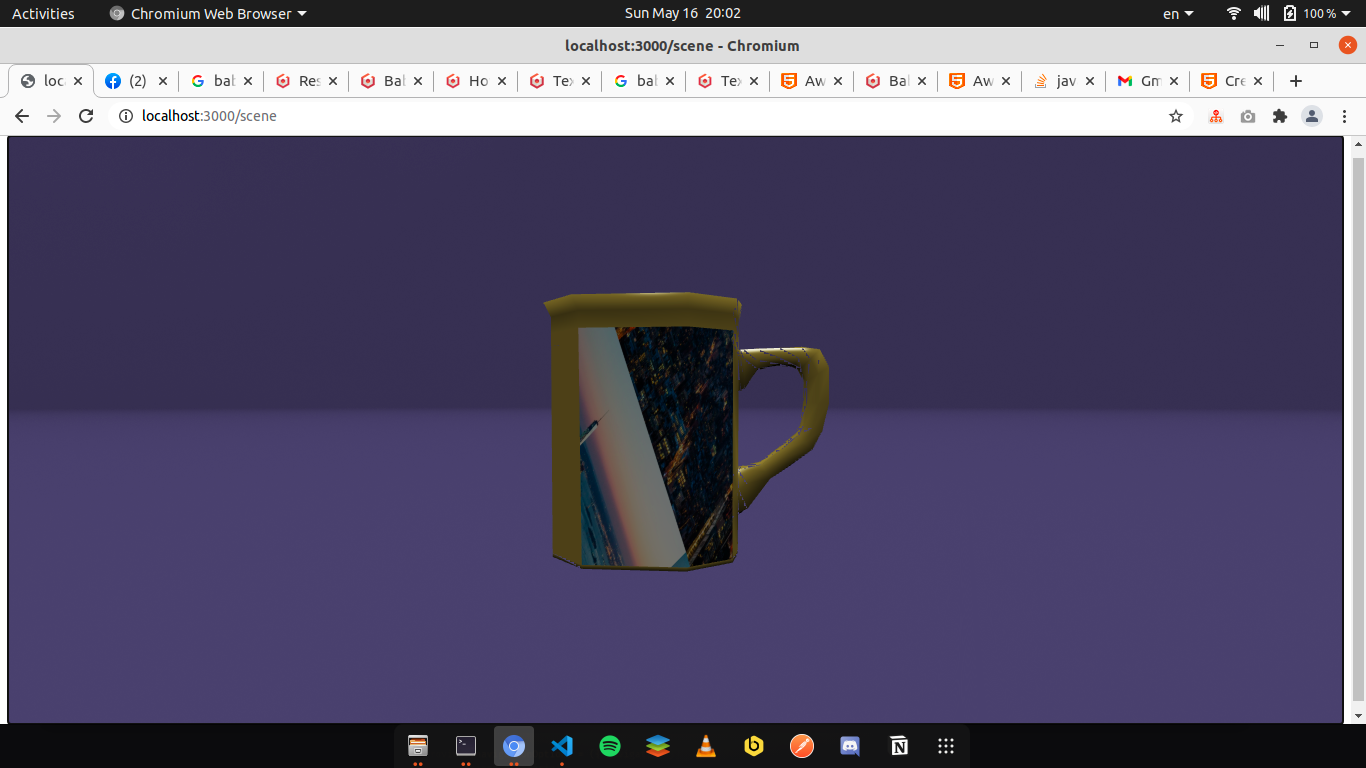

That's my result now !

338485799_Screenshotfrom2021-05-1620-02-05.thumb.png.718fb840601b69fb413c4f671e336ad2.png

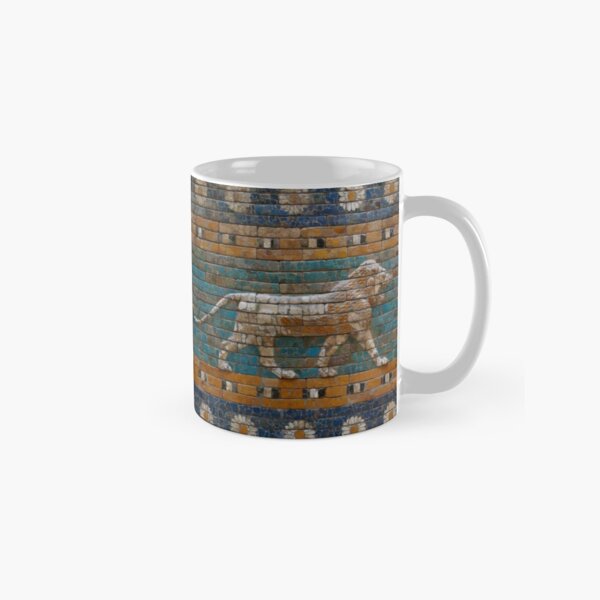

That's that I want to get




Thanks in advance !
