textureContext rgba color in fill style


Recommended Posts

Hello !


I have a plane with a DynamicTexture and I tried to do something like

textureContext.fillStyle = "rgba(255, 255, 255, 0.2)";

but it does'nt apply the alpha value of 0,2 .

Maybe I'm too much demanding but if there is a solution it would be cool !


Here are some visual examples :

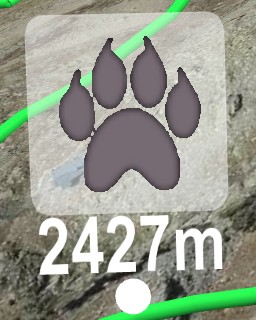

textureContext.fillStyle = "rgba(255, 255, 255, 0.5)"; // or textureContext.fillStyle = "white";

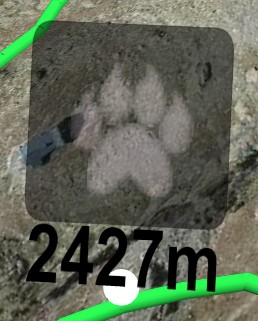

textureContext.fillStyle = "rgba(255, 255, 255, 0.2)";



Link to comment
Share on other sites

In fact the problem is I want to have a square with alpha = 0,5 for example and the text below totally opaque...

If I have both in the same textureContext and I put it in the opaciyTexture channel of the plane, it does the same like before :/

Maybe I have to put square and text in separated textures ?

 - square in opacityTexture

 - text in diffuseTexture

I'll try it

Link to comment
Share on other sites

It was my bad it works great now ! I've certainly put 0,5 instead of 0.5 or another noob fail...

Here is the code which works if somebody need it :

var textureContext = texture.getContext();// Draws background of the pictogram on the texturetextureContext.fillStyle = "rgba(255, 255, 255, 0.5)";RANDO.Utils.roundRect(textureContext, 0, 0, picto_size.width, picto_size.height, 45);....textureContext.restore();texture.update();panel.material.opacityTexture   = texture;panel.material.emissiveTexture  = texture;

Thank you very much =)

Link to comment
Share on other sites

And if I want to add a pictogram.png on it ?


- I tried to put the pictogram in the opacityTexture channel of material


--> it appears in more transparent


- I tried to put it in the diffuseTexture channel of the material


 --> it changes all in black ??


- I finally put it in a child panel that I offseted of 100 on Y axis.


--> it works but I find it not so clean in terms of code :/
