Hashasm

moving cars on roads

10 posts in this topic

HI guys,

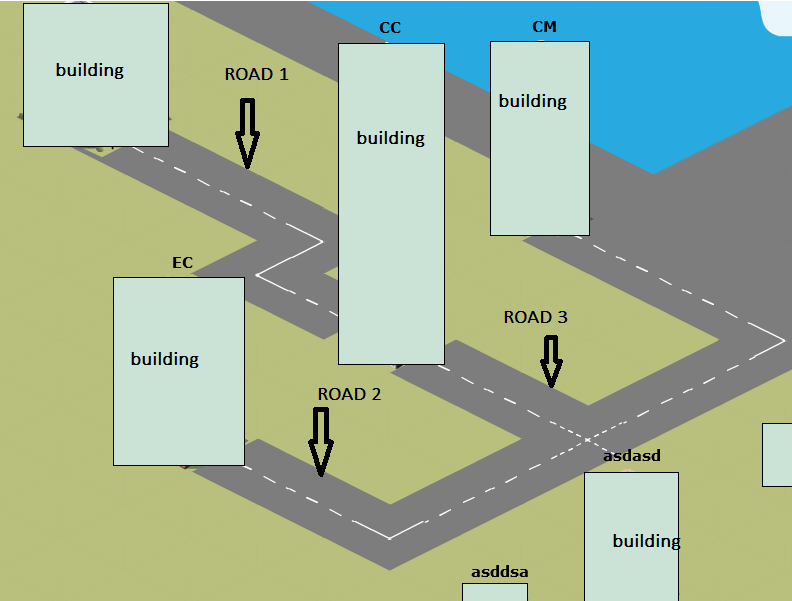

Our City game is progressing well . Now I wanted to animate cars to ply on the roads which is created by the players in the game. After creating the roads i want the car to move on the same road,  The roads are created by clicking each tile by the user. The entire road length is saved in a array. I need the cars to move from starting point of my road to end point of road where the user has plotted.


can some one tell me what method i can use to achieve this, for now I am trying with https://github.com/Kibo/melonjs-cookbook/tree/master/cookbook/patrol/js  patrol method. I am having trouble with my co-ordinates because patrol is in 2d but my game is in isometric , And If I move or pan the screen car was not sticking with my game world rather its taking the browser screen.

tried using functions like .toiso(),localToWorld() . But of no luck :(

can some one tell me is their any other way to achieve it or solution for this.

Thank you

HAPPY GAMING...:)



Share this post


Link to post
Share on other sites

Hey @Hashasm, I'd suggest to start by making your own stuff to begin with, so you fully understand the concepts behind this task.

Anyway, try to complete the following tasks:

1. Make a car go straight from Road_Piece_1 to Road_Piece_2 (basically get the coordinates and orientation of each road piece, 1 by 1, and move the car on them)
2. Make a car go straight for any amount of road pieces
3. Make a car handle single turns (either left or right)
4. Make a car decide on a crossroad which part to turn
5. Make a car go from A to B and come back forever
6. Add collision detection before trying to move onto the following road piece

Congrats! You have a simple patrol algorithm which can be tweaked and improved according to your game needs ;)

Parasyte likes this

Share this post


Link to post
Share on other sites

so far i am doing good with patrol thing but i struct at giving Velocity. car is moving on the road but its not going straight , its going in zigzag way within the road but i want it to go straight along with the road this is the code which i am using to give velocity

var dx = this._target.x - this.pos.x;
            var dy = this._target.y - this.pos.y;

    var angle = Math.atan2( dy, dx  )  ;
            //var angle = Math.atan2( dx, dy  )  ;
console.log( Math.cos( angle ));

            this.body.vel.x = Math.cos( angle )  * this.body.accel.x * me.timer.tick;
            this.body.vel.y = Math.sin( angle )  * this.body.accel.y * me.timer.tick;



//alternate way of setting velocity.......

//              this.body.vel.x = dx.clamp(-1, 1) * this.body.accel.x;
//            this.body.vel.y = dy.clamp(-1,1) * this.body.accel.y;

        }

Share this post


Link to post
Share on other sites

Is that in the update function running every frame? If things run every frame then the result of the calculation changes a bit every frame and it can end up with something that looks like a sine wave.

Share this post


Link to post
Share on other sites

As I said, if it runs every frame it will plot different paths.

I used code like yours every frame and ended up with wavy paths.

You must set the velocity only once every time it reaches a new destination.

I myself used this:



		if (this.body.vel.y === 0 && this.body.vel.x === 0) {
			var Angle = Math.atan2(target.y - this.pos.y, target.x - this.pos.x);
			var ySpeed = Math.sin(Angle) * this.speed;
			var xSpeed = Math.cos(Angle) * this.speed;
			this.body.vel.x = xSpeed * me.timer.tick;
			this.body.vel.y = ySpeed * me.timer.tick;
		}

It's basically the same as yours.

Share this post


Link to post
Share on other sites

hi @01271  can you tell me wether i am updating velocity in correct place or not



game.PlayerEntity = me.Entity.extend({
//    _patrol_isReverse: false,
     init: function(data,rand_color) {

        this.patrol_path = [];
        this.patrol_isReverse = false;
        this.patrol_isInfinite = true;


        var settings={}
        //console.log(this.gameWorldX+" "+this.clientX);
        /* var roadlayer =me.game.world.getChildByName("waterLayer")[0];
        var tile= roadlayer.getTile(this.gameWorldX, this.gameWorldY);
        console.log(tile.row+""+tile.col); */


            var vehicle_name;
//         console.log(data.frequency)
        if(data.frequency=="RealTime"){
//            vehicle_name="chopper";
               vehicle_name="scooter_"+rand_color;
//               vehicle_name="truck_"+rand_color;

        }
         else if(data.frequency=="Daily"){
//             vehicle_name="van_"+rand_color;
//             vehicle_name="mini_truck_"+rand_color;
//              vehicle_name="HORSE_CARRIAGE_"+rand_color;
              vehicle_name="chopper_"+rand_color;
//              vehicle_name="chopper_float-01";
         }
         else if (data.frequency=="Monthly"){
          vehicle_name="car_"+rand_color;
         }
         else if(data.frequency=="BiWeekly"){
            vehicle_name="HORSE_CARRIAGE";

         }
         else{

               vehicle_name="scooter_"+rand_color;

         }
           game.texture = new me.video.renderer.Texture(
             { framewidth : 48, frameheight : 48, anchorPoint : new me.Vector2d(0.5, 0.5) },
            me.loader.getImage(vehicle_name) //make this dynamic
        );

        var obj = game.texture.getAtlas() //make this dynamic

        settings.width = 0;
        settings.height =0;
    var x=data.path[0].x;
         var y= data.path[0].y;
         console.log("x"+x+" ==y=="+y);

        this._super(me.Entity, "init", [/*7324, 3702*/x,y, settings]);
   this.body.setVelocity(1.8,1.8);
        this.renderable = game.texture.createAnimationFromName([0, 1, 2, 3/*, 4, 5, 6, 7,*/ ]);
        for(var i=0;i<data.path.length;i++){
                this.patrol_addPoint( new me.Vector2d(data.path.x, data.path.y));
            console.log( new me.Vector2d(data.path[0].x, data.path[0].y))
        }
        this.renderable.addAnimation( "down", [ 2 ] );
        this.renderable.addAnimation( "left", [0] );
        this.renderable.addAnimation( "right", [3 ] );
        this.renderable.addAnimation( "up", [1] );

            this.afterPatrolFinished = function(){
            console.log("patrol finished");
                 me.game.world.removeChild(this)
            };
         this.patrol_walk();
     },
     patrol_addPoint:function(point){
        this.patrol_path.push(point);
     },
     patrol_walk:function(){
         this._isWalking = true;
        if( !this._target && this.patrol_path[ 0 ] ) {
            this._target = this.patrol_path[ 0 ];
        }
           this._setDirection(this._target.x - this.pos.x, this._target.y - this.pos.y);
        this.renderable.setCurrentAnimation( this.direction );
     },
     _setDirection: function( dx, dy ) {
         if(dx>0&&dy<0){
             this.direction = "up";
         }
         else if(dx<0&&dy>0){
             this.direction="down";
         }
         else if(dx<0&&dy<0){
             this.direction="left";
         }else{
             this.direction="right";
         }

    },
    update: function(dt) {

          if( !this._isWalking ){
            return false;
        }
        this._calculateStep();
    this.body.update(dt);
         return (this._super(me.Entity, 'update', [dt]) || this.body.vel.x !== 0 || this.body.vel.y !== 0);
    },



_calculateStep: function( ) {

          if( this._target ) {

            var dx = this._target.x - this.pos.x;
            var dy = this._target.y - this.pos.y;

            console.log("this.pos.x");            console.log(this.pos.x+"=="+this.pos.y);
            console.log(this._target);
            console.log(dx+"=="+dy);
             if( Math.abs( dx ) < this.body.maxVel.x && Math.abs( dy ) < this.body.maxVel.x ) {

                var idx = this.patrol_path.indexOf( this._target );
console.log(idx);
                //next point index
                idx++;

                if( idx == ( this.patrol_path.length ) ) {
                    delete this._target;
                    if(typeof this.afterPatrolFinished === 'function'){
                        this.afterPatrolFinished();
                    }

                     if( this.patrol_isReverse ){
                        this.patrol_path.reverse( );
                    }

                    if( this.patrol_isInfinite){
                        this.patrol_isInfinite = false;
                    }

                } else {
                    this._target = this.patrol_path[ idx ];
                    this._setDirection(this._target.x - this.pos.x, this._target.y - this.pos.y);
                    this.renderable.setCurrentAnimation( this.direction );

                }

                return;
            }
            var angle = Math.atan2( this._target.y - this.pos.y, this._target.x - this.pos.x )  ;
            this.body.vel.x = Math.cos( angle )   *  this.body.accel.x+1.9 /** me.timer.tick*/;
            this.body.vel.y = Math.sin( angle )  * this.body.accel.y*0.5 /** me.timer.tick*/;

        } else {
            this.body.vel.x = 0;
            this.body.vel.y = 0;
        }

    },
    /**
     * Stop walking
     */
    patrol_stop: function( ) {
        this._isWalking = false;
    },

    /**
     * Set reverse.
     * When is reverse, the movement is there and back
     * @param {boolean}
     */
     patrol_setReverse: function( isReverse ) {
        this.patrol_isReverse = isReverse;
    },

    /**
     * Set infinite.
     * When is infinite, the movement is in an endless loop
     * @param {boolean}
     */
    patrol_setInfinite: function( isInfinite ) {
        this.patrol_isInfinite = isInfinite;
    },

    onCollision : function (/*response, other*/) {
        return true;
    }
});

Share this post


Link to post
Share on other sites

Wow, that's a whole lot of code. You know it would be easier to debug if you uploaded the project somewhere, so that it could be run in a browser. GitHub's collaboration tools are also incredibly useful for these kinds of requests, since patches can be easily submitted as pull requests, and applied at the click of a button.

Anyway, this line is curious:

On 6/12/2017 at 8:11 AM, Hashasm said:

if( Math.abs( dx ) < this.body.maxVel.x && Math.abs( dy ) < this.body.maxVel.x )

You don't seem to set the max velocity anywhere explicitly, so that means it is set implicitly by the setVelocity call in the constructor:

On 6/12/2017 at 8:11 AM, Hashasm said:

this.body.setVelocity(1.8,1.8);

Given this constraint, it appears impossible to satisfy that first condition; the distance between the source and destination positions are very unlikely to be less than 1.8 pixels.

Share this post


Link to post
Share on other sites

hi  all,

@Parasyte i found the solution , but i dint change my code , what i did is passing the co-ordinates by converting row and col values .. but before i was passing the coordinates by using event.gameWorld ..



but i am curious to understand in depth about setting velocity and acceleration . if you have any resource for the same please share with me



thank you
