Screen Blend Mode not looking right


colourclash
 Share

Recommended Posts

Has anyone also noticed that the Screen blend mode while using the WebGL renderer looks more like an additive blend?

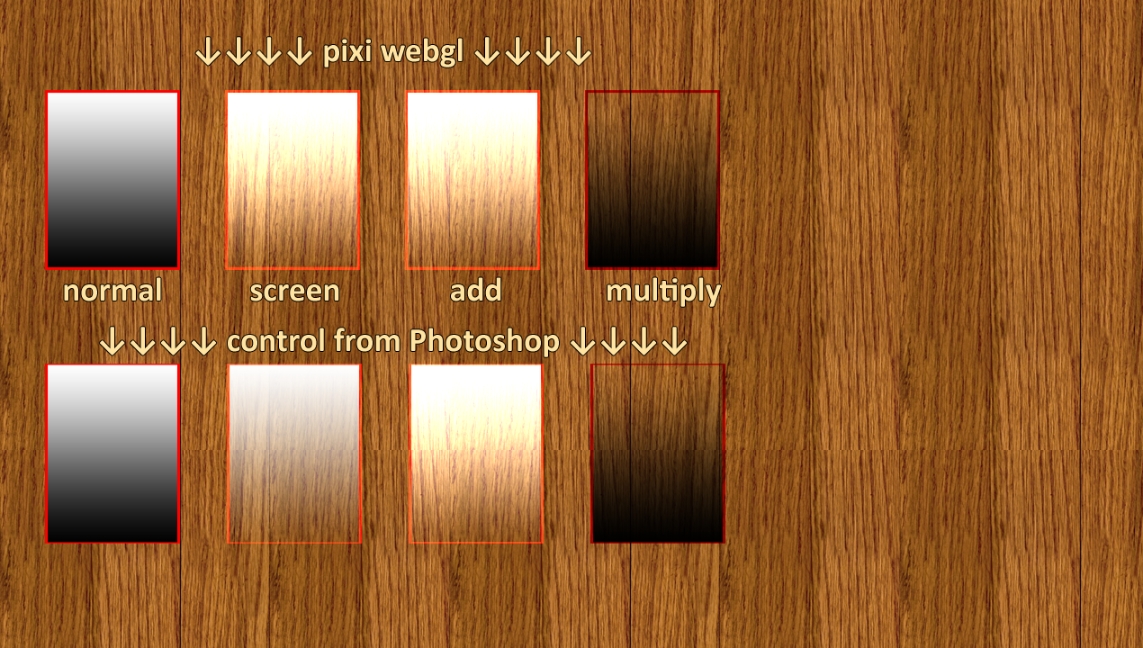

I've attached a test image to demonstrate the problem.
What I've done to fix it in the meantime (which to be honest is a blind guess) is to change this line in WebGLRenderer.js
this.blendModes[CONST.BLEND_MODES.SCREEN] = [gl.SRC_ALPHA, gl.ONE];
to this
this.blendModes[CONST.BLEND_MODES.SCREEN] = [gl.ONE, gl.ONE_MINUS_SRC_COLOR];




Link to comment
Share on other sites

And another moment of fame for me!

There're pull requests about it: https://github.com/pixijs/pixi.js/pull/2321 . It switched gl.SRC_ALPHA to gl.ONE if texture has premultiplied alpha. And second parameter is gl.ONE_MINUS_SRC_COLOR and I think it is correct.

Build is here: https://dl.dropboxusercontent.com/u/46636530/pixijs/blendMode/pixi.js

Test it please, I need a feedback.

Link to comment
Share on other sites

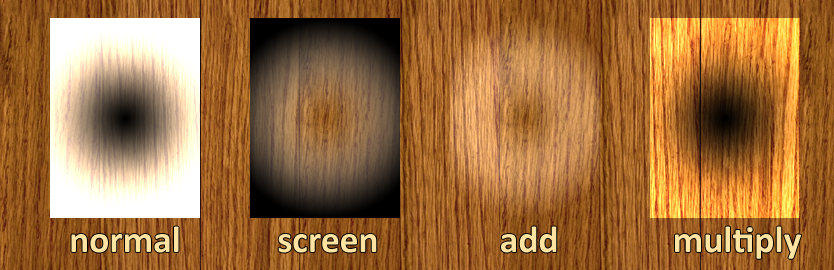

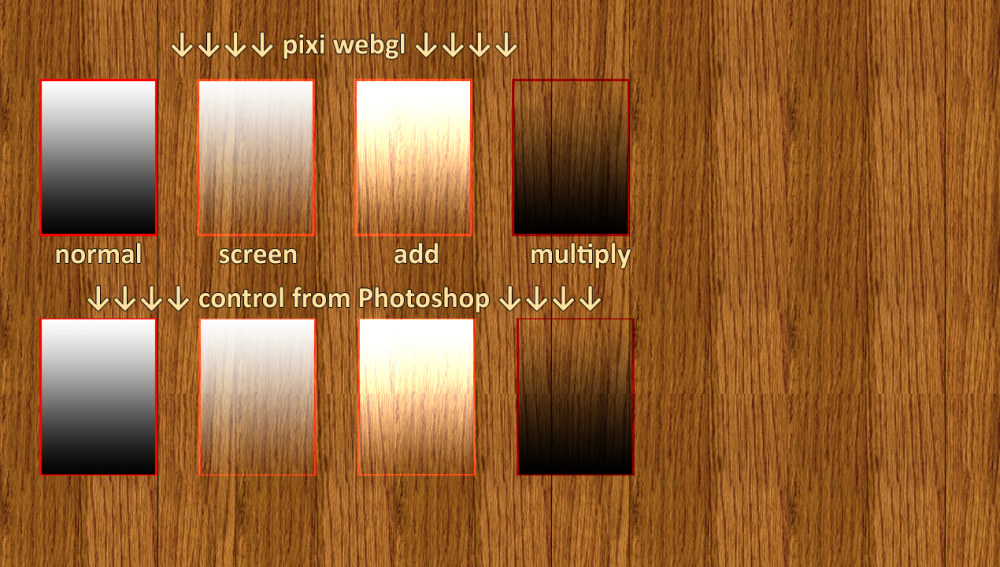

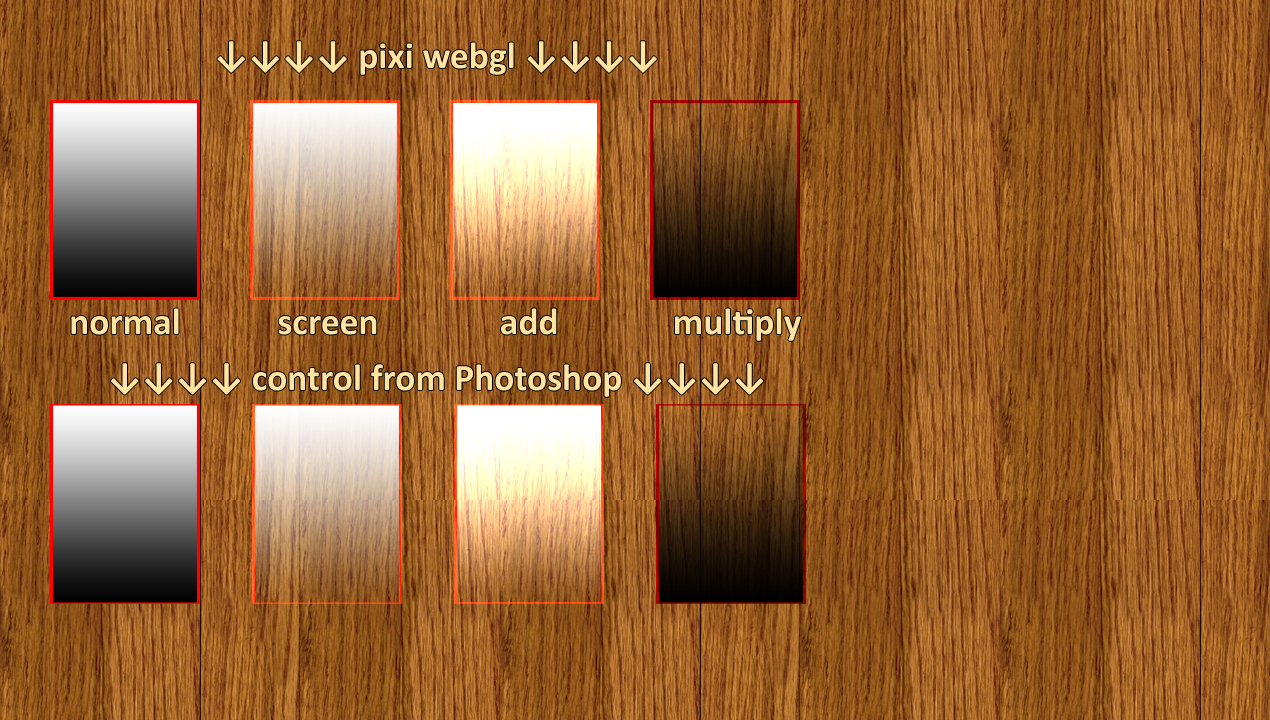

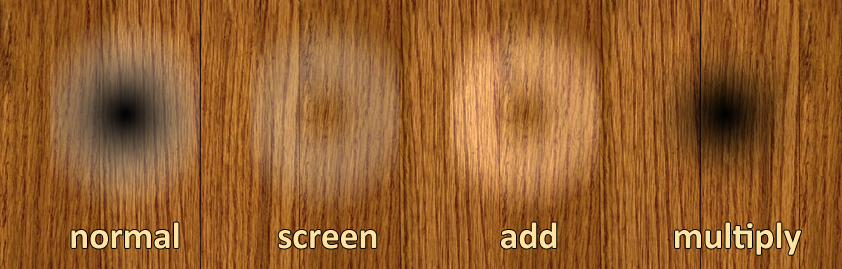

For my purposes the second output above is what I need. I did some tests with a non-premultiplied image and setting baseTexture.premultipliedAlpha to false which to my eyes didn't look the way I would expect - I normally just go with pre-multiplied images so perhaps someone who is using non-premultiplied textures can chime in here.
When switching to canvas renderer, with baseTexture.premultipliedAlpha set to true or false, they both look like the second image above.
