Low polygon tree demo (need help)

[cartman]

Hi guys, loving BabylonJS! Unfortunately i'm stuck at this tutorial: http://www.pixelcodr.com/tutos/trees/game/index.html

The tutorial was written using Babylon 1.13-debug. I tried using Babylon 2.3, and got a really weird tree. It appears that the vertices are somewhat messed up. This was the only change I made.

Any ideas on how to solve this?

Attached the pictures of the rendered trees.

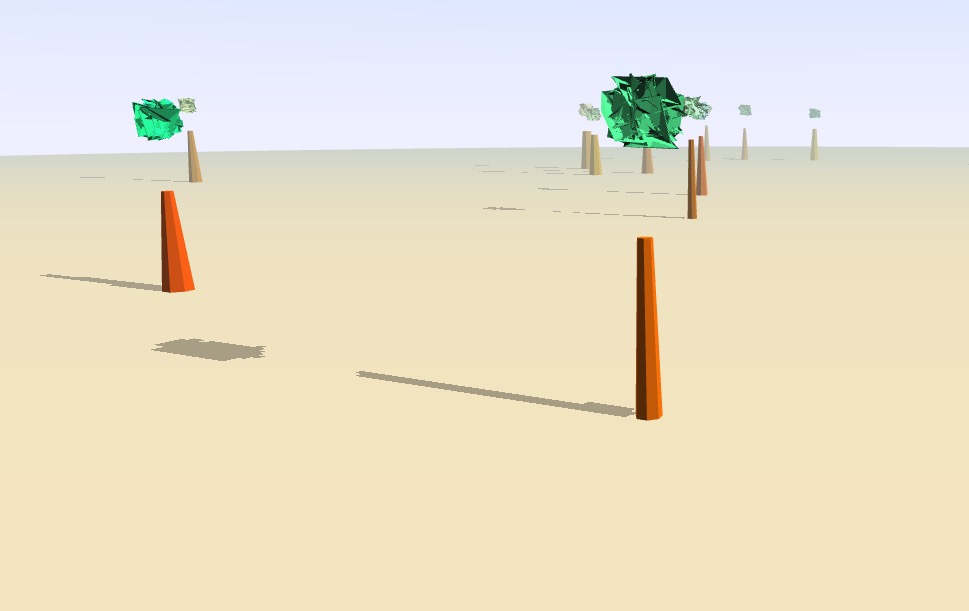

With Babylon 2.3 (messed up vertices, and somehow there's a gap between the trunk and the leaves)

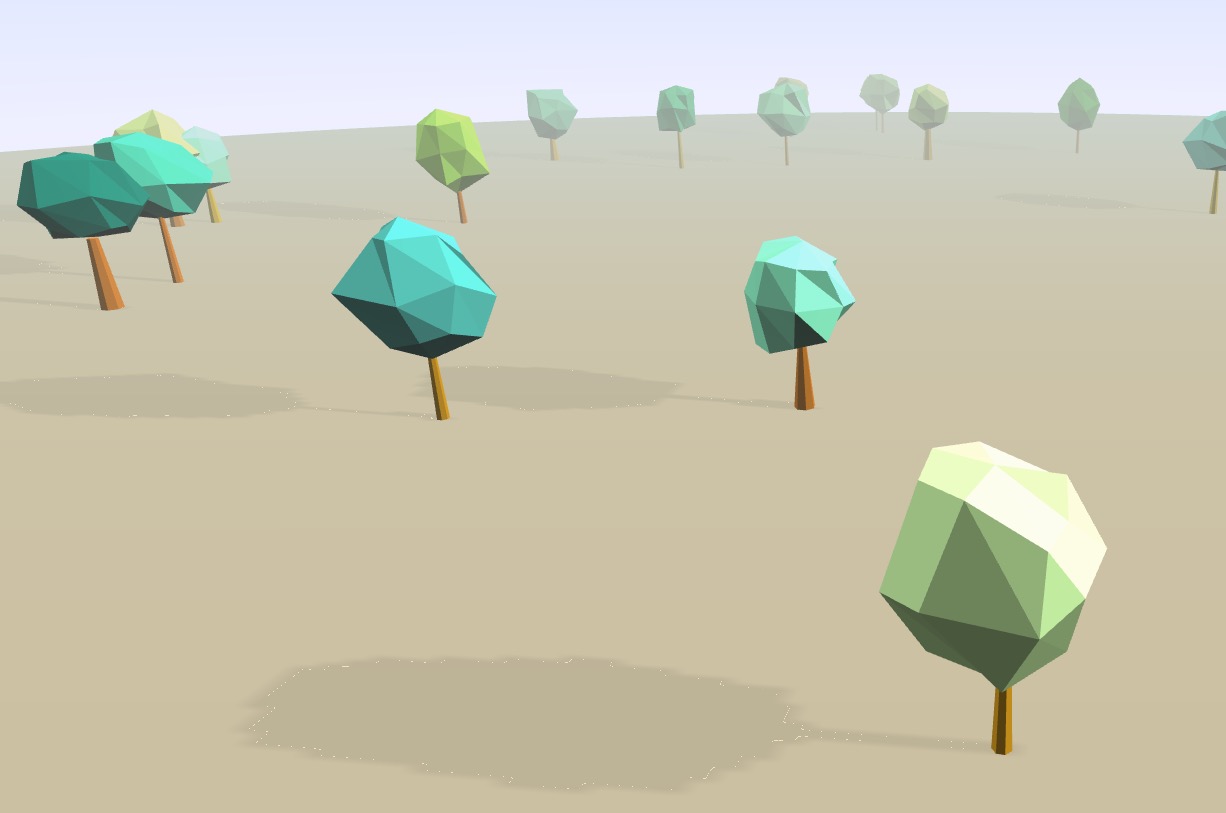

With Babylon 1.13-debug. Nice polygons.

[jerome]

if the code uses some calls to the internal methods VertexData.CreateXXX(), you should take care that, as for BJS2.3, their signatures change from VertexData.CreateXXX(param1, param2, ...) to VertexData.CreateXXX({param1: val1, param2: val2, etc})

http://doc.babylonjs.com/classes/2.3/VertexData#static-createsphere-options-rarr-vertexdata-classes-2-3-vertexdata-

https://github.com/BabylonJS/Babylon.js/blob/master/what's%20new.md  ("breaking changes" part)

[cartman]

4 hours ago, jerome said:

if the code uses some calls to the internal methods VertexData.CreateXXX(), you should take care that, as for BJS2.3, their signatures change from VertexData.CreateXXX(param1, param2, ...) to VertexData.CreateXXX({param1: val1, param2: val2, etc})

http://doc.babylonjs.com/classes/2.3/VertexData#static-createsphere-options-rarr-vertexdata-classes-2-3-vertexdata-

https://github.com/BabylonJS/Babylon.js/blob/master/what's%20new.md  ("breaking changes" part)

Thank you! Based on your tip, I use this line

var vertexData = BABYLON.VertexData.CreateSphere({"segments":2,"diameter":sizeBranch}); // compliant with Babylon 2.3

and it works!
