How to crop a 3d Model (.obj) and place another 3d model(.obj)

[VidyaBharati]

Hello,

I want to crop 3d model (.obj) and place another 3d model (.obj) there.

I have tried it with CSG but it works for only standard 3d model and i want to do it with custom models.

Can someone help me out?





[GameMonetize]

Hey



this should work from any kind of mesh: https://github.com/BabylonJS/Babylon.js/blob/master/src/Mesh/babylon.csg.ts#L285

[VidyaBharati]

Thanks deltakosh,

I tried it. its converting my mesh to CSG but the operations (union, subtract) not showing any result.

I have placed one obj on loading of scene and on drag event of second obj, placing it on first but instead subtracting or union its just getting placed on that position.

can you give me any example of operations on custom mesh?



[GameMonetize]

The thing is I see no difference (from CSG POV) between a box or a custom mesh. Everything is custom mesh

Do you mind sharing a sample repro on the Playground?

[Wingnut]

Hi guys, and welcome, @VidyaBharati!

I have a CSG playground (modified from CSG demo in docs) that might make the task easier.

http://playground.babylonjs.com/#UUXLX#21

Vidya... CSG is... different.    This playground attempts to help understand it... using good variable names and some comments.

One of the objectives of this PG demo... was to show all CSG result mesh, AND the source mesh used to create them.  If I remember correctly, this took some work.

None of the mesh in this playground scene... are set updatable = true, and I don't know if THAT parameter is important - when working with CSG.  Maybe.  Maybe not.  Perhaps none of the original mesh... needed to be updated.  (It has been a long time since I played with this demo.  I forgot everything I learned about it.)

Good luck with your two .obj-importing, and CSG playground demo.  Start with publishing your .obj files (and .mtl files?) in a public place (possibly your free github acct), and get the two objects displayed in a playground scene, yeah?

http://playground.babylonjs.com/#3TDZD#0

That's a decent .obj loading playground.  When using the playground, objectLoader.js extension is already included. Yay!

After you get your (simple?) .objects loaded and displaying,  then we will attack them with CSG... and see what trouble we can cause.

Sound good?  Got playground search, docs search, and forum search links bookmarked?   Obj-loading and CSG... here we come!

[VidyaBharati]

Hello All,

when scene loads I am loading my first obj as house and converting each mesh into CSG.

myHouse = loader.addMeshTask("myHouse", "", "objHouse/", "generic-houses-1.obj");
    myHouse.onSuccess = function(c) {
        c.loadedMeshes.forEach(function(b) {
            b.position.x = 0;
            b.position.y = 0;
            b.position.z = 0;
            b.checkCollisions = true;
            if(b.name == "Roof")
                roofCSG = BABYLON.CSG.FromMesh(b);
            else if(b.name == "Floor")
                floorCSG = BABYLON.CSG.FromMesh(b);
            else if(b.name == "Walls")
                wallsCSG = BABYLON.CSG.FromMesh(b);
        });
    };
    loader.onFinish = function() {
        engine.runRenderLoop(function () {
            scene.render();
        });
    };
    loader.load();

and on drag and canvas drop event i am dropping door on wall and want to crop it and place door there.

canvas drop event code :

       ......
            var loader1 = new BABYLON.AssetsManager(scene);
            var pickResult = scene.pick(evt.offsetX, evt.offsetY);
            if(pickResult.hit)
            {
                myDoor = loader1.addMeshTask("myDoor", "", "objDoor/", "door.obj");
                myDoor.onSuccess = function(c) {
                    c.loadedMeshes.forEach(function(b) {
                            doorCSG = BABYLON.CSG.FromMesh(b);
                            b.position.x = pickResult.pickedPoint.x;
                            b.position.z = pickResult.pickedPoint.z;
                            b.position.y = pickResult.pickedPoint.y;
                    });
                };


                loader1.onFinish = function() {
                    engine.runRenderLoop(function () {
                        scene.render();
                    });
                    mergeObj();
                };
   .....


///Function mergeObj()

        ....
            var myObjx = wallsCSG.operationOfCSG(doorCSG);
            var newMesh = myObjx.toMesh("csg", scene);
            newMesh.position = new BABYLON.Vector3(12, 50, 50);
      ....

i tried with operationOfCSG ( like  subtract, union, unionInPlace etc ) but its only getting placed on that position rather than cropping it.

Also

var newMesh = myObjx.toMesh("csg", new BABYLON.StandardMaterial("mat", scene), scene, true);

this is giving an invalid arguments error.

Please help...

[VidyaBharati]

I tried the same with box also its giving me an invalid arguments issue for the following toMesh() function...

var newMesh = myObjx.toMesh("csg", new BABYLON.StandardMaterial("mat", scene), scene, true);

i am not getting where i am wrong.....please help me out.

[GameMonetize]

Please provide a playground to repro this issue

[VidyaBharati]

Hi,

Please check this simple example with box.

http://playground.babylonjs.com/#1JWV0M

At our end its giving an Type error : invalid arguments for box as well as obj also

[GameMonetize]

Yes but this PG works

I need a PG that illustrates your issue

[VidyaBharati]

I am using the same code.

I am not getting what is issue but I am using following CSG file https://github.com/CraigFeldspar/BabylonCSG and babylon.js.



[GameMonetize]

I understand but please help us helping you. Please reproduce the bug with your files in the playground.



(by the way are you using bjs 2.5 locally?)

[VidyaBharati]

Hi,

I am checking why its giving an error at my end.

For now i got to know that In babylon.js in the following code

s.prototype.createVertexBuffer = function(e) {
            var t = this._gl.createBuffer();
             return this.bindArrayBuffer(t), e instanceof Float32Array ? this._gl.bufferData(this._gl.ARRAY_BUFFER, e, this._gl.STATIC_DRAW) : this._gl.bufferData(this._gl.ARRAY_BUFFER, new Float32Array(e), this._gl.STATIC_DRAW), this._resetVertexBufferBinding(), t.references = 1, t
        }

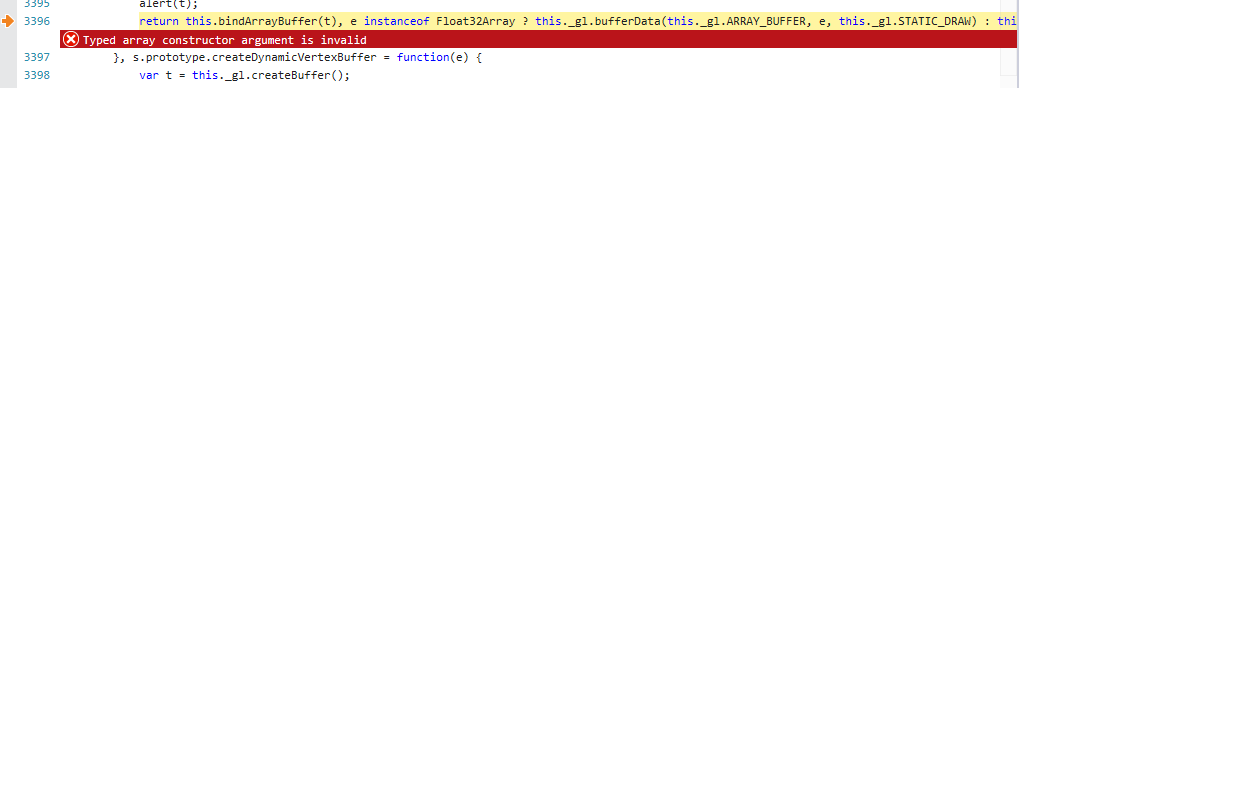

this return statement giving an error. you can see the attached file also.
