Material has un-assigned image texture

[8Observer8]

It is my first export to babylon file. I want to export the texture cube (see blender project in achive)

But I receive this message in Blender: WARNING: Material has un-assigned image texture:  "Texture" ignored



Quote

    Exporter version: 4.6.1, Blender version: 2.77 (sub 0)
========= Conversion from Blender to Babylon.js =========
    Scene settings used:
        selected layers only:  true
        flat shading entire scene:  false
        inline textures:  false
        texture directory:  E:\3DModels\TexturedCube\
    Python World class constructor completed
    processing begun of mesh:  Cube
        processing begun of Standard material:  Material.001
            WARNING: Material has un-assigned image texture:  "Texture" ignored
        num positions      :  17
        num normals        :  17
        num uvs            :  34
        num uvs2           :  0
        num colors         :  0
        num indices        :  36
    processing begun of camera (FreeCamera):  Camera
    processing begun of light (POINT):  Lamp
========= Writing of scene file started =========
========= Writing of scene file completed =========
========= end of processing =========
elapsed time:  0 min, 0.0066 secs




TexturedCube.zip

[gryff]

1 hour ago, 8Observer8 said:

But I receive this message in Blender: WARNING: Material has un-assigned image texture:  "Texture" ignored

Morning from Canada @8Observer8

Warnings may, or may not, mean you have a problem. A .babylon file has been created.

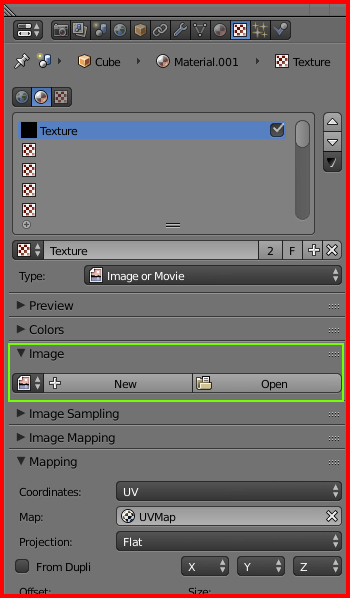

When I checked your file you have created a texture slot for the cube, but have not assigned an image to it - see the green rectangle in the image below.

Sometimes, you will get a warning if you have no camera or lights assigned to the Blender layer(s) being exported.  You may have created the camera/lights by other means (a script) and all you want is/are the geometry/meshes from Blender. It does not mean there is necessarily a serious ERROR.

As for the version of the exporter - I use ver 5.0.5.

cheers, gryff



[8Observer8]

Thank you very much! It works now  https://8observer8.github.io/BabylonJS/TexturedCube/
