wire objects and animations

[juanmajr93]

Hi all,

I am designing the subsoil of terrain in my scene. This subsoil is formed by tubes which represents water 's canal or electric 's net. Well, to allow the view under terrain I have to show it as a wire object. My first question is: how can I show only the ground object as wire mode? I have made this but changing to this mode the visualization of all elements of scene...

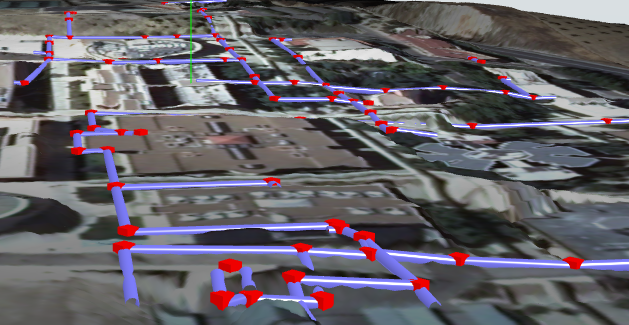

The second question is relative to animations. Inside the tubes I would like to add animation of water to get a better level of realism. Firstly, I can give some transparency to material of tubes and after i should add this animation. Do you know how can I add this animation inside of tube? In thefollow image you can see my scene to understand me better:

Thanks

[GameMonetize]

Hello

to turn on wireframe, you just need to set mesh.material.wireframe = true

For your animation you could think of a smaller tube with a texture on it and you can animate texture.uOffset to simulate the movement



[juanmajr93]

Hi again, good idea!! There would be a movement of texture to simulate the animation of water. However, I have never used the param uOffset to simulate this. Could you show me some examples of this?

Always, thanks.

[GameMonetize]

Something like that:http://www.babylonjs-playground.com/#10KKS5#1

[juanmajr93]

@Deltakosh

It is done and the result is amazing! I share with you my proyect:http://217.217.131.1:8081/subsuelo/

Another question as you can check is relative to strange hiding of boxes. They are drawn using SPS and when you are moving around scene they disappear and I dont know the reason...

[GameMonetize]

ping @jerome for sps

[jerome]

very beautifl scene.

I didn't get what disapear in your scene, but maybe is it related to the SPS visibility : http://doc.babylonjs.com/overviews/Solid_Particle_System#sps-visibility

[juanmajr93]

Perfect! @jerome I used this function: SPS.isAlwaysVisible = true; and I solved my problem



[juanmajr93]

Hi @jerome If you saw my project that I posted here, you can see I use SPS to draw boxes and tubes. Well, now I have to interact with them so I have added the follow code:

        var makeOverOut = function (mesh) {
mesh.actionManager.registerAction(new BABYLON.SetValueAction(BABYLON.ActionManager.OnPointerOutTrigger, mesh.material, "emissiveColor", mesh.material.emissiveColor));
mesh.actionManager.registerAction(new BABYLON.SetValueAction(BABYLON.ActionManager.OnPointerOverTrigger, mesh.material, "emissiveColor", BABYLON.Color3.White()));
mesh.actionManager.registerAction(new BABYLON.InterpolateValueAction(BABYLON.ActionManager.OnPointerOutTrigger, mesh, "scaling", new BABYLON.Vector3(1, 1, 1), 150));
mesh.actionManager.registerAction(new BABYLON.InterpolateValueAction(BABYLON.ActionManager.OnPointerOverTrigger, mesh, "scaling", new BABYLON.Vector3(1.1, 1.1, 1.1), 150));
        }

I call this function after sps is created....

redTuberias = sps.buildMesh();
redTuberias.material = matTuberia;
sps.setParticles();
redTuberias.actionManager = new BABYLON.ActionManager(scene);
makeOverOut(redTuberias);

However, I dont get any response when my cursor is over tubes 's net... What could be the cause?



Thanks!

[jerome]

you might set your sps.mesh as pickable or the whole sps : http://doc.babylonjs.com/overviews/Solid_Particle_System#pickable-particles

in this case, don't forget either to refresh the visible size at least once, either to enable the bbox computation in order to set the right visibility (pickability) : http://doc.babylonjs.com/overviews/Solid_Particle_System#sps-visibility

[juanmajr93]

Hi @jerome I have working about SPS and I have the next question:

1.- How can I pick a particle of SPS which are under ground? A this moment I cant pick them and I cant rotate the camera when I clic over ground...  The code that I am using is the follow:

	    scene.onPointerDown = function(evt, pickResult) {
			var faceId = pickResult.faceId;
			var idx = spsTuberias.pickedParticles[faceId].idx;
			var p = spsTuberias.particles[idx];
			p.color.r = 1;
			p.color.b = 0;
			p.color.g = 0;
			spsTuberias.setParticles();
	   };

2.- I need to do the same but when cursor is over tube. I use the follow code however, all SPS mesh is selected and I need to do this for each particle.



var makeOverOut = function (mesh) {
mesh.actionManager.registerAction(new BABYLON.SetValueAction(BABYLON.ActionManager.OnPointerOutTrigger, mesh.material, "emissiveColor", mesh.material.emissiveColor));
mesh.actionManager.registerAction(new BABYLON.SetValueAction(BABYLON.ActionManager.OnPointerOverTrigger, mesh.material, "emissiveColor", BABYLON.Color3.White()));

		}
redTuberias.actionManager = new BABYLON.ActionManager(scene);
makeOverOut(redTuberias);



You can check here: http://217.217.131.1:8081/subsuelo/

Thanks!

[jerome]

Could you reproduce it in a PG please ?, I can't download your scene ...

have you checked this : http://doc.babylonjs.com/overviews/Solid_Particle_System#pickable-particles

isPickable: true

[juanmajr93]

@jerome  yes my SPS isPickable howeber it is under the ground and when I use the method before and it seems that SPS dosnt receive the pickDown event.

Try again to this link http://217.217.131.1:8081/subsuelo/ , now is lighter

[Wingnut]

set ground.isPickable = false   ?  *shrug*  Ground is intercepting picks?  Maybe.

[jerome]

I agree with @Wingnut

[juanmajr93]

YES!! it was that. However I want when I clic outside of tubes, they must recover the material that had before. I dont know the event of unselected this tube...

[juanmajr93]

@jerome @Wingnut

Moreover, I need to add overMouse action. I have done it to mesh's box however, I don't know how can I do using SPS. I have read the manual of SPS an there isnt any method related.

[jerome]

http://www.babylonjs-playground.com/#2FPT1A#68

just search in the forum :



[juanmajr93]

Thanks @jerome because of your fast answers. This was that I need it! However with particle of sps I can only change color and I want change material of it. To show the overMouse action I would like to create an halo arround the piece changing emissiveColor property. Do you know how can I do it?

Another question is the follow: Are there any control's variable of particle to diferenciate between over or clic? Now I am using "p.picked" only...

You can look the progress of application in the same link

Thanks!

[jerome]

There is tool to control the way a particle is picked... actually, the particle pickability is just the SPS mesh pickability. So p.picked is the right way to go, like for any other meshes.

the SPS is only a mesh, so it's given only one material at once.

But you can play the particle uvs property to set what part of the texture image you want to apply to each particle.

[juanmajr93]

Okey @jerome and if you change color of a particle and later you want to reset this value. What is the value by default that had this material of SPS? I think that are1,1,1

[jerome]

Please read carefully all the SPS documentation (I spent so much time to write this) :  http://doc.babylonjs.com/overviews/Solid_Particle_System#colors-and-uvs

Particle colors are vertex color, they can mix with texture/material colors.

[juanmajr93]

yes I have made it! Thanks @jerome
