BABYLON.Material and backFaceCulling. Color problem.


Visam
 Share

Recommended Posts

Hi

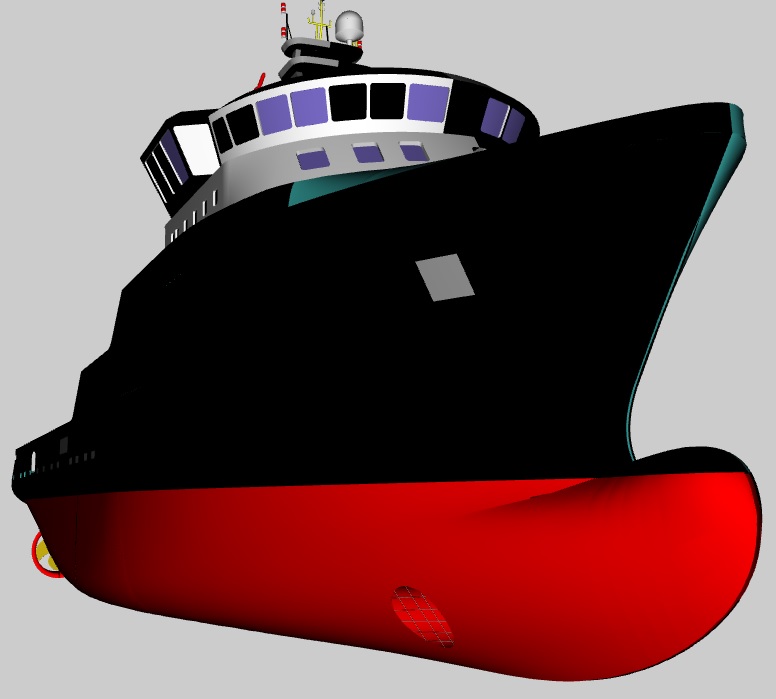

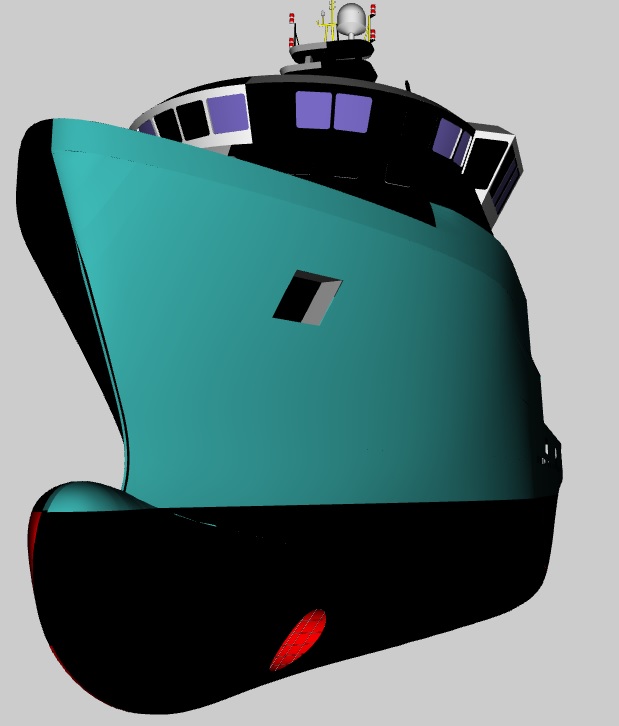

First two pictures show the model with backFaceCulling=true

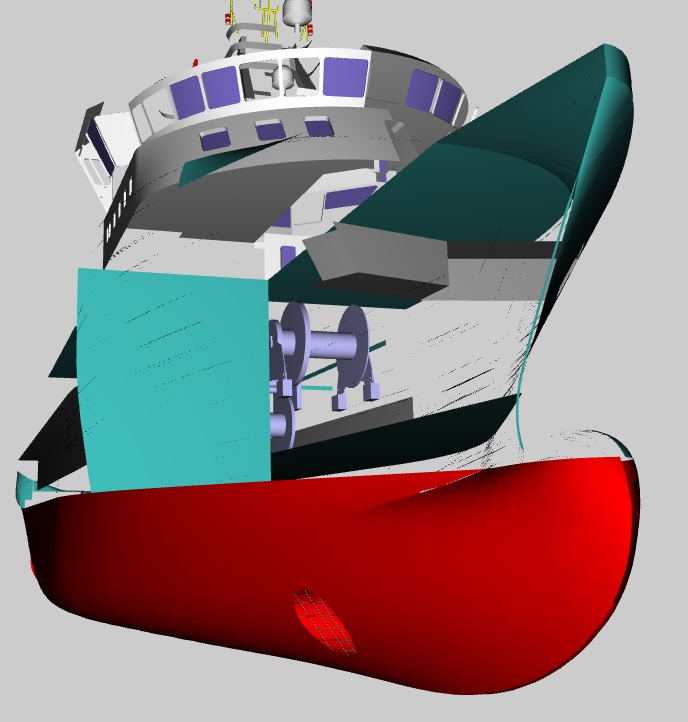

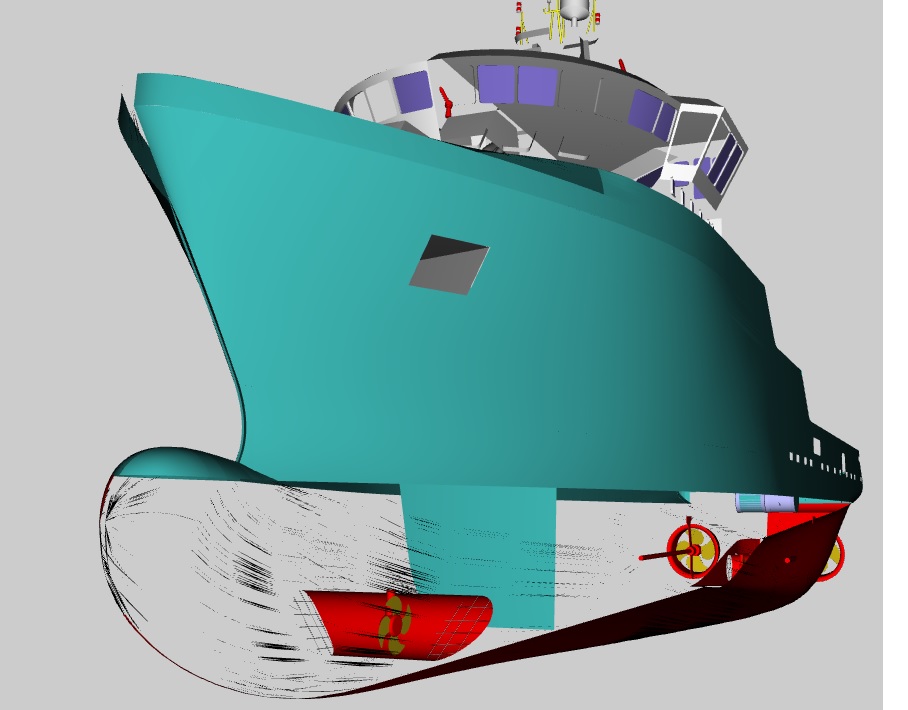

Next two pictures show the model with backFaceCulling=false





Why the colors are not correct when I set backFaceCulling=false? The vessel bottom  has to be red. How to fix the problem?

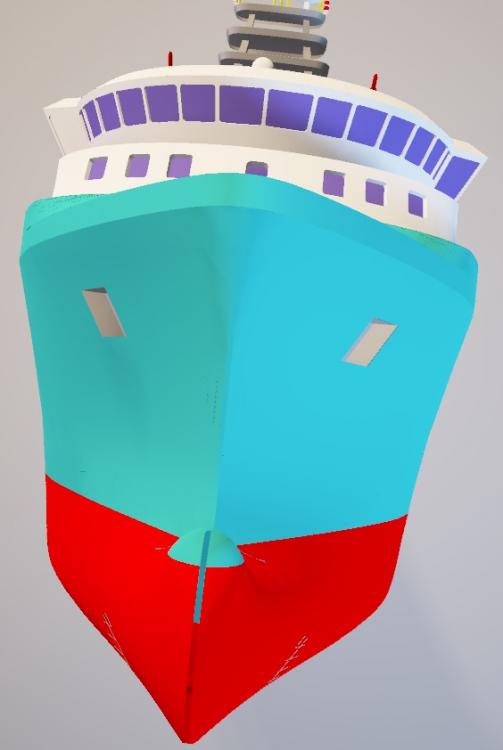

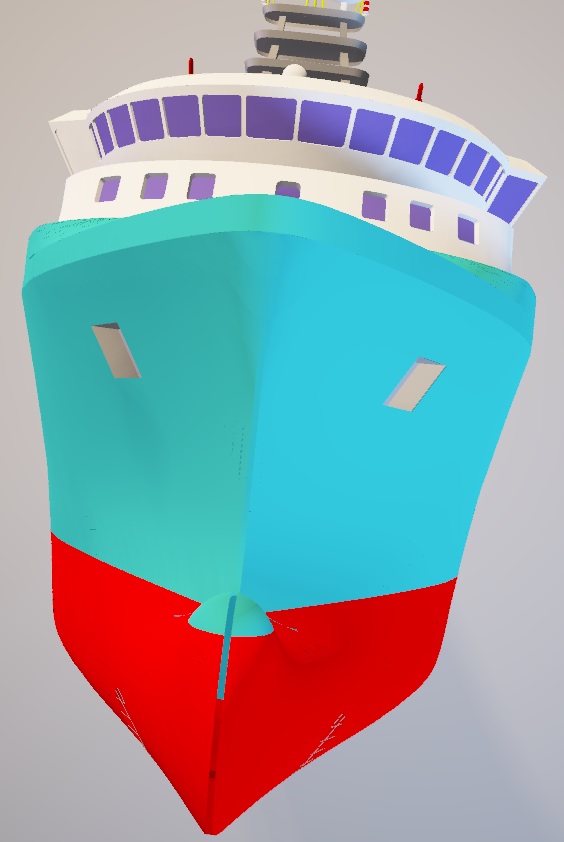

The original FBX file looks like this:


Link to comment
Share on other sites

On 10/23/2017 at 7:50 PM, Deltakosh said:

Hello

it looks like your normals are pointing to the wrong direction.

how does the model look like in Blender?



You can also try to call mesh.createNormals()

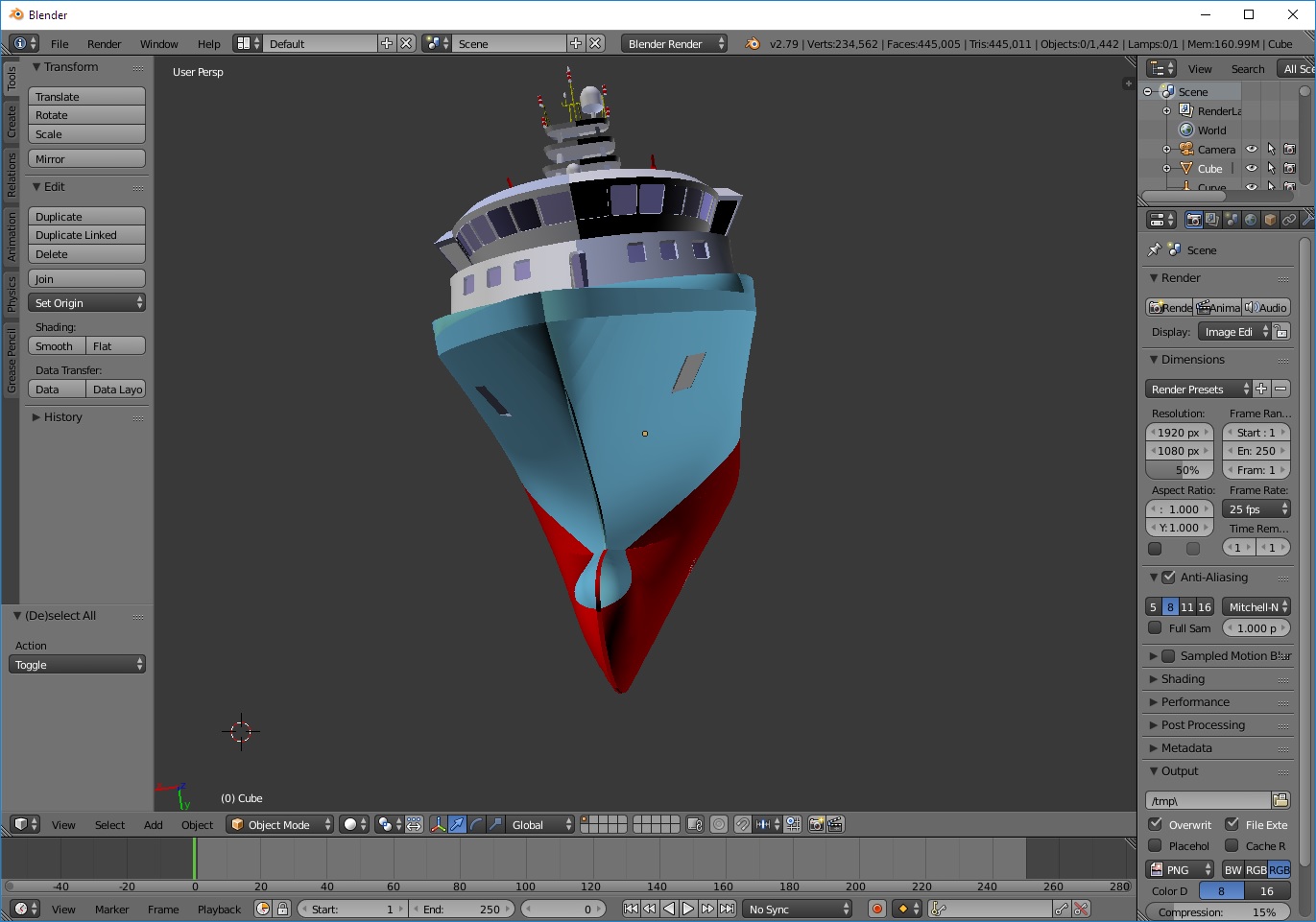

You can see the picture in blender.


Blender has correct colors.

I used the command line to convert fbx to babylon format file: FbxExporter.exe ship_Binary.fbx . /skipemptynodes.



I just try to try mesh.createNormals() , but there is a problem. I will try to fix it:

Cannot read property 'length' of null
    at Function.t.ComputeNormals (babylon.js:15)
    at r.i.createNormals (babylon.js:7)
    at e.callback (visam3d.window.js:1040)
