Textures creases between contiguous meshes

[Grunt]

Hello,

I'm having issues with the rendering of 16 textures split across 16 segments of a sphere (as a work around the mobile 4k texture limit).

As you can see here : https://playground.babylonjs.com/#QMSP9E#1 the meshes create seams in between each sphere segments.

I can't seem to find a fix for that, do you guys have any clue ?

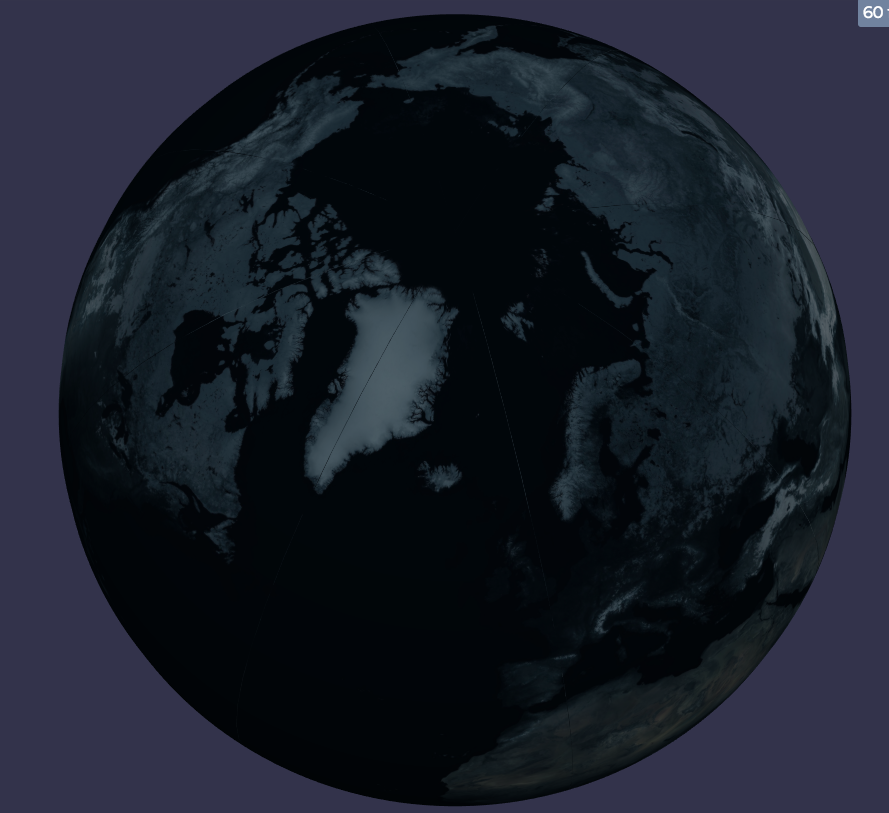

Here's a picture for reference

[Guest]

Hello this is expected and this is because of texture filtering. When reaching the border of every texture the system generate a seam. You need to play with UV to avoid this last pixel

[Grunt]

Thanks for the quick response

Looking at the Texture class it seems I can play a bit with the UVs with the uScale and vScale properties, but that doesn't seem to fix the issue (or I'm not fixing it correctly hehe).

[Guest]

Perhaps you could repro the issue in the playground? This will be easier to hack together

[Grunt]

Seems like the formatting didn't work in the first post. Here it is:

https://playground.babylonjs.com/#XXRWJB#1

[Guest]

Something along this line: https://playground.babylonjs.com/#XXRWJB#2

[Grunt]

Thanks that worked

I didn't try to change the offset prior to this.

I had to tweak the numbers a bit to get a better pixel match between tiles:

mat.emissiveTexture.uScale = 0.998;
mat.emissiveTexture.vScale = 0.998;
mat.emissiveTexture.uOffset = 0.001;
mat.emissiveTexture.vOffset = 0.001;

(I changed my textures so I don't have to mirror them)

[Pryme8]

beat me to it, I was gonna tell you to do what you just did to match stuff up.

welcome to the BJS community btw.
