Dynamic texture not displaying correct

[Flomotion]

Hey all,

I'm adding a dynamic texture to my imported model so I can have multiple layers in the diffuseTexture.

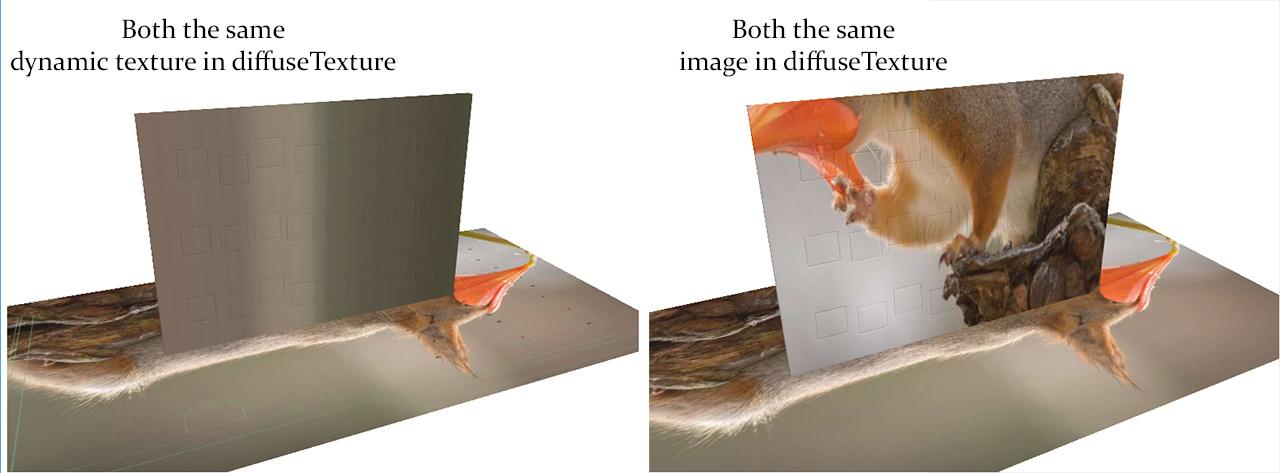

This works good on a plane that I create in BJS. But when I apply the dynamic texture to the imported model it looks strange. As if only the top row of pixels is used or something.. (see attached image)

When I place the same image texture on both models, everything looks as it should. I tried to recreate this issue in a playground. But since I can't load my own model in there I used the rabbit model.

http://www.babylonjs-playground.com/#38BSEG

But.. this seems to be working correctly. Is there a way to import my model into a playground? Or does anyone have an idea what's happening with my imported model?

thanks



Floris

[Sebavan]

This looks like a UV issue on the model you import. You should ensure the UVs  are matching with the one of dynamically created planes in Babylon.

[Flomotion]

Hi, thanks for your reply. The UV on my model is correct however. That's why I added the other image on the right where I placed and image in the diffuseTexture channel. It looks good there. And when I change the image to the dynamic texture, it looks wrong.

Or is there a way to rotate the uv channel with code?

[Guest]

Well this could be a wrapping issue. make sure that texture.wrapU and texture.wrapV are the same on both dynamic and non dynamic textures
