How to fill area between two lines?


Recommended Posts

I have to make a chart that fills the area between two lines looks like in below.

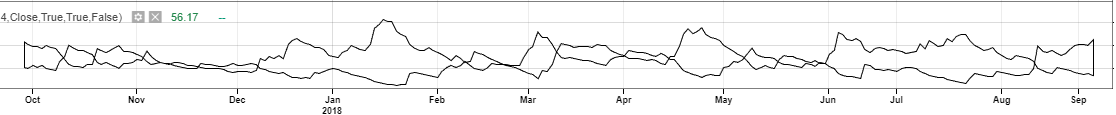

I have calculated and drawn two lines and connected each lines (See below image)


And I have used 2 approaches to complete this task.

  1. drawPolygon
  2. Using color for beginFill

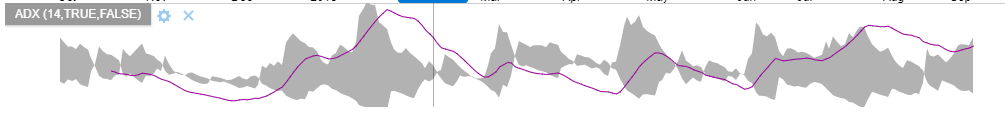

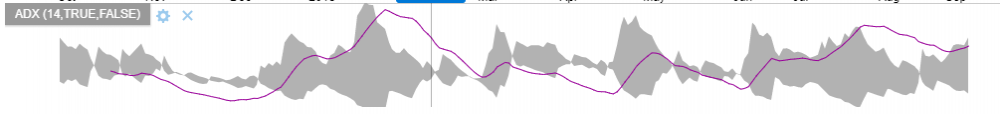

and both time I have failed. (See in below)


Please advice me.

Link to comment
Share on other sites

The result will differ for 2d and webgl. Pixi WebGL Graphics uses "earcut" library to triangulate it, while 2d Graphics uses HTMLCanvasRendering2D Context, and whatever triangulation is inside. You have to change earcut to something else, or do triangulation manually, which is easier condiering your input. You can even use Mesh instead of Graphics.

Link to comment
Share on other sites
