Colorize complex shape


Recommended Posts


I am developing an application with Angular and PIXI JS which generates bitmap fonts using bezier curves. The curves represent the outlines of my letter and supposing I am drawing the letter O as seen in the image I attached (it is not a stylish drawing, but you get the point), I would like to fill in with colour the interior of my drawing - the letter itself.

I have not found away to do it. I have tried to create a texture from my graphics and then a sprite from the texture, then adding a tint to the sprite, as follows:

const bezierTexture = renderer.generateTexture(this._splineGraphics); // convert shape to texture
const sprite = new PIXI.Sprite(bezierTexture);
sprite.texture = PIXI.Texture.WHITE;
sprite.tint = 0xFF0000;
sprite.width = this._width;
sprite.height = this._height;

However, this is tinting my entire canvas.

Thank you,

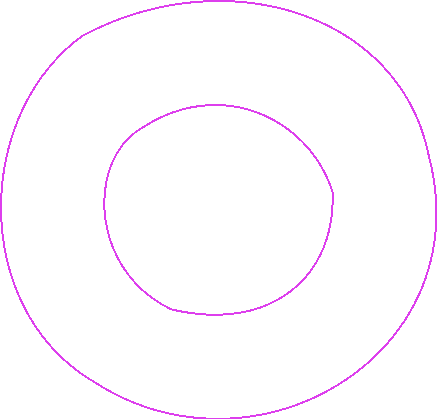

test (1).png

Link to comment
Share on other sites

Hello and Welcome to the forums!

> I would like to fill in with colour the interior of my drawing - the letter itself.

There's no such operation in canvas2d nor in webgl.

Yes, its possible to do that but this is not a basic operation. You have to learn many things like context2d getImageData putImageData and "breadth-first search" and how colors are encoded to do that.

However, there are many other ways to achieve what you want if you slightly change the input. Color-replace filters exist in pixi-filters, but they wont notice which is inner and which is outer.

If you dont know what BFS is and how to do it on pixels - you have to change your input in photoshop - you have to do that operation in any of editors so you wont have to do it in JS side.
