Is it possible to draw a Mesh or SimplePlane from 8 corner points?


Recommended Posts

Hey there,

I`m currently working on a perspective transform with pixi. I found the example here: https://pixijs.io/examples/#/plugin-projection/quad-bi.js

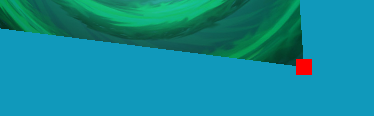

Problem: The image is not drawn cleanly on the edge, even when setting antialias: true

So now i thought about using a mesh or SimplePlane to make the edges smooth (example: https://codepen.io/osublake/pen/gLGYxx)

I only have 8 points to draw the mesh. Is that possible?

What would be the best approach to this?




Link to comment
Share on other sites

@ivan.popelyshev Thanks for your reply.

Tbh I don`t know if I need it.

I just want to make the edges cleaner.
The 2D quad bilinear gives me 8 observable points, so I thought it might be possible to create a SimplePlane from these (I thiought the verticles would help), but I couldn't do it.

I`m a beginner so I don`t know if that even makes sense.

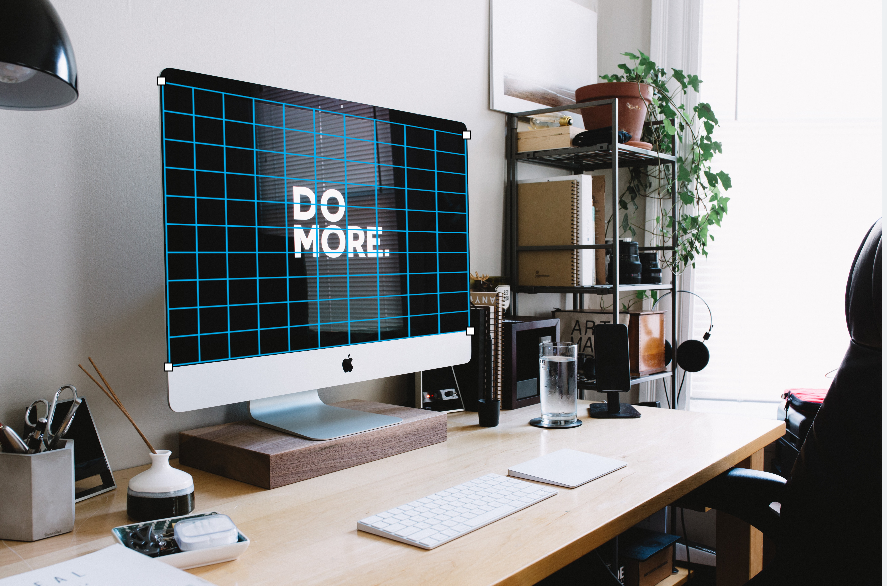

How would you solve the problem? The grid gutter in the picture should be interchangeable with any picture.






Link to comment
Share on other sites

Just in case, there's a difference between bilinear (Sprite2s) and usual homogeneous projection (Sprite2d), and in your case it should be homogeneous. "antialias:true" webgl context flag will work with this.

Where are those 8 points here, i see only 4

Edited by ivan.popelyshev
