Changing texture size

[Sia]

Hi everyone

I have a texture which I use it in Graphics.lineTextureStyle :

the whole code goes like this :

const app = new PIXI.Application({
    antialias: true  , width:1000 , height:1000 , backgroundColor: 0xFFFFFF
});
document.body.appendChild(app.view);

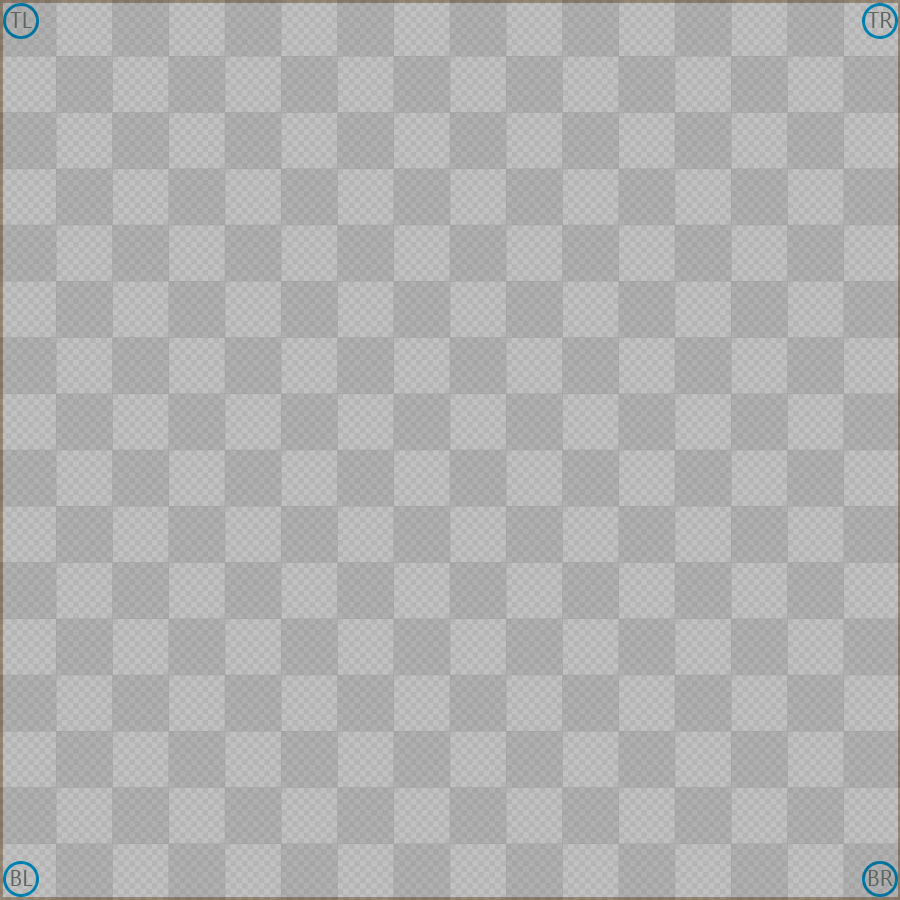

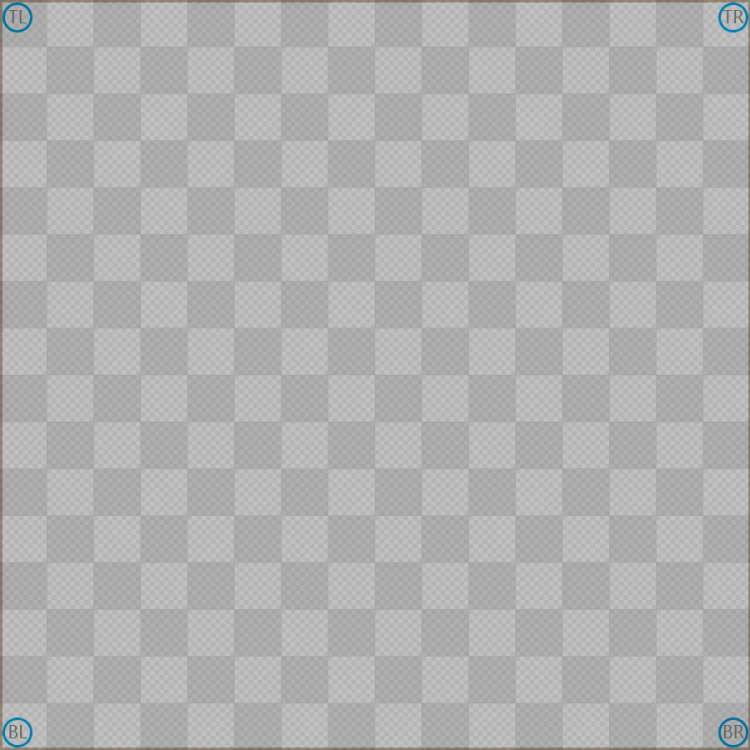

const texture = PIXI.Texture.from('./a.png');  // the size of image file : 900*900
const g = new PIXI.Graphics();

g.lineTextureStyle({width:40 , texture:texture , alignment:0});

g.beginFill(0);
g.drawRect(0,0 , 900,900);  // the size of rectangle : 900*900
g.endFill();

app.stage.addChild(g);

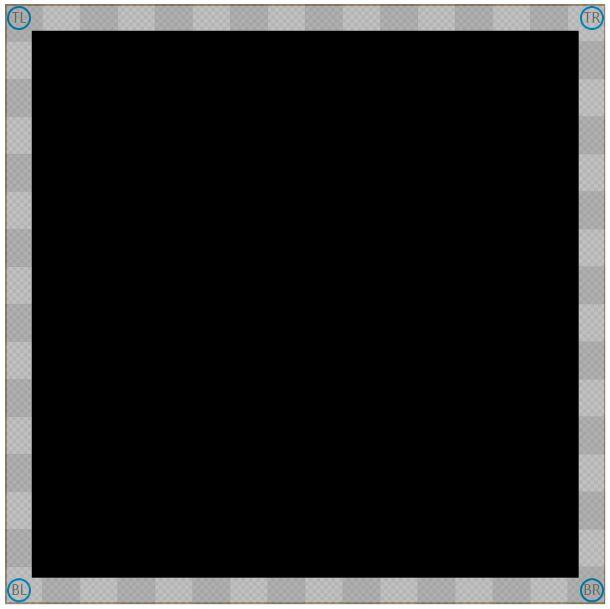

the result :

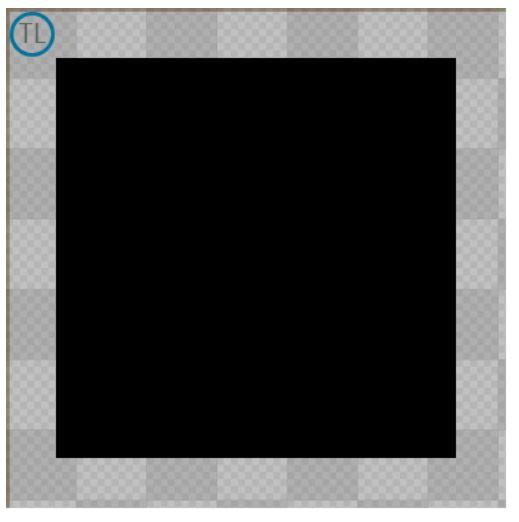

now I want to change the size of rectangle to 400*400 but texture stays the same size so most of texture gets clipped like so :



how to change the size of texture to match it with the size of rectangle ?

[ivan.popelyshev]

pass the matrix in method , with a scale

[Sia]

could you please be more specific ?

[ZackMercury]

I think he meant this:

g.lineTextureStyle({width:40 , texture:texture , alignment:0, matrix: PIXI.Matrix.IDENTITY.scale(the scale you need)});

And you can calculate the scale like this:

scaleX = rectWidth / TEXTURE_SIZE

scaleY = rectHeight / TEXTURE_SIZE

Edited January 24, 2021 by ZackMercury

[ivan.popelyshev]

please dont change IDENTITY matrix, clone it at least first!

[ZackMercury]

Wait, what? PIXI Matrix is not immutable?

Ah, my bad.

g.lineTextureStyle({width:40 , texture:texture , alignment:0, matrix: PIXI.Matrix.IDENTITY.clone().scale(the scale you need)});



Edited January 24, 2021 by ZackMercury
