Leaflet.PixiOverlay - Problem with render sprites


federoldan
 Share

Recommended Posts

Hello, first of all I want to clarify that I've already read this post. My problem is very similar but not the same. Also, there isn't a solution in that thread.

Wich is my problem?

So, I render a bunch of Sprites in the map using a regular PIXI.Container. So far so good, there is no problem there.

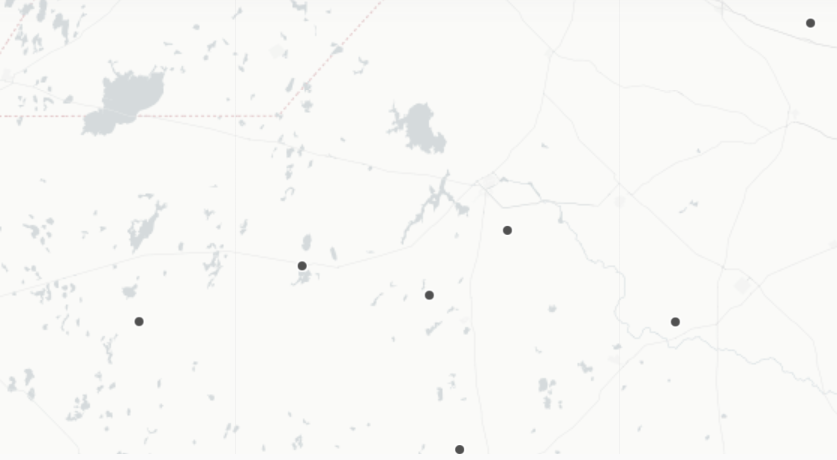

When I zoom in, the scale of the sprites gets to little and all of those sprites who aren't beeing focused dissapear when zooming out. I would like to be able to zoom in and out without problems and use the scale property the right way

I hope I made myself clear.

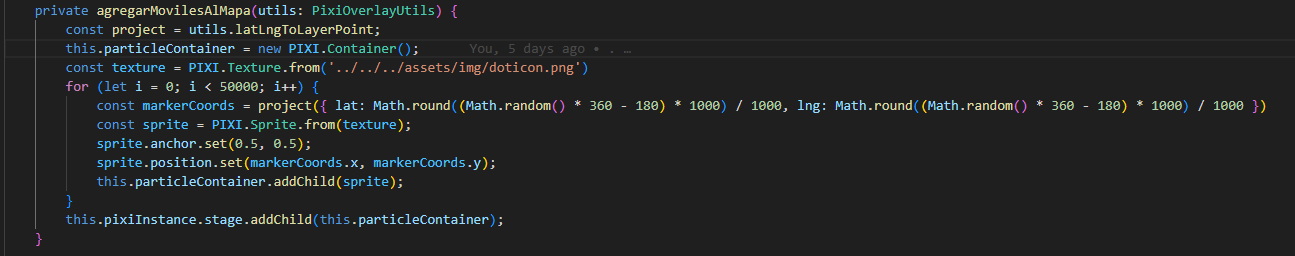

This is my code for the Sprite creation.

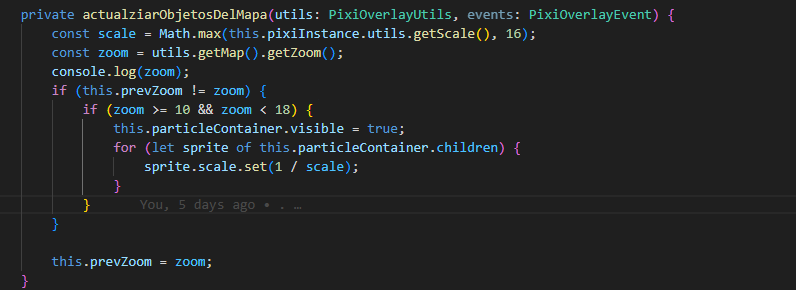

And this is function is for the zoom wich is called as a callback of the creation of the pixiOverlay (it executes every time there is an event in the map, such as: creation, zoom in, zoom out, etc)


Link to comment
Share on other sites

I've found a solution! Obviously, it was an scale issue. I still dont't figured out how does scale works but the solution is this:

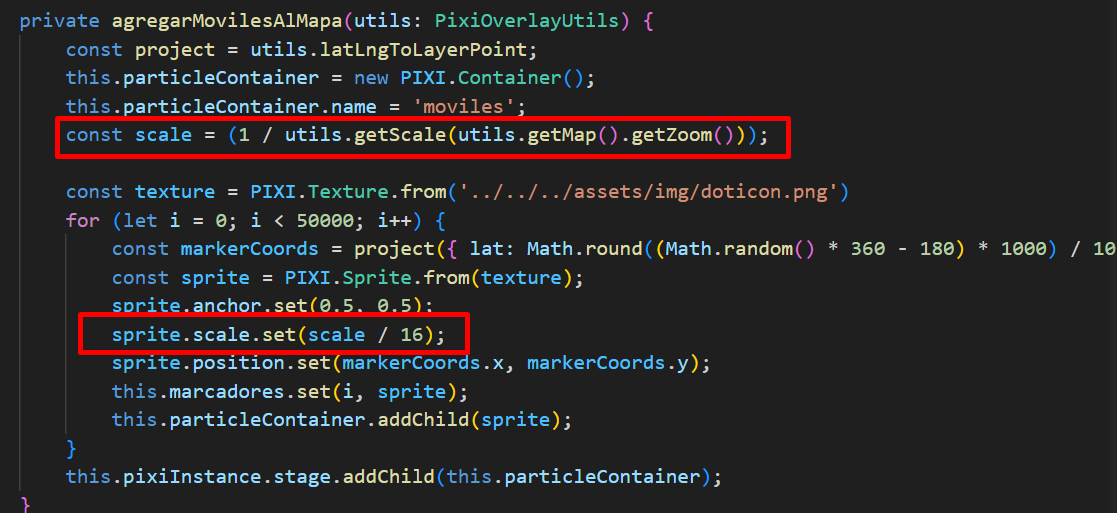

I set the scale of the sprite equal to the current pixi overlay instance using the map zoom as argument and the dividing it by 16 (sprite size):

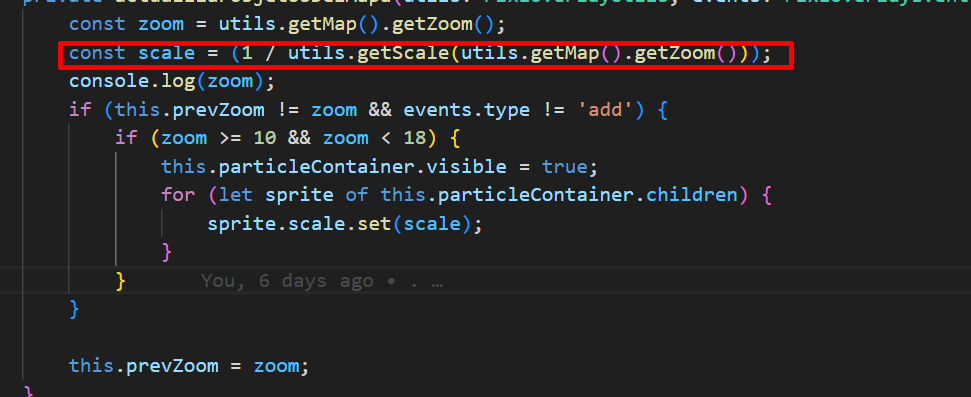

And when zooming in or out I set the scale as it follows:


Link to comment
Share on other sites
