webgl error

[satguru]

I sometimes see the following error in console.

Error: WebGL: texImage2D: Uploading ArrayBuffers with FLIP_Y or PREMULTIPLY_ALPHA is slow.

(babylon.2.4.max.js:3847:17)

What does this mean?



[GameMonetize]

Hello,

it means that you should not use invertY in your texture because this could slow down the loading process (loading to the GPU memory)

But this is not a big deal and it only impacts loading time and not rendering

[satguru]

Not sure what invertY is but will checkup on that

The scene file I use is exported from blender. I wonder if their is some setting there I could use.



While we are on the topic of webgl error I also get the following error from time to time (usually on firefox)

Error: WebGL: Exceeded 16 live WebGL contexts for this principal, losing the least recently used one.

Does not seem to have any effect but made me wonder what the issue was.





[dbawel]

I assume you're using power of 2 textures, ( 64, 128, 256, 512, etc.) which are almost always more efficient to render. I believe that I received the same error which was corrected when I realized I was using an odd texture size and resized my image to power of two. But I can't be certain as it was eons ago.

[GameMonetize]

Looks like your issue comes from too many canvases on the same page. Or comes from Firefox bug

[phaselock]

Apologies for the thread necro, but I'm getting this error during dev as well in FFox: Error: WebGL: Exceeded 16 live WebGL contexts for this principal, losing the least recently used one.

I understand dispose() works, are there any procedures for GC on canvases/engines I should take note of ? A doc link would be nice here, I think.

[GameMonetize]

This may be a ff bug as well where it does not dispose the context for some reason

Are you using the latest bjs version (3.1 alpha?) Can you also check using memory snapshots that you do not have a leak that keep the context in memory (like a remaining event)

[phaselock]

On 8/18/2017 at 0:27 AM, Deltakosh said:

Are you using the latest bjs version (3.1 alpha?) Can you also check using memory snapshots that you do not have a leak that keep the context in memory (like a remaining event)

I'm using 3.0. Memory is showing ~12MB when page loaded dropping to ~5MB after local server d/c (and I believe after GC). Primary calls in script are

    this.viewport.remove(); //canvas removal
    engine.dispose();

I don't think its sufficient. Heap snapshot shows that meshes in the scene are still retained, as well as the scene itself. I have to pore over this in detail. Is there a best practice doc/guide as to removing babylon created object references anywhere ?

edit: I forgot, the GUI elements are also retained in memory, I'm seeing several getNodeText calls. Hope it helps.

[GameMonetize]

Unfortunately, without a repro, I won't be able to help

[phaselock]

On 8/22/2017 at 1:48 AM, Deltakosh said:

Unfortunately, without a repro, I won't be able to help

I took the PG codes from https://www.babylonjs-playground.com/#FBKE1P#1  and modified to add in a 30s timer (zip file) that disposes the scene and engine. You should be able to obtain the snapshot before timer runs out.

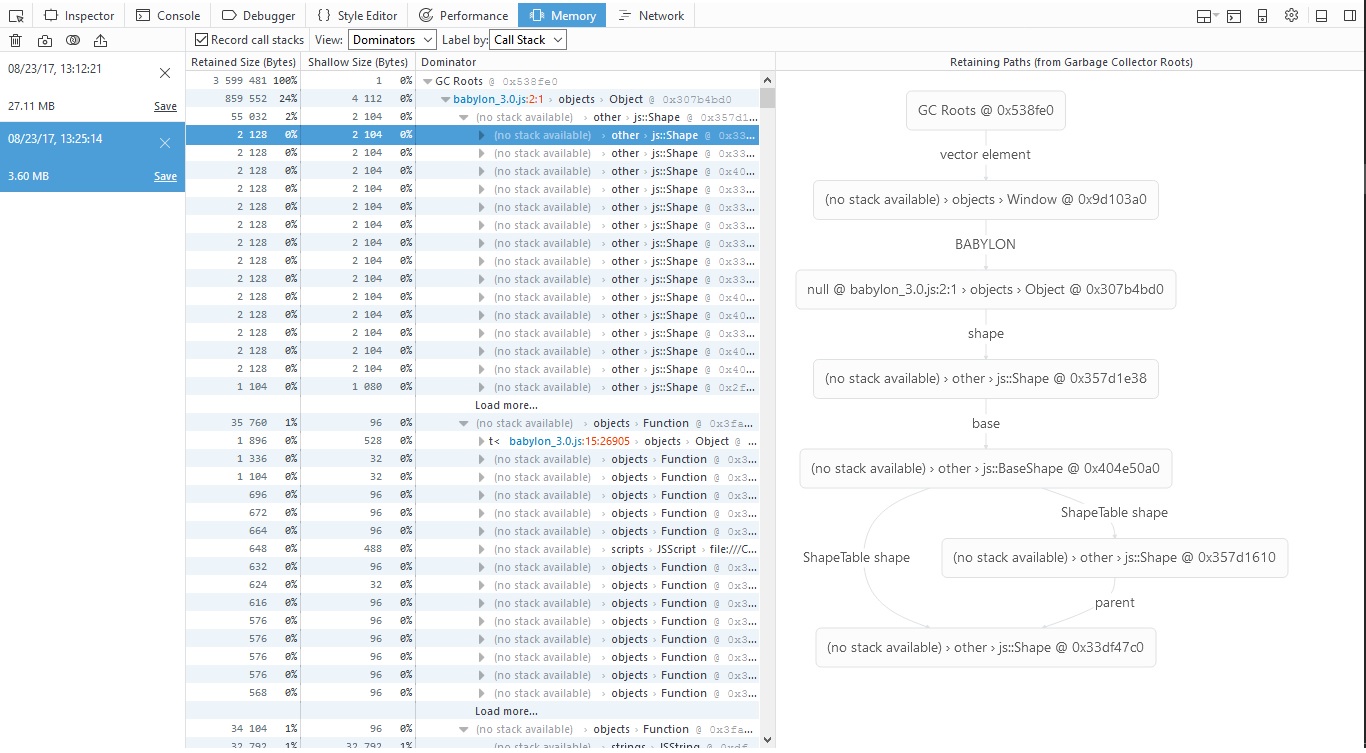

Also, attached my ss fyr. Does this help ?

index1.zip

[GameMonetize]

Unfortunately no, I need a simple page hosted somewhere where with a simple code you repro the issue. The idea is to concentrate only on the memory leak

[phaselock]

Well, I managed to make it reproducible via window.location.reload(true) with the simplest of scenes (as below). A warning tho, this creates an infinite loading of the same page just to speed things up, so have F12 console viewable as the page reloads. I also tested multiple browser refresh in the basic scene of the PG and got the same result. Hope it helps.



	<script>
		window.addEventListener('DOMContentLoaded', function() {
			function createScene(engine,canvas) {

				var scene = new BABYLON.Scene(engine);
				//Adding an Arc Rotate Camera
				var camera = new BABYLON.ArcRotateCamera("Camera", 0, 0.8, 100, BABYLON.Vector3.Zero(), scene);
				camera.attachControl(canvas, false);
				return scene;
			}
			var canvas = document.getElementById('renderCanvas');
			var engine = new BABYLON.Engine(canvas, true);
			var scene = createScene(engine,canvas);
			engine.runRenderLoop(function() {
				scene.render();
			});
				scene.dispose();
				engine.dispose();
				//canvas = null;
				canvas.remove;
				console.log("scene disposed? " + scene.isDisposed);
				window.location.reload(true);
		});
	</script>



[GameMonetize]

Ok so as the leak remains even after a reload then this is clearly a browser issue ;(

[JCPalmer]

No, it is not a browser issue.  It is a feature.  This incarnation of this topic is a re-thread of this one.

[GameMonetize]

Interesting "feature"
