How to simulate "Projection Camera Mapping" of video on to a Babylon Mesh?


Recommended Posts

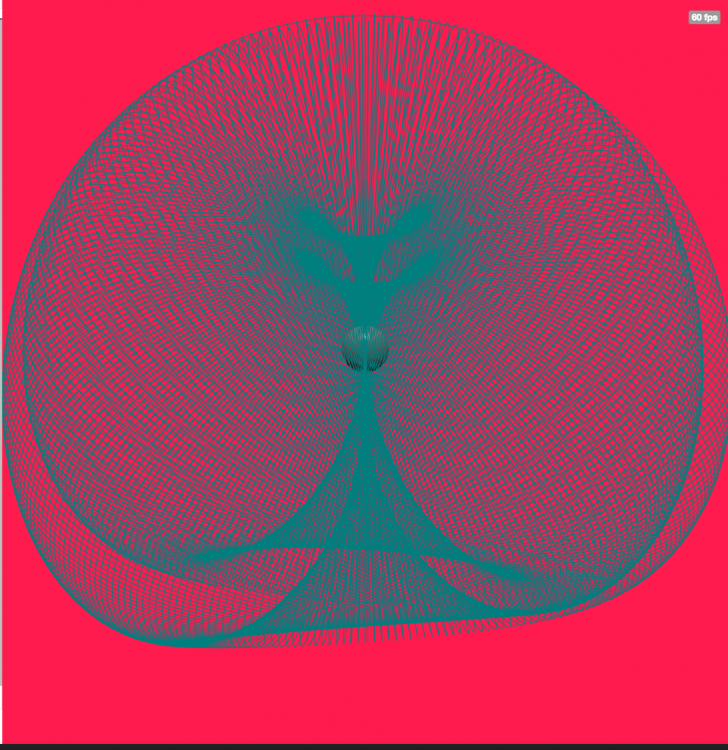

How would I project a standard 16:9 video onto multiple  Babylon mesh (live code) (sample meshs in pink bg, teal lines, gray sphere image below); as if, the camera was a projector and the mesh was an object in a space ?

The results I'm looking for is that the video would serve more as a gradient of colors to the mesh or on the otherhand a distortion to the video itself.

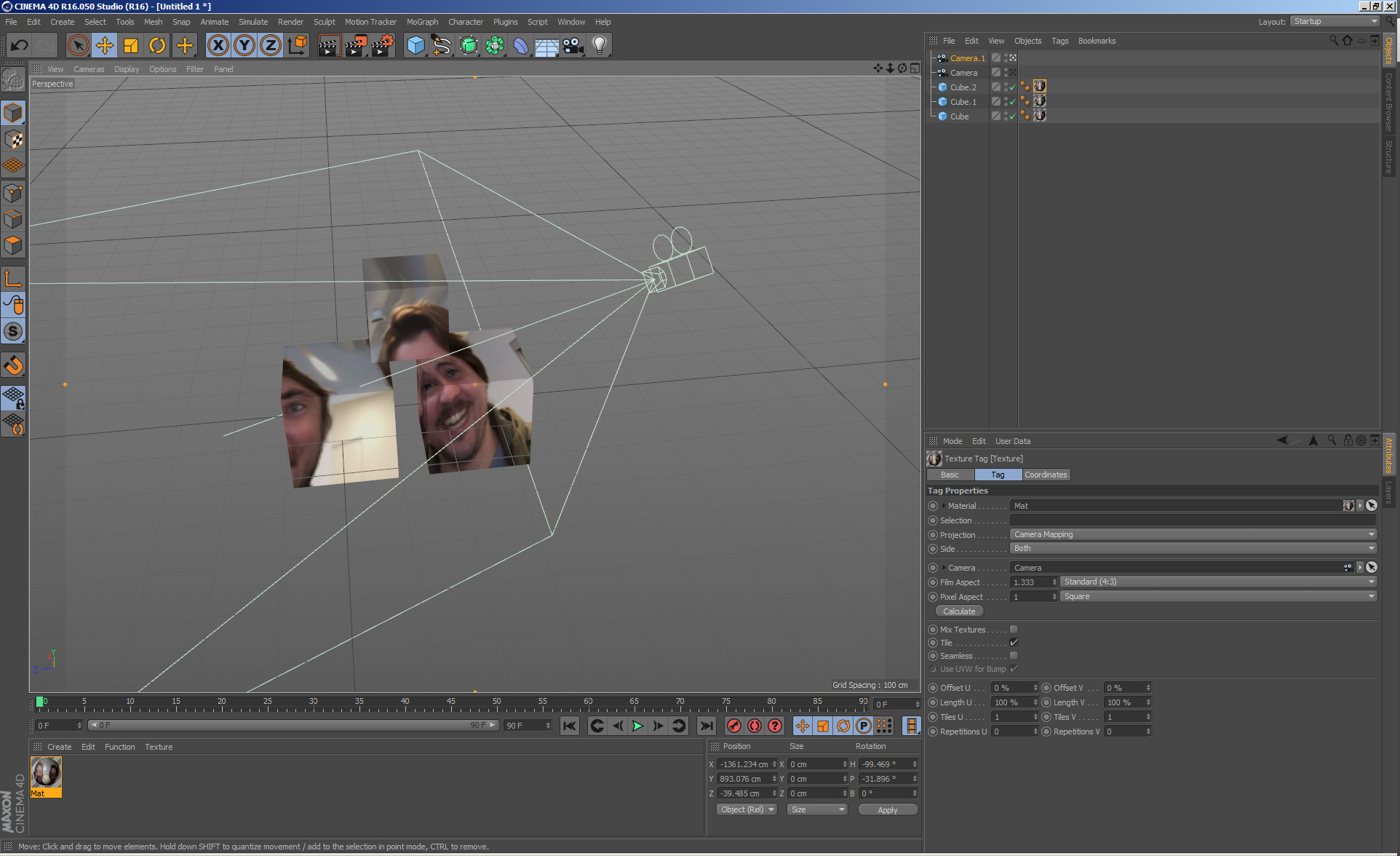

Hope this makes sense, I've attached an image from cinema 4d on the concept I'm taking about.

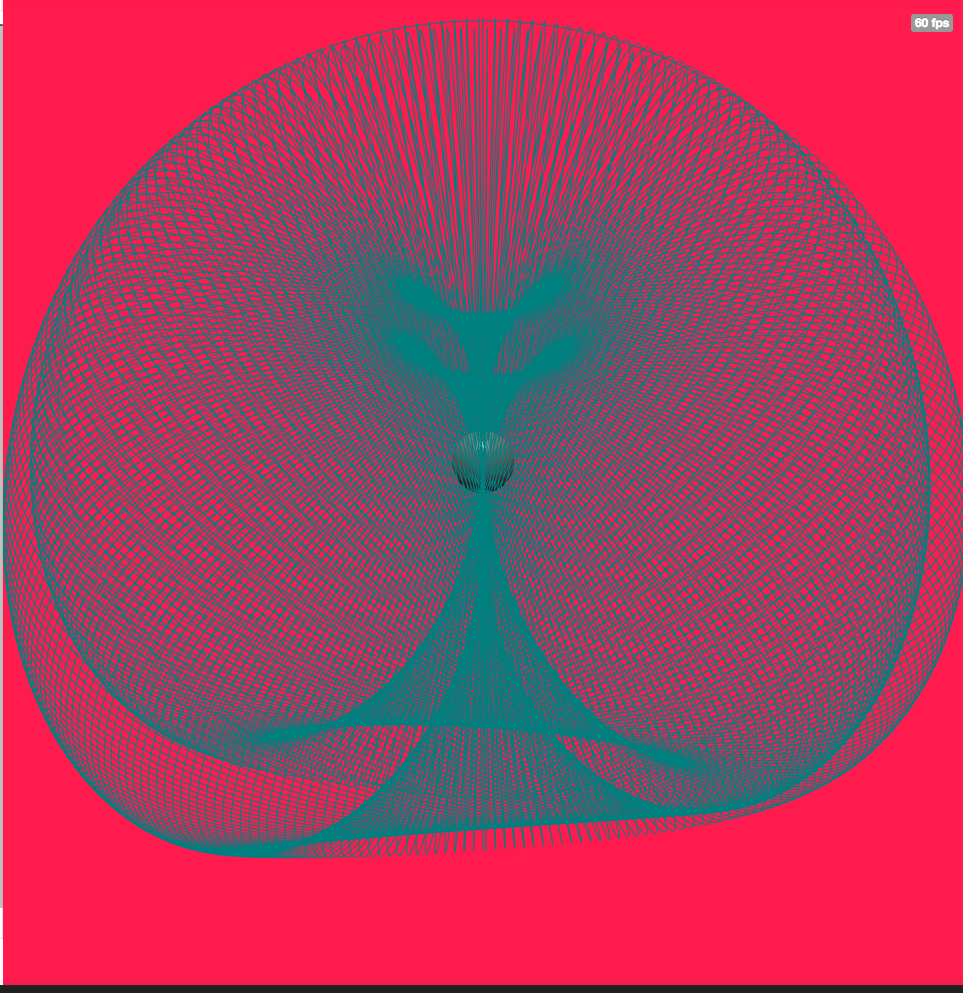

Screen Shot 2016-04-25 at 4.10.27 PM.png


If you know how to answer this question: http://stackoverflow.com/questions/36852783/how-to-simulate-projection-camera-mapping-of-video-on-to-a-multiple-babylonjs EXTRA POINTS!

Link to comment
Share on other sites

@Deltakosh Thats exactly what I was looking for with a few exceptions, Sample code: http://www.babylonjs-playground.com/#203BJM#5

1. Is it possible to apply it to the BABYLON.Mesh.CreateLines()? if not, any ideas on how you would approach creating a crazy mesh like I have below with a different type of geometry?


    for (var u = 0; u <= 2*Math.PI; u += incrementer){
        for( var v = 0; v <= 2*Math.PI; v += incrementer){

            points.push(new BABYLON.Vector3(
    var shape = BABYLON.Mesh.CreateLines('Shape', points, scene, true);
