Missing line of pixels on small canvas?

[TomLGD]

Hello,

I am trying to make a game with phaser 2.2.8.

The should look like an old school gameboy game.
So the canvas has the dimensions of 160x144 pixels.

The problem is a strange behaviour at the left and the top side of the screen.

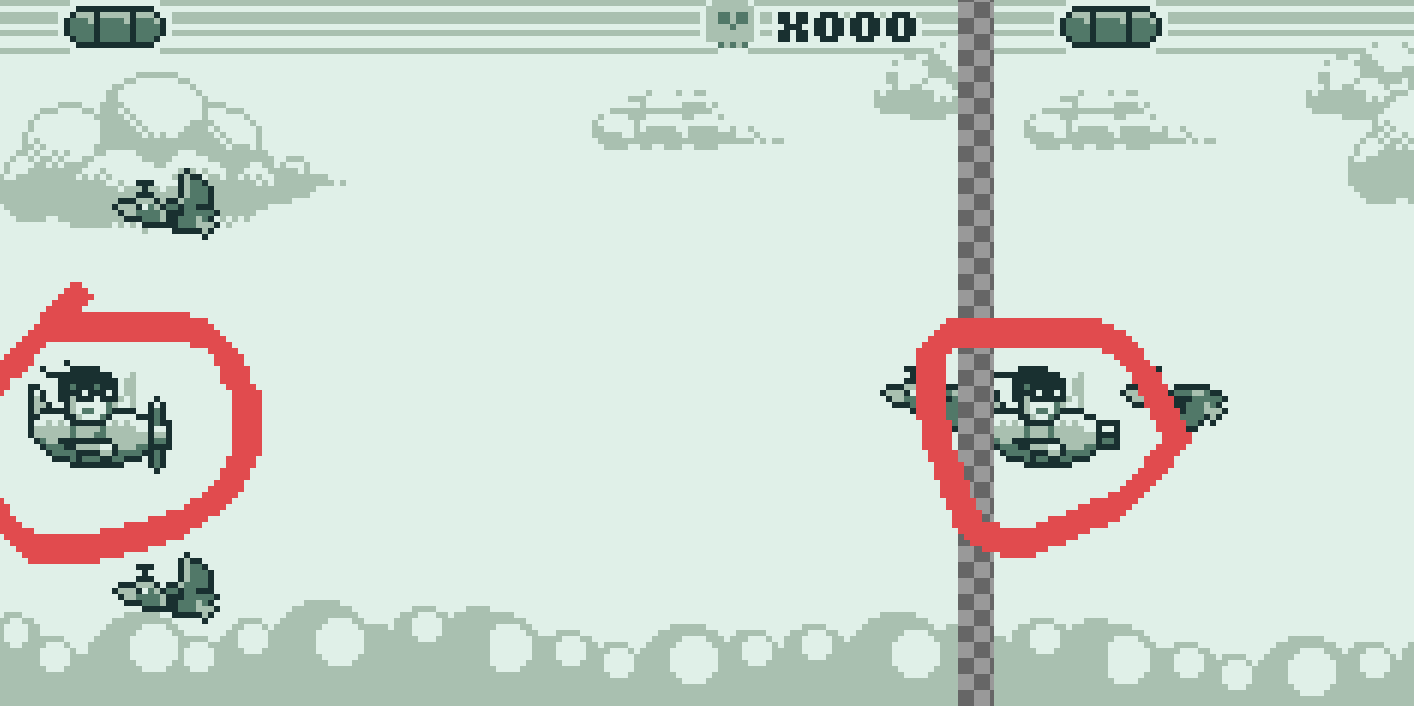

I attached an example to clarify what i mean.

On the left pic the pilot wares glasses. You can see the connection between the 2 lenses.
On the right pic the sprite looks compressed by one pixel, the connection disappears.

Does someone knows why this happens? Or better how to solve this issue?

Thanks, Tom

[TomLGD]

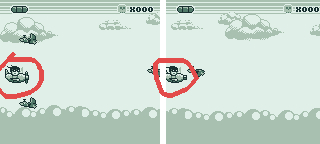

Here is the picture a bit bigger^^

[Zendrael]

I'm having a similar problem... Which is the size of your spritesheet and sprite frame? Is the sprite drawing too close to the border of the frame?

[TomLGD]

My atlas has a size of 571x571
And yes the missing line happens at the point the sprite is touching the boarder.

[icp]

You should disable antialiasing:

this.game.stage.smoothed = false;



[TomLGD]

7 minutes ago, icp said:

You should disable antialiasing:

this.game.stage.smoothed = false;



This is already the case, do difference with dis- or enabled

[TomLGD]

Just tested the game with phaser 2.6.2.

Still the same error, when a sprite is touching/overlapping the border, the sprite will "loose" one line of pixels

[TomLGD]

Okay guys!

Ich think I have some kind of solution!

 game = new Phaser.Game(WIDTH, HEIGHT, Phaser.CANVAS, 'gamediv', null, false, false);

I changed from Phaser.AUTO to Phaser.CANVAS! Thad made the stunt^^

So I hope I dont need webGL stuff for my project...

[Zendrael]

Great!

If you are not going to use 3D or fancy effects, CANVAS is ok for your game. It's faster on some devices too.
