Blend modes inside a canvas (wich is inside a java webView)


Recommended Posts

Hey, im using PixiJS 4 in a plattform that uses a java WebView on some plattfroms to display the Game.

It all seeems to work fine ,i allready made some small games and they are all working well.

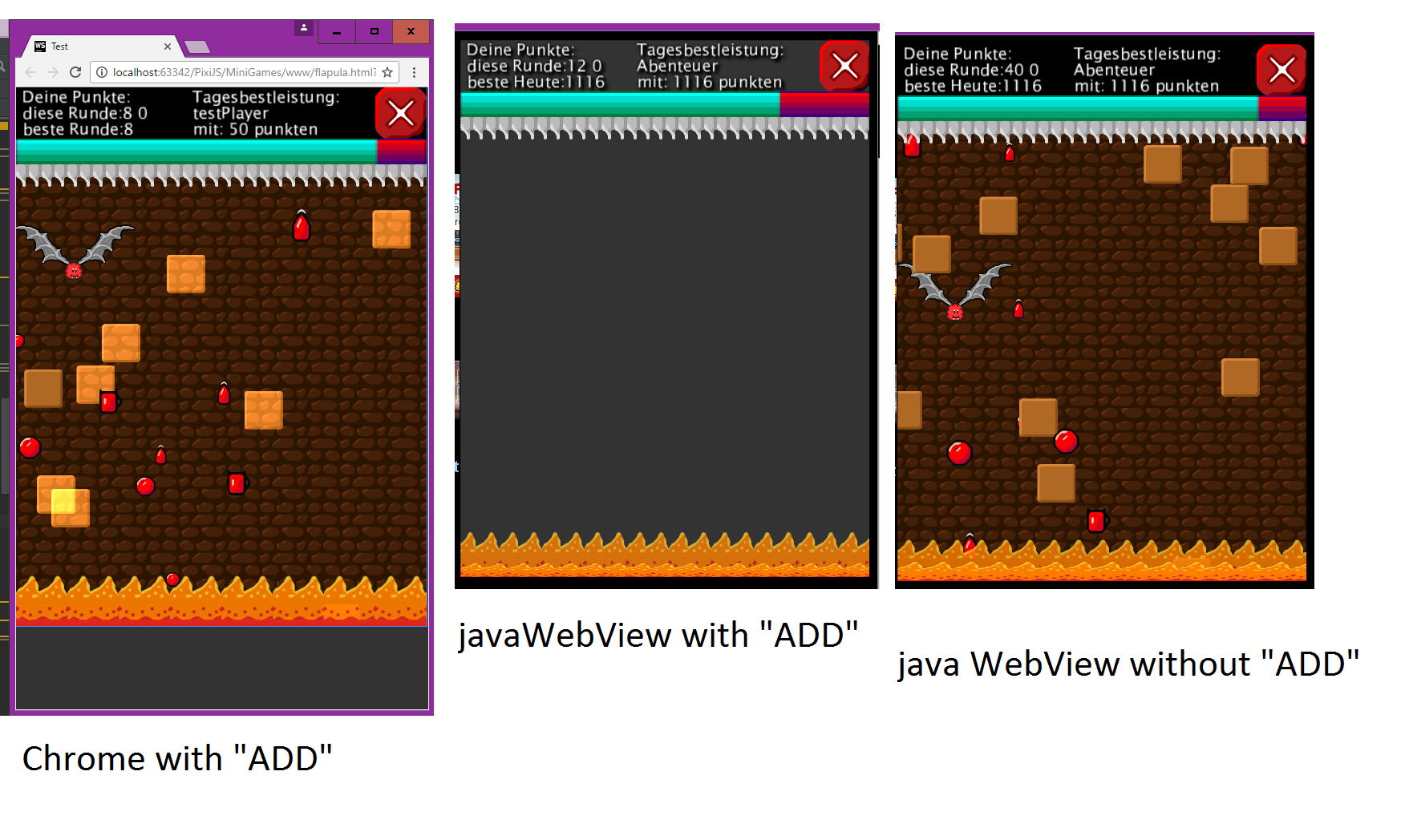

But when i try to use the blend Mode "ADD" for some effects, then the rendering is broken anyhow, i made some images of the cases:



Anyone ever had this problem? anyone knows a solution?

Link to comment
Share on other sites

hi, thanks for you effort

i testet it with this little modified w3schools sample:


without the lighter blend the image is blue, with the ligther its than purple (red+blue)

and this variant is working in the java view thingy (its purple there)


<!DOCTYPE html>

<canvas id="myCanvas" width="200" height="100" style="border:1px solid #d3d3d3;">
	Your browser does not support the HTML5 canvas tag.</canvas>

	var c = document.getElementById("myCanvas");
	var ctx = c.getContext("2d");
	ctx.globalCompositeOperation = 'lighter';
	// Create gradient
	var grd = ctx.createRadialGradient(75,50,5,90,60,100);

	var grd2 = ctx.createRadialGradient(75,50,5,90,60,100);

	// Fill with gradient
	ctx.fillStyle = grd;
	ctx.fillStyle = grd2;



Link to comment
Share on other sites

6 hours ago, ivan.popelyshev said:

Its strange. That's the only thing that is changed when you switch to ADD blendMode. Is there any kind of console?

What if you add that thing after you create a renderer?

renderer.blendModes[1] = 'lighter';


i just tried that, but changed nothing :(

yes i can hack some console style stuff into it, the value of renderer.blendModes[1] was "lighter" from begin

Link to comment
Share on other sites

  • 2 weeks later...
  • 1 month later...
  • 1 year later...

Do you still need it? wow. Yeah, i have so many serious issues for v4, for next v5, and webgl, i cant focus on canvas. You can wait one more year when I have free time to setup Java environment like yours (or half-yeah, i already got intellij idea ultimate). Or you can provide more information to my telepathic abilities adn there's a chance i get you one-liner answer.

Or you can just take pixi sources and fix them, if its ok , make PR :)

More info, zip-file with environment and stuff => more chances that I can help you. And I think I'm the only one here with java background.

Link to comment
Share on other sites

  • 2 years later...

Hello, if anyone like me finds this topic in search of answer to very same question, here are some links for you:




This issue wasn't created by me but reflects my experience with Canvas + WebView -- none of blend modes works.

Link to comment
