plugin Grid-based physics plugin

[nkholski]

UPDATE
After posting this I decided to create a repository on Github and I made a new "official" thread in the forum to post updates on the progress, and for anyone to drop questions, ideas and stuff.
Github: https://github.com/nkholski/phaser-grid-physics
Forum: http://www.html5gamedevs.com/topic/28051-grid-physics-plugin/



-----------------------------------------------------------------------------------------



Hi all,

I've been thinking of doing an old-school RPG for a while (haven't we all?), and decided to start with a plugin for grid-based "physics" for me to use. I reached a point where I got most of what I will need, and thought I could share a small demo. If there is interest I might improve the plugin and remove parts that are tied to my game so that others may use it (it would be really easy to make something like Sokoban with this).

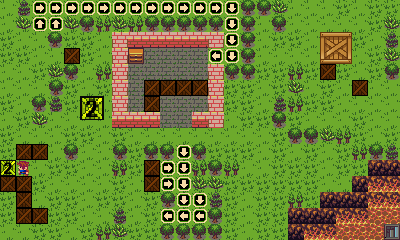

The demo is here: http://metroid.niklasberg.se/gridPhysics/

The hero is controlled with the arrow keys. Use the controls in dat-gui in the upper right corner of the browser to change properties. Things to do: Push objects (even multiple objects in chains). Walk or push things into one-way directional tiles. Explore the Hero properties.

Code examples

//Init 8x8 grid physics
game.plugins.add(new GridPhysics(this.game));
game.physics.gridPhysics.gridSize = {
         x: 8,
         y: 8
};

//Enable grid collision on a tile map layer
game.physics.gridPhysics.enable(layer);

// Enable grid body on sprite:
game.physics.gridPhysics.enable(sprite);

[rich]

Lovely demo  You may want to enable cursor key capture (to stop the page scrolling when you press down)

[nkholski]

Thanks! I've enabled cursor key capture now.

[phreaknation]

Love this. This SHOULD be a plugin.

[nkholski]

It IS a plugin, just not public (yet) :-). I started to strip game specific hard coded stuff from it yesterday. It should be on GitHub within a couple of days.

[phreaknation]

That is basically what I meant. I am having to do the same thing with all of my plugins that I am doing. Here in a couple months I should be releasing about four or five of my own

[samme]

Maybe gridSize could be a Phaser.Point?

game.physics.gridPhysics.gridSize.set(8);



[hexus]

This looks awesome!

[nkholski]

Thanks!

After posting this I decided to create a repository on Github and I made a new "official" thread in the forum to post updates on the progress, and for anyone to drop questions, ideas and stuff.
Github: https://github.com/nkholski/phaser-grid-physics
Forum: http://www.html5gamedevs.com/topic/28051-grid-physics-plugin/

[MikeStalon]

I really do not understand how to launch the demo, the files are misplaced. Great initiative though.

[nkholski]

If you just want to check it out there is a demo online here: http://metroid.niklasberg.se/gridPhysics/

Otherwise, there are instructions at the end of the README.md-file ("brunch watch --server" to watch files and launch the server). Note that you need to navigate to http://localhost:3333/demo/ (not http://localhost:3333).

I have had an unexpectedly busy period with unrelated stuff and haven't had time to work on the plugin for a while. However, it's far from abandoned and I plan to pick up the development as soon as things calm down.
