Set dashed edges on mesh


Recommended Posts

Hi Team, I am having following code to create box(and also similar code to create planes in some cases):

          var box = BABYLON.MeshBuilder.CreateBox("box1", {width: sWidth, height: sHeight, depth: sDepth,updatable:true}, scene);
          box.edgesWidth = 2.0;
          box.edgesColor = new BABYLON.Color4(0, 0, 1, 1);


This creates solid edges on box/mesh. Is there any way to make dashed lines instead of solid ones.

Link to comment
Share on other sites

I only see the colour and edges properties you set,  but I'm pretty new with babylonjs.  There's surely a better way, but I've created custom edges for boxes by making my own texture - it's just a .png image for a texture.  The code is here:


The last PG is more or less how I am doing it:

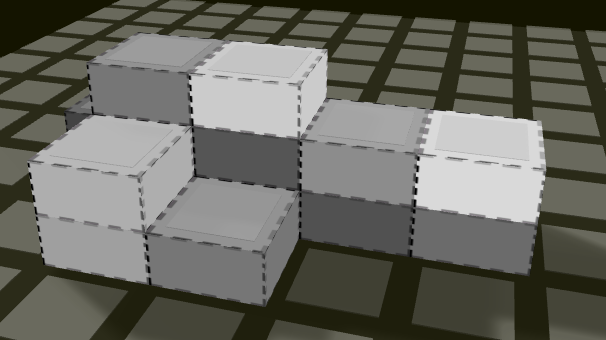

I made a dashed texture quickly and attached screenshot.


Link to comment
Share on other sites

Hi Brian,

I am not sure if that is going to work in my case. I want to create a structure that i have shared in below post. i.e. it should handle overlapping of border correctly when there are boxes horizontally and vertically. which exactly current edgerender mechanism does.


Link to comment
Share on other sites
