solved [Solved] How to edit the material in an imported mesh

[Juncheng]

Hi Guys,

I am Juncheng. I am new to Babylon.js.

I imported a model through OBJ loader, then I failed to modify the properties of its material.

modelGoldTop.onSuccess = function (task) {

  m = task.loadedMeshes[0];
  m.scaling = new BABYLON.Vector3(12,12,12);

  var material = m.material;
  console.log("Material: " + material);
  // material.backFaceCulling = false;
  // m.material = material;

  console.log(m);
}

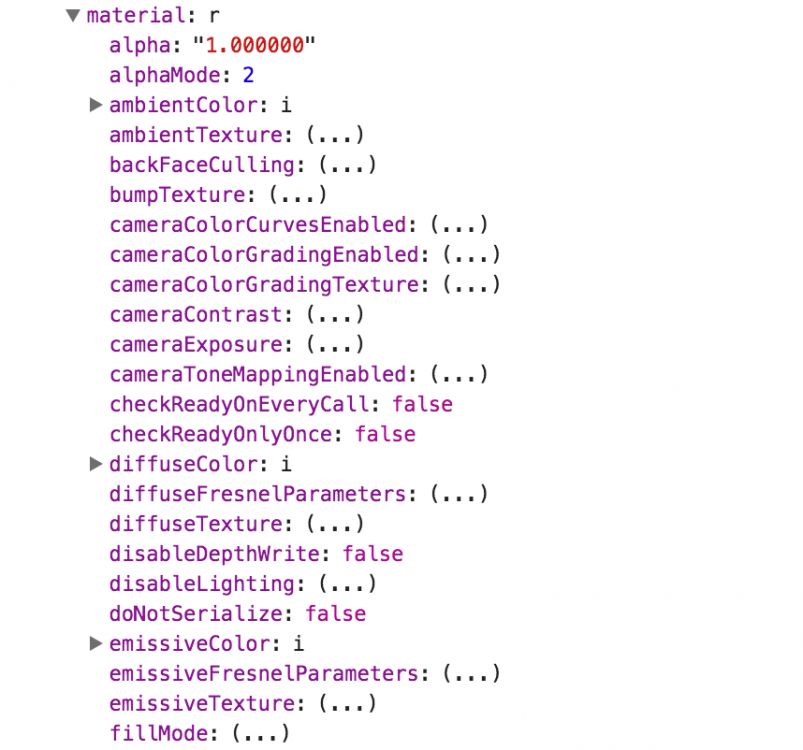

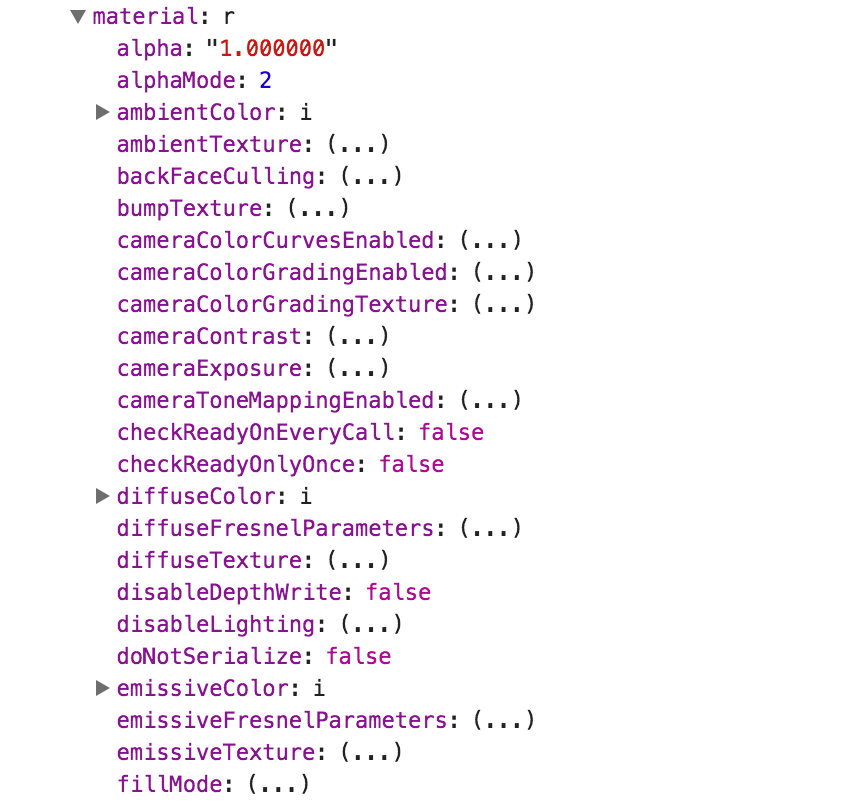

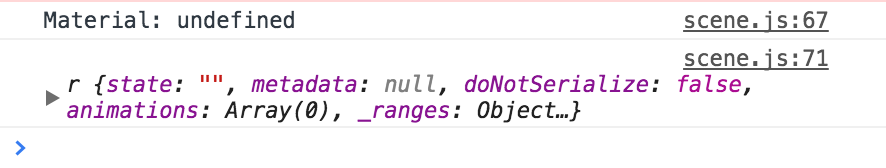

I tried to log the material and mesh object. The material shows undefined, but if you dive into the mesh, you can find the mesh has its material. Why?

I am confused. How to edit the material?

[GameMonetize]

Hey!

Material is loaded asynchronously for.obj file as they are in a separate.mtl file

You should use this to be called when material is ready :

Mesh.onMaterialChangedObservable.add(function(){

});

[Juncheng]

16 hours ago, Deltakosh said:

Hey!

Material is loaded asynchronously for.obj file as they are in a separate.mtl file

You should use this to be called when material is ready :

Mesh.onMaterialChangedObservable.add(function(){

});



Thank you, Deltakosh. I kind of understood what you were doing right here. I tried to listen to the change from the material with my mesh m, but nothing happened.

modelGoldTop.onSuccess = function (task) {
	m = task.loadedMeshes[0];
	m.onMaterialChangedObservable.add(function(){
	    console.log("Material loaded");
    });
};

Is there any documentation for this?

[GameMonetize]

This should work

https://www.babylonjs-playground.com/#HW3HF0

[Dad72]

22 hours ago, Juncheng said:

Thank you, Deltakosh. I kind of understood what you were doing right here. I tried to listen to the change from the material with my mesh m, but nothing happened.

modelGoldTop.onSuccess = function (task) {
	m = task.loadedMeshes[0];
	m.onMaterialChangedObservable.add(function(){
	    console.log("Material loaded");
    });
};

Is there any documentation for this?

Putting this in assetsManager.onFinish can be

m.onMaterialChangedObservable.add(function(){
    console.log("Material loaded");
});

Exemple :

var m;

modelGoldTop.onSuccess = function (task) {
	m = task.loadedMeshes[0];
};

assetsManager.onFinish = function() {
    m.onMaterialChangedObservable.add(function(){
	    console.log("Material loaded");
    });
}:



[Juncheng]

@Deltakosh @Dad72  Hey guys, both of your methods worked. I found the problem for me that I am using an older version v3.0 from Balylon-master. I think onMaterialChangedObservable only available in Balylon v3.1-alpha.

I switched to v3.1-alpha now. It worked. Cheers!
