Making hybrid application with Android and Phaser with WebView(KitKat 4.4)?


spinnerbox
 Share

Recommended Posts

I tried with the good "old" Crosswalk but sadly Android cmd tools were changed so I now cannot build apps with Crosswalk.

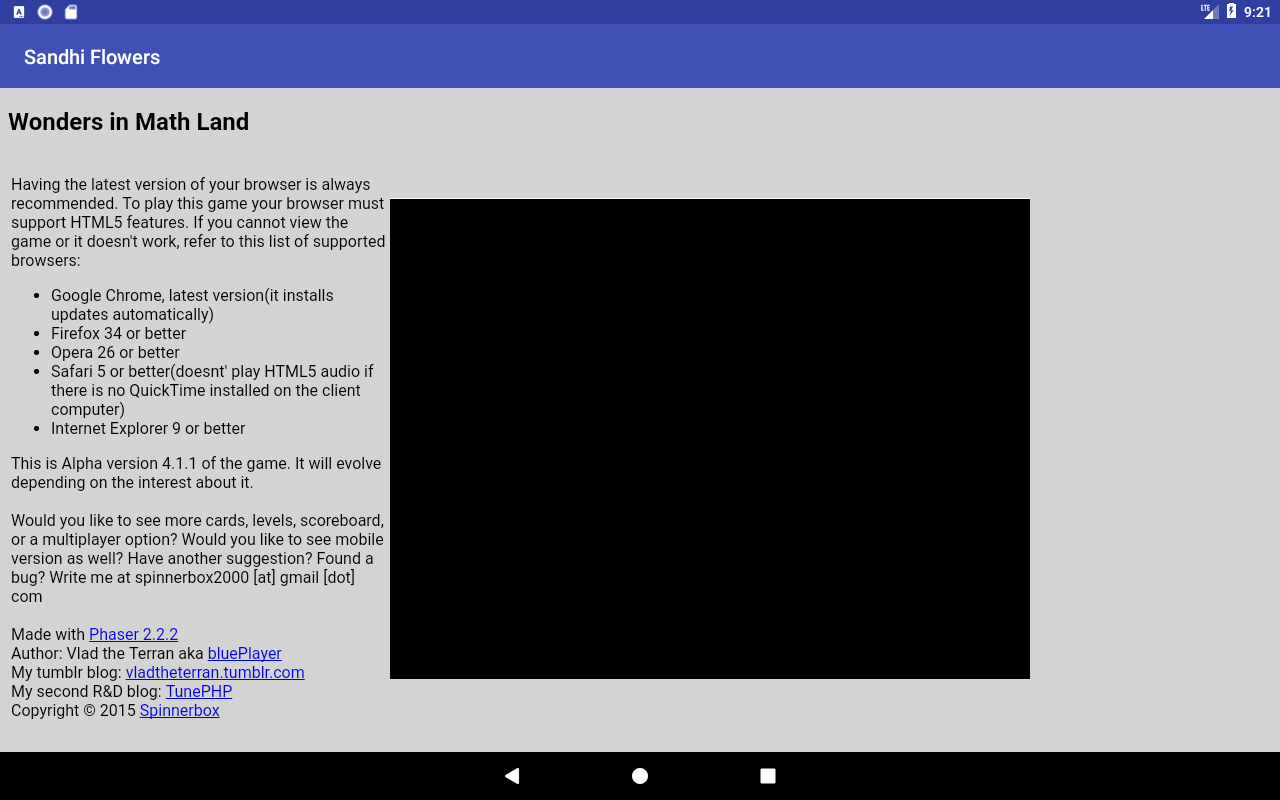

Now there is Android 4.4, KitKat, WebView. I managed to make a hybrid app up and running, however I see the grey background or blank/black canvas instead of my game.

I found some links, and people say that I should disable hardware acceleration for WebView which i did, and then the black canvas appeared.

What do you recommend, switch to newer WebView version or I am missing something?


Android manifest xml:

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="sandhiflowers.game.com" >

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme"
        android:hardwareAccelerated="true"
        >
        <activity android:name=".MainActivity"
            android:hardwareAccelerated="false">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

    <uses-permission android:name="android.permission.INTERNET" />

</manifest>

As you can seen, hardware acceleration was enabled application wide, but disabled only for the MainActivity. Before doing this, no canvas was visible, only the gray page background. When I disabled hardware acceleration then this black rectangle appeared.

My MainActivity.java file:

package sandhiflowers.game.com;

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.webkit.WebSettings;
import android.webkit.WebView;

public class MainActivity extends AppCompatActivity {
    private WebView mWebView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mWebView = (WebView) findViewById(R.id.activity_main_webview);

        WebSettings webSettings = mWebView.getSettings();
        webSettings.setJavaScriptEnabled(true);

        mWebView.setWebViewClient(new MyAppWebViewClient());

    }

    @Override
    public void onResume(){

        mWebView.loadUrl("file:///android_asset/www/index.html");
        super.onResume();

    }

    @Override
    public void onBackPressed() {
        if(mWebView.canGoBack()) {
            mWebView.goBack();
        } else {
            super.onBackPressed();
        }
    }
}

Any ideas?

Link to comment
Share on other sites

Well actually it was on Phaser.AUTO. The problem wasn't the canvas itself, I forgot to add some settings to my webview.

It works even on Android 4.4 but without the audio. On Android 5.1 it works just fine.

Here is my activity code:

package sandhiflowers.game.com;

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.Window;
import android.view.WindowManager;
import android.view.inputmethod.InputMethodManager;
import android.webkit.WebSettings;
import android.webkit.WebView;

public class MainActivity extends AppCompatActivity {
    private WebView mWebView;
    private String GAME_URL = "file:///android_asset/www/index.html";

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        requestWindowFeature(Window.FEATURE_NO_TITLE);
        getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN,
                WindowManager.LayoutParams.FLAG_FULLSCREEN);
        setContentView(R.layout.activity_main);

        mWebView = (WebView) findViewById(R.id.activity_main_webview);

        WebSettings webSettings = mWebView.getSettings();
        webSettings.setJavaScriptEnabled(true);
        webSettings.setDomStorageEnabled(true);
        webSettings.setDatabaseEnabled(true);
        webSettings.setPluginState(WebSettings.PluginState.ON);
        webSettings.setAllowFileAccess(true);
        webSettings.setAllowContentAccess(true);
        webSettings.setAllowFileAccessFromFileURLs(true);
        webSettings.setAllowUniversalAccessFromFileURLs(true);
        webSettings.setUseWideViewPort(true);

        mWebView.setWebViewClient(new MyAppWebViewClient());

        InputMethodManager imeManager = (InputMethodManager) getApplicationContext().getSystemService(INPUT_METHOD_SERVICE);
        imeManager.showInputMethodPicker();

    }

    @Override
    public void onResume(){

        mWebView.loadUrl(GAME_URL);
        super.onResume();

    }

    @Override
    public void onBackPressed() {
        if(mWebView.canGoBack()) {
            mWebView.goBack();
        } else {
            super.onBackPressed();
        }
    }
}

Some parts like

setPluginState(WebSettings.PluginState.ON);

function are deprecated but will post when i find reasonable replacement.

My java helper file:

package sandhiflowers.game.com;

import android.content.Intent;
import android.net.Uri;
import android.webkit.WebView;
import android.webkit.WebViewClient;

/**
 * Created by vlado on 20.9.17.
 */

public class MyAppWebViewClient extends WebViewClient {
    @Override
    public boolean shouldOverrideUrlLoading(WebView view, String url) {
        if(Uri.parse(url).getHost().length() == 0) {
            return false;
        }

        Intent intent = new Intent(Intent.ACTION_VIEW, Uri.parse(url));
        view.getContext().startActivity(intent);
        return true;
    }
}

my manifest file:

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="sandhiflowers.game.com" >

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/Theme.AppCompat.NoActionBar">

        <activity android:name=".MainActivity"
            android:screenOrientation="portrait">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

    <uses-permission android:name="android.permission.INTERNET" />

</manifest>
