[waterMaterial] Level water up or down


Dad72
 Share

Recommended Posts

I noticed two bug with the waterMaterial.

Place a field at 0, 0, 0 and an object above this field. Then add water some time later. You will see that the terrain is climbing 1.0 on the y axis. It is no longer 0, 0, 0

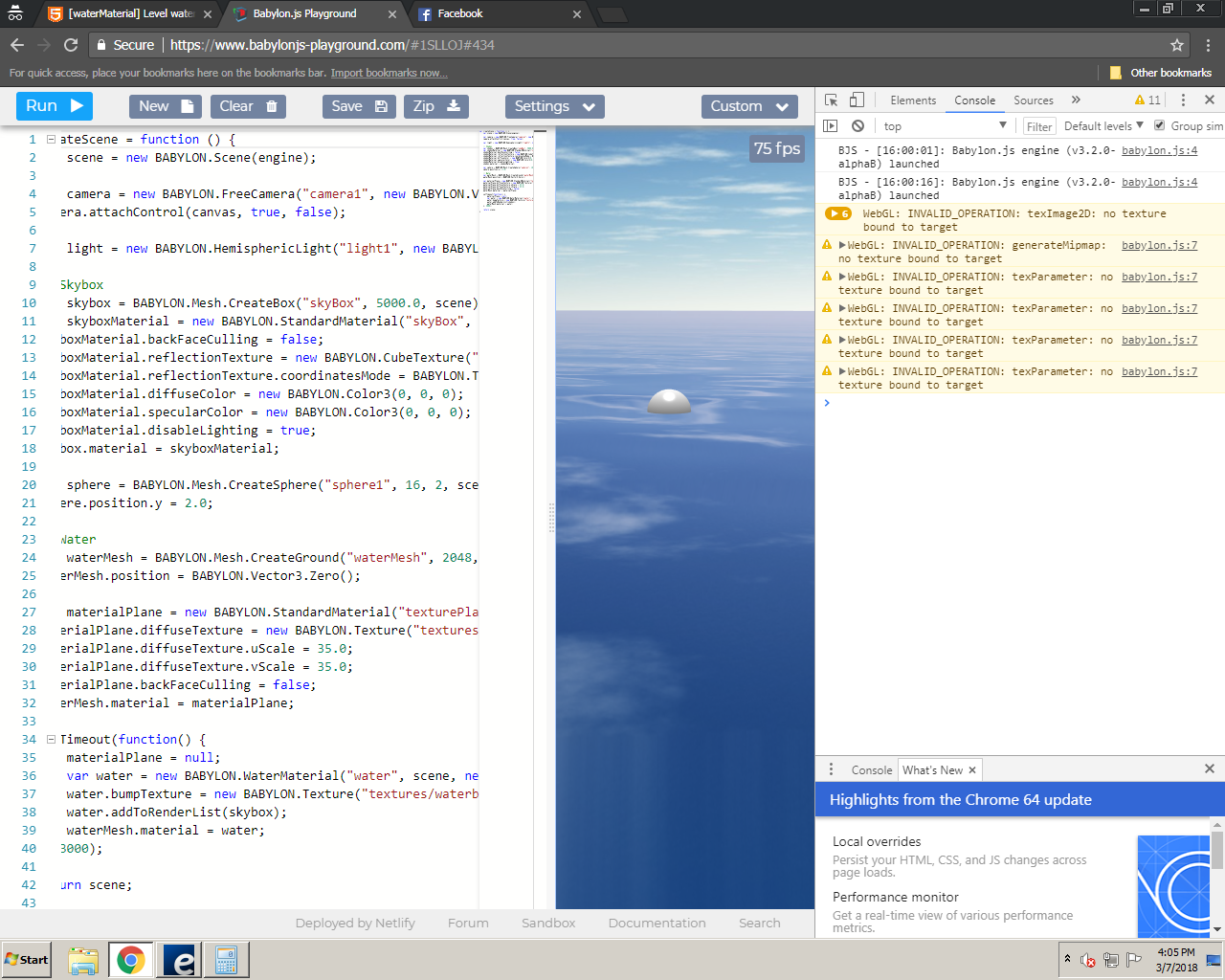

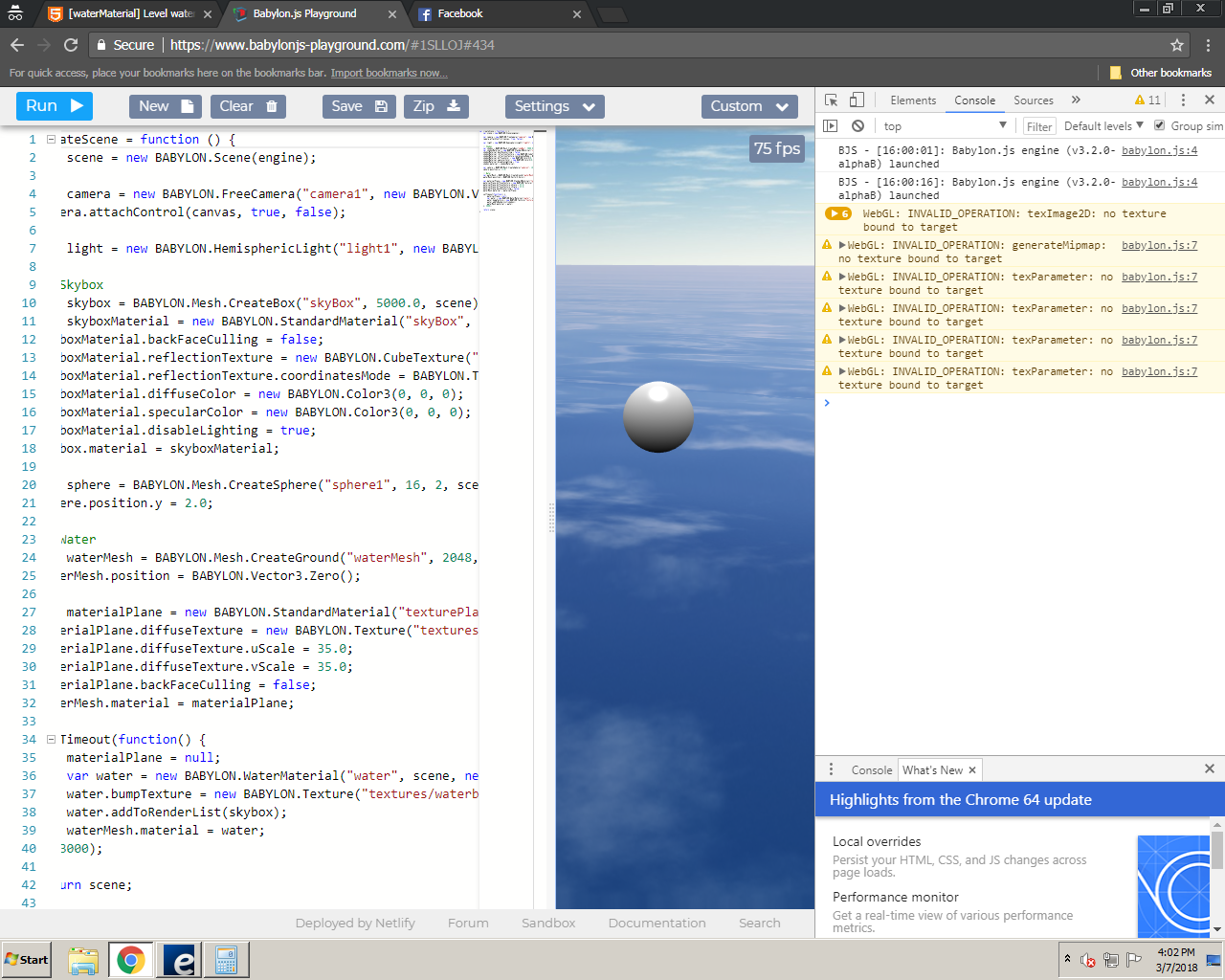

A second problem is that if you now observe the object, the water drops gently on this PG. On my project, it is the opposite the object is gradually found under water, so the ground goes up very very slowly. You have to wait a minute to fully see the problem.

The water moves up or down and it's very subtle but after a while, a boat can be completely underwater or completely overhead.

https://www.babylonjs-playground.com/#1SLLOJ#434

Link to comment
Share on other sites

I can almost guarantee its:
https://github.com/BabylonJS/Babylon.js/blob/master/materialsLibrary/src/water/water.vertex.fx#L129


	vec3 p = position;
	float newY = (sin(((p.x / 0.05) + time * waveSpeed)) * waveHeight * windDirection.x * 5.0)
			   + (cos(((p.z / 0.05) +  time * waveSpeed)) * waveHeight * windDirection.y * 5.0);
	p.y += abs(newY);

I would just see if we can nerf out the p.y+=abs(newY) for now if that it will fix it.

https://www.babylonjs-playground.com/#1SLLOJ#435
...Nope that did not seem to fix it...

Hmmm I gotta do some thinking now.

Link to comment
Share on other sites

actually it looks like what I am doing is not replacing the shader, so I bet it would fix it if the changes I made propagated.

That is the only place anywhere on the shader that it manipulates the height so has to be responsible for that glitch.

Perhaps a Parallax Displacement would work better?
http://graphics.cs.brown.edu/games/SteepParallax/index.html
