Question objfileloader Multimaterial


Recommended Posts

I tried to import the obj file, and obj contained a number of posts, but in babylonjs, it seemed that each child's map was replaced with the last one.

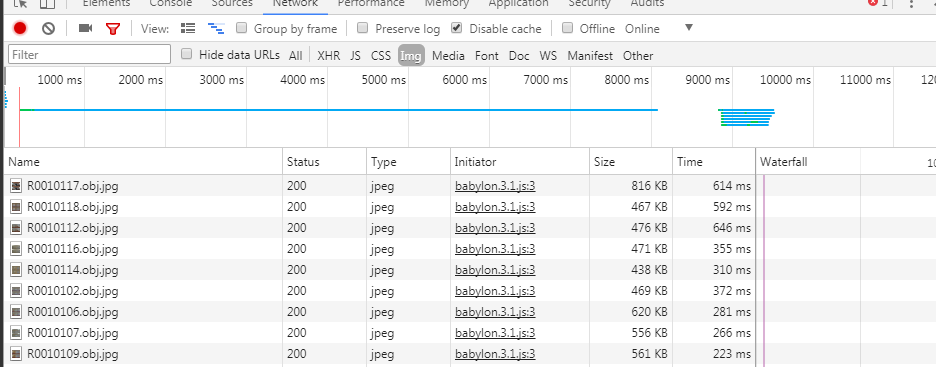

I looked at the console, and the network window shows these stickers loaded.


Here's the demo:http://www.babylonjs-playground.com/#E5KRAX

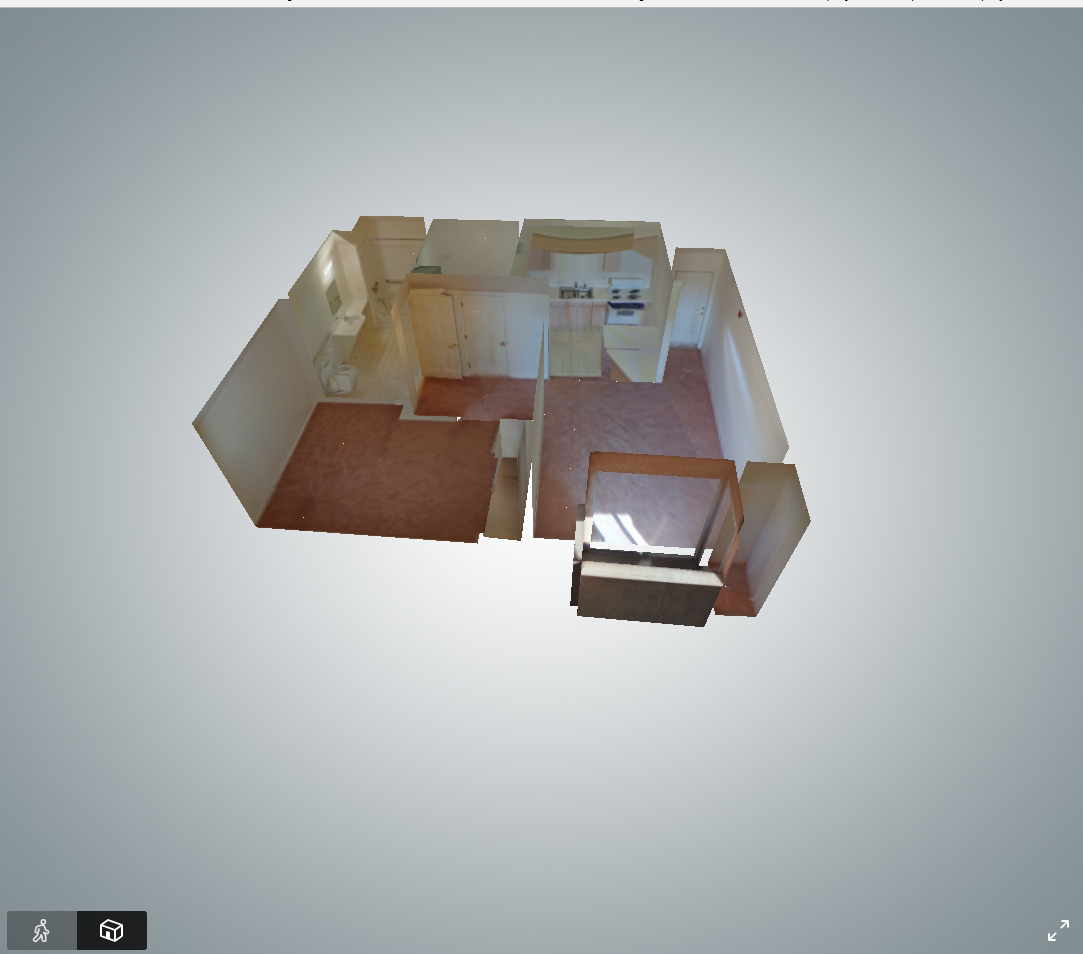

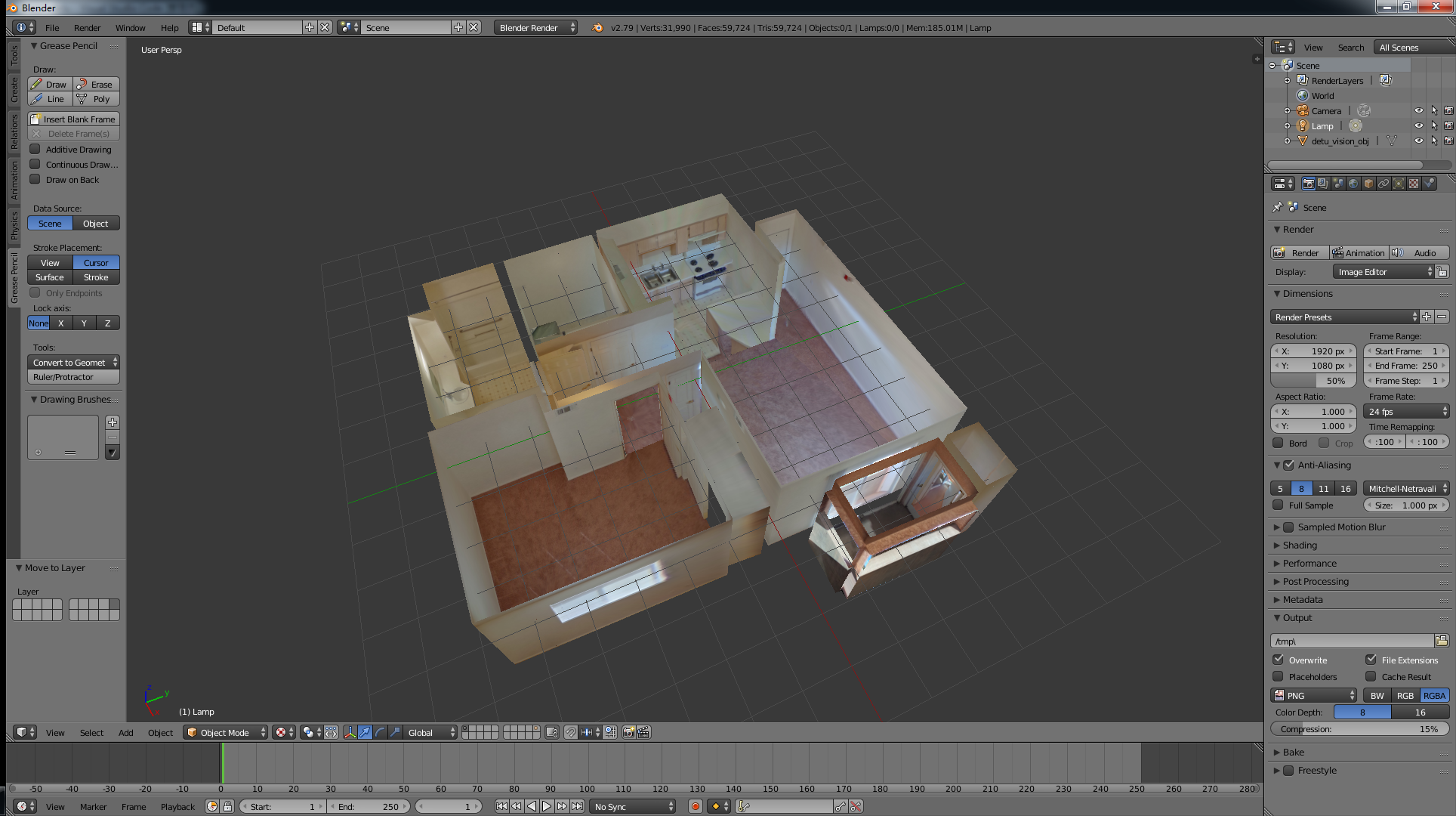

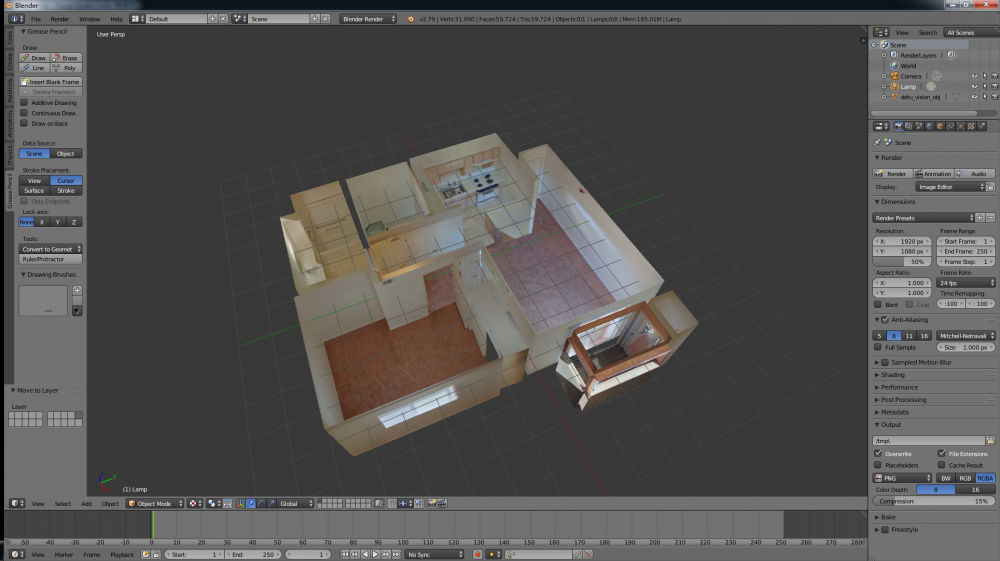

The correct effect should be:

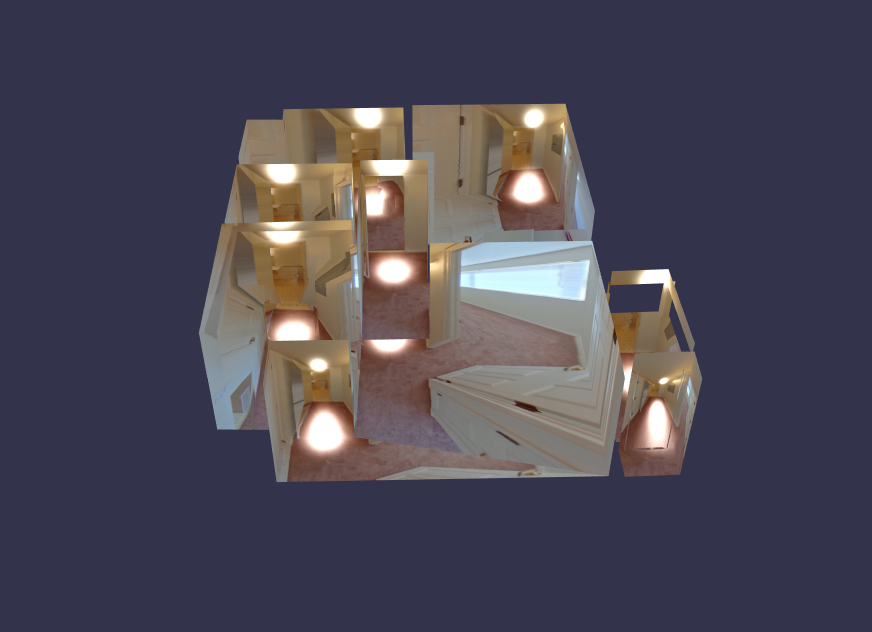

babylonjs:(The wrong)




Link to comment
Share on other sites

hi @renjianfeng,

the OBJ file you pasted has no group or object definitions (keys 'o' and 'g'), which prevents babylon from knowing which mesh is which. Babylon will use the entire vertex data you provided and will convert it to a single mesh with one material. is it possible for you to export mesh names as well? if you use blender, it is the option to export "Objects as OBJ Objects", or "Groups", both should actually work.


Link to comment
Share on other sites

9 hours ago, Deltakosh said:

If you are in Blender, why not directly using the .babylonjs format? It will be far better than obj

Yes, but all the models currently are in.obj format, and the number is very large. I can only use a method that can be used in batches.:(

Link to comment
Share on other sites
