Issue with texture smoothing


Recommended Posts

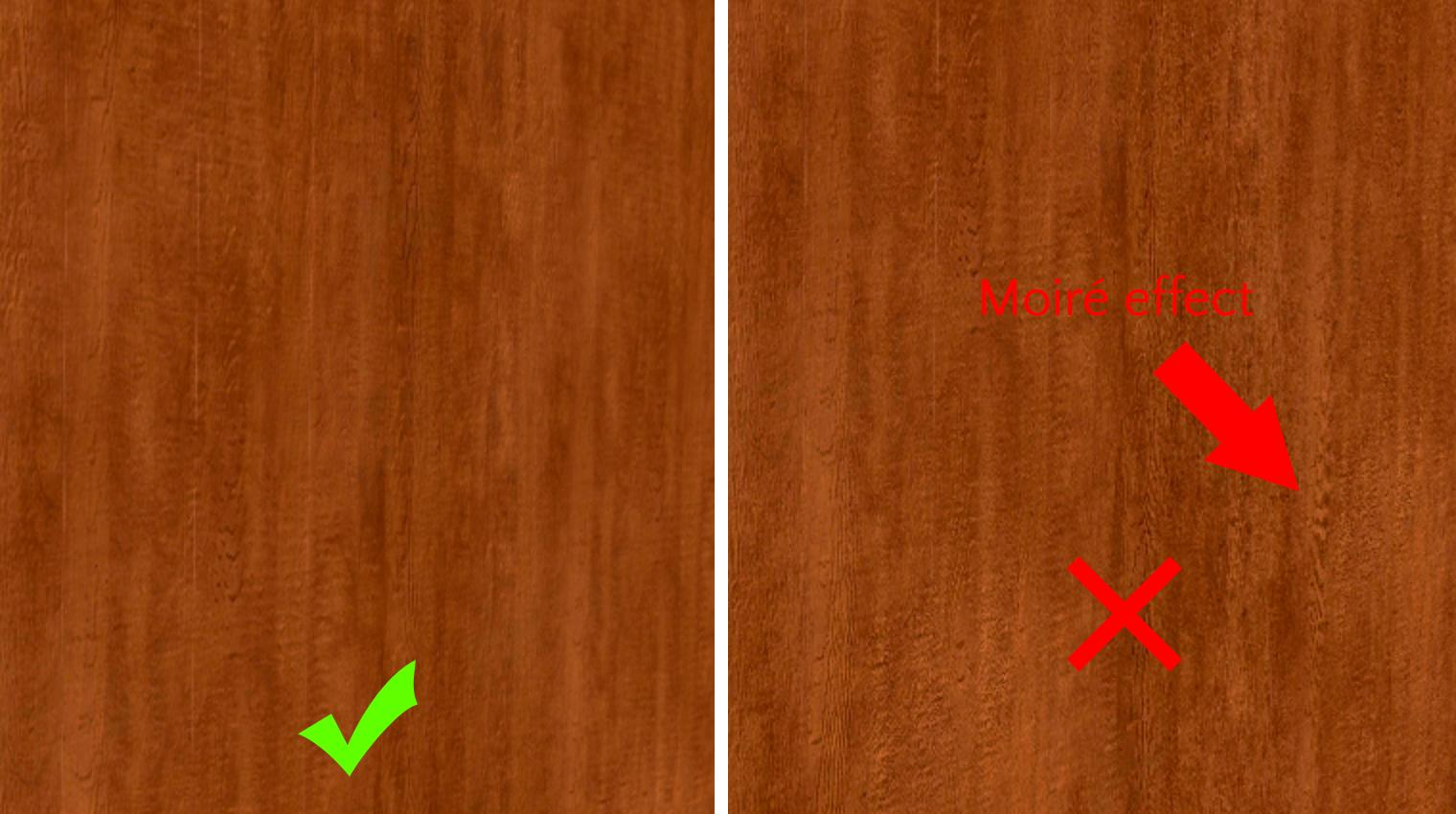

I think I am missing something in regards to texture smoothing. My situation is pretty basic as I am just trying to swap out the diffuse texture on a material with another one. However, when I do, the texture goes from looking smooth the very poorly anti-aliased. (In the example below I used the same .jpg so that it was easier to see the difference)





for(i=0; i<window.sidingShaders.length; i++){
    uScale = window.sidingShaders[i].diffuseTexture.uScale
    vScale = window.sidingShaders[i].diffuseTexture.vScale
    var otherTexture = new BABYLON.Texture("babylon/textures/" + imageName + ".jpg",window.scenario, true, true, null,

function() {
    for(i=0; i<window.sidingShaders.length; i++){
        otherTexture.samplingMode = 2
        window.sidingShaders[i].diffuseTexture = otherTexture;
        window.sidingShaders[i].diffuseTexture.uScale = uScale
        window.sidingShaders[i].diffuseTexture.vScale = vScale



Link to comment
Share on other sites

Ok, so its turned out to be one of those things that I look for hours for a solution and then right after I post I figure it out. But for anyone else who may run into a similar issue, adding BABYLON.Texture.TRILINEAR_SAMPLINGMODE solved the issue.

var otherTexture = new BABYLON.Texture("babylon/textures/" + imageName + ".jpg", window.scenario, false, true, BABYLON.Texture.TRILINEAR_SAMPLINGMODE,


Link to comment
Share on other sites

It's just the options you have put in your texture constructor which are wrongs.

https://www.babylonjs-playground.com/#K4S3GU#23 (line 27 to choose texture01 or 02)


[edit] by the way I think I will try to patch the doc to be able to see which number equel which value in samplingMode
