Coding challenges for future game developers

CodeGuppy · October 19, 2019

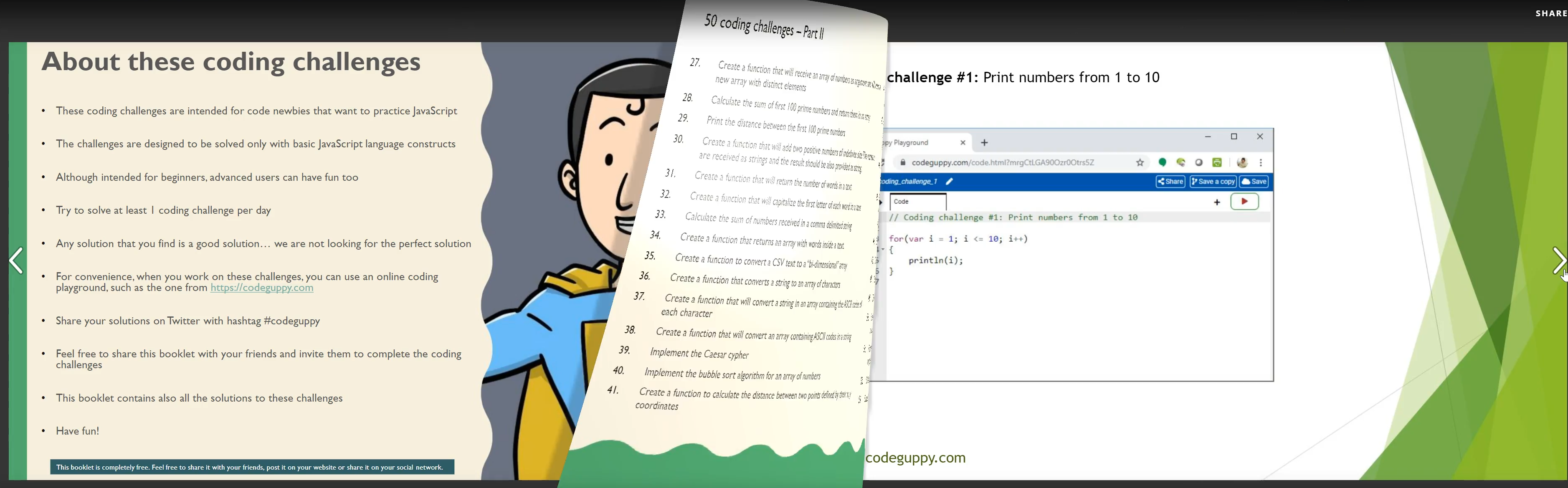

I want to share a small PDF booklet with JavaScript coding challenges:

https://codeguppy.com/site/download/50_coding_challenges.pdf

These coding challenges are designed for beginners and intended to offer the foundation that they may need when developing mini-games on https://codeguppy.com or any other platform.

8Observer8 · October 20, 2019

I am not beginner but I know how to make it more hard for me. I will write Unit Tests using Jasmine Framework. I study TDD and this challenge is useful for me. I use TypeScript.

1. Print numbers from 1 to 10. We expect that the array with numbers [1, 2, 3, 4, 5, 6, 7, 8, 9, 10] will be generated. I wrote this unit test first. It is TDD in action.

Playground: https://next.plnkr.co/edit/NJHyFVGFXJjCaZSV?preview

KataTests.ts

import Kata from "../../src/client/Kata";

describe("KataTests", () =>
{
    it("GetNumbersFrom1to10_ReturnsNumbersfrom1to10", () =>
    {
        // Arrange
        let expectedArray = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10];

        // Act
        let actualArray = Kata.GetNumbersFrom1To10();

        // Assert
        expect(actualArray).toEqual(expectedArray);
    });
});

Kata.ts


export default class Kata
{
    public static GetNumbersFrom1To10(): number[]
    {
        return [1, 2, 3, 4, 5, 6, 7, 8, 9, 10];
    }
}

Program.ts


import Kata from "./Kata";
import Output from "./Output";

class Program
{
    public static Main(): void
    {
        // Get array
        let resultArray = Kata.GetNumbersFrom1To10();

        // Print array
        resultArray.forEach((element) =>
        {
            Output.Instance.Print(element.toString());
        });
    }
}

// Debug Version
Program.Main();

// Release Version
// window.onload = () => Program.Main();

8Observer8 · October 21, 2019

I want to find challenges for practice with WebGL features. If we know how to draw and move a rectangle we can write a lot of simple games like: breakout, snake, tetris and so on. I use the glMatrix library for linear algebra.

Colored Rectangle with translation: https://jsfiddle.net/8Observer8/t2q4rmnm/


Just save it in the index.html file and run in browser. It is JavaScript ES5:

index.html

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <title>WebGL 1.0. Translate a square using glMatrix</title>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/gl-matrix/2.4.0/gl-matrix-min.js"></script>
    <style>
        #renderCanvas {
            border: 5px solid #aaaaaa;
        }
    </style>
</head>

<body>
    <canvas id="renderCanvas" width="250" height="250"></canvas>

    <script>
        var vertexShaderSource =
            `attribute vec2 a_Position;
            uniform mat4 u_ModelMatrix;

            void main()
            {
                gl_Position = u_ModelMatrix * vec4(a_Position, 0.0, 1.0);
            }`;

        var fragmentShaderSource =
            `precision mediump float;
            uniform vec3 u_Color;

            void main()
            {
                gl_FragColor = vec4(u_Color, 1.0);
            }`;

        var gl = document.getElementById("renderCanvas").getContext("webgl");

        var vShader = gl.createShader(gl.VERTEX_SHADER);
        gl.shaderSource(vShader, vertexShaderSource);
        gl.compileShader(vShader);

        var fShader = gl.createShader(gl.FRAGMENT_SHADER);
        gl.shaderSource(fShader, fragmentShaderSource);
        gl.compileShader(fShader);

        var program = gl.createProgram();
        gl.attachShader(program, vShader);
        gl.attachShader(program, fShader);
        gl.linkProgram(program);
        gl.useProgram(program);

        var vertices = new Float32Array([
            -0.5, 0.5, -0.5, -0.5, 0.5, 0.5, 0.5, -0.5
        ]);

        var vbo = gl.createBuffer();
        gl.bindBuffer(gl.ARRAY_BUFFER, vbo);
        gl.bufferData(gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW);

        var a_Position = gl.getAttribLocation(program, "a_Position");
        gl.vertexAttribPointer(a_Position, 2, gl.FLOAT, false, 0, 0);
        gl.enableVertexAttribArray(a_Position);

        var u_Color = gl.getUniformLocation(program, "u_Color");
        gl.uniform3f(u_Color, 0.635, 0.450, 0.125);

        var modelMatrix = mat4.create();
        mat4.translate(modelMatrix, modelMatrix, vec3.fromValues(0.3, 0.3, 0.0));

        var u_ModelMatrix = gl.getUniformLocation(program, "u_ModelMatrix");
        gl.uniformMatrix4fv(u_ModelMatrix, false, modelMatrix);

        gl.clearColor(0.898, 0.984, 0.905, 1.0);
        gl.clear(gl.COLOR_BUFFER_BIT);

        gl.drawArrays(gl.TRIANGLE_STRIP, 0, 4);
    </script>
</body>

</html>

8Observer8 · October 21, 2019

Final example in WebGL 1.0 and JavaScript. Textured Rectangle: https://jsfiddle.net/zjydm1ev/


You need run it from local server. I use http-server. Install it using the command: npm i http-server -g And run it in place where the index.html file is: http-server

index.html

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <title>WebGL 1.0. Applying a texture to a square</title>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/gl-matrix/2.4.0/gl-matrix-min.js"></script>
    <style>
        #renderCanvas {
            border: 5px solid #aaaaaa;
        }
    </style>
</head>

<body>
    <canvas id="renderCanvas" width="250" height="250"></canvas>

    <script>
        var vertexShaderSource =
            `
            attribute vec2 a_Position;
            attribute vec2 a_TexCoord;
            uniform mat4 u_ModelMatrix;
            varying vec2 v_TexCoord;

            void main()
            {
                gl_Position = u_ModelMatrix * vec4(a_Position, 0.0, 1.0);
                v_TexCoord = a_TexCoord;
            }`;

        var fragmentShaderSource =
            `
            precision mediump float;
            uniform sampler2D u_Sampler;
            varying vec2 v_TexCoord;

            void main()
            {
                gl_FragColor = texture2D(u_Sampler, v_TexCoord);
            }`;

        var gl = document.getElementById("renderCanvas").getContext("webgl");

        var vShader = gl.createShader(gl.VERTEX_SHADER);
        gl.shaderSource(vShader, vertexShaderSource);
        gl.compileShader(vShader);

        var fShader = gl.createShader(gl.FRAGMENT_SHADER);
        gl.shaderSource(fShader, fragmentShaderSource);
        gl.compileShader(fShader);

        var program = gl.createProgram();
        gl.attachShader(program, vShader);
        gl.attachShader(program, fShader);
        gl.linkProgram(program);
        gl.useProgram(program);

        var verticesAndTexCoords = new Float32Array([
            -0.5, 0.5, 0.0, 1.0,    // (x, y), (u, v)
            -0.5, -0.5, 0.0, 0.0,
            0.5, 0.5, 1.0, 1.0,
            0.5, -0.5, 1.0, 0.0
        ]);

        var vbo = gl.createBuffer();
        gl.bindBuffer(gl.ARRAY_BUFFER, vbo);
        gl.bufferData(gl.ARRAY_BUFFER, verticesAndTexCoords, gl.STATIC_DRAW);

        var FSIZE = verticesAndTexCoords.BYTES_PER_ELEMENT;

        var a_Position = gl.getAttribLocation(program, "a_Position");
        gl.vertexAttribPointer(a_Position, 2, gl.FLOAT, false, 4 * FSIZE, 0);
        gl.enableVertexAttribArray(a_Position);

        var a_TexCoord = gl.getAttribLocation(program, "a_TexCoord");
        gl.vertexAttribPointer(a_TexCoord, 2, gl.FLOAT, false, 4 * FSIZE, 2 * FSIZE);
        gl.enableVertexAttribArray(a_TexCoord);

        var image = new Image();

        image.onload = function ()
        {
            gl.pixelStorei(gl.UNPACK_FLIP_Y_WEBGL, 1);
            gl.activeTexture(gl.TEXTURE0);

            var texture = gl.createTexture();
            gl.bindTexture(gl.TEXTURE_2D, texture);
            gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.LINEAR);
            gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGB, gl.RGB, gl.UNSIGNED_BYTE, image);

            var u_Sampler = gl.getUniformLocation(program, "u_Sampler");
            gl.uniform1i(u_Sampler, 0);

            var modelMatrix = mat4.create();
            mat4.scale(modelMatrix, modelMatrix, vec3.fromValues(1.5, 1.5, 1.5));

            var u_ModelMatrix = gl.getUniformLocation(program, "u_ModelMatrix");
            gl.uniformMatrix4fv(u_ModelMatrix, false, modelMatrix);

            gl.clearColor(0.898, 0.984, 0.905, 1.0);
            gl.clear(gl.COLOR_BUFFER_BIT);

            gl.drawArrays(gl.TRIANGLE_STRIP, 0, 4);
        }
        image.crossOrigin = "";
        image.src = 'https://dl.dropboxusercontent.com/s/xi091ya34qqzda2/lightblueflower.jpg';
    </script>
</body>

</html>

8Observer8 · October 23, 2019

I think this challenge can be useful for me. I just think how to make challenges for learning WebGL. For example, draw 5 cube, make a pyramid using cube. The CodeGuppy web site is very good. I found a lot of tutorials that I can translate to TypeScript/WebGL 1.0 and C#/OpenTK/OpenGL30. I created a few cards on Trello.

I will try to solve these 50 tasks from this topic in 3 languages: TypeScript, C# and Python with Unit Tests because I need a practice with TDD (Test-Driven Development). I really like to write Unit Tests. I will create cards for the challenges and repository on GitHub.

Edited October 23, 2019 by 8Observer8
