Better Collision Detection

Recommended Posts

Currently, the Sprites in my game only have rectangular collision detection, but more complex shapes for their hitArea. This makes drag & drop very nice but I am wondering if the same is possible for collision detection. Somehow, Scratch has this ability. As shown here, even for shapes where a hull would not be very good, the collision detection is still perfect. Anyone have an idea if this can be done in PIXI? Or am I just limited to rectangular collision detection?



For example, a sample sprite I have looks like this:




And the hitArea I generated looks like this:

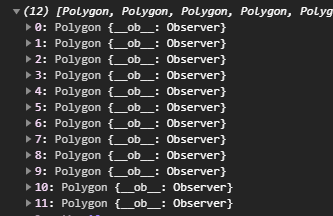

The hit area is represented as an array of polygons:




Assuming each of my sprites also has a hitArea of N polygons, is there a library I can use to detect collision between the two?  I looked at the Separate Axis Theorem, but that seems to only work when each sprite can be represented as a single polygon. However, mine are represented as many polygons together.



Any suggestions?

Share this post


Link to post
Share on other sites

PixiJS does not have physics. At all. the only physics it does have is contains() for different shapes.

Take p2 https://github.com/schteppe/p2.js , build from source (not from npm!!!!, just use "grunt" to do that), make pixi stage and physics world separated, store pixi/p2 components in your own entity class. The usual ECS-y architecture.

Here is how its done: https://codesandbox.io/s/smoosh-river-fie1l

Edited by ivan.popelyshev
