celian-garcia Posted July 11, 2014 Share Posted July 11, 2014 Hello everybody ! I've just made a function which will permite to create a tiled ground. There is several applications for it : board games, tiled map textures...Check out the github https://github.com/kostar111/TiledGroundBJS I'd like to know if the function seems to be easy to use or not, in order to make an eventual pull request. Parameters of the function are :xmin, zmin, xmax, zmax : correspond to the extent of the future tiled ground.precision : number of subdivisions inside a tile (precision.w = subdivisions in the width & precision.h = subdivisions in the height)subdivisions : number of tiles (subdivisions.w = number of tiles in the width & subdivisions.h = number of tiles in the heightBasically it is very similar to the VertexData.CreateGround function but with differents indices so we could use BABYLON.MultiMaterial to apply materials by tiles. Here are some jsfiddle you can play withhttp://jsfiddle.net/q9d28/ chesshttp://jsfiddle.net/4h35v/3/ space-invaders character Moon and Wingnut 2 Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted July 11, 2014 Share Posted July 11, 2014 Love it! sincerely! Why not using playground btw? celian-garcia 1 Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted July 12, 2014 Author Share Posted July 12, 2014 Thank you ! I didn't use playground because I didn't found how to link my function in external ressource.But in fact I could have copy&paste the function in it ^^ Next time I'll probably use it ! Quote Link to comment Share on other sites More sharing options...

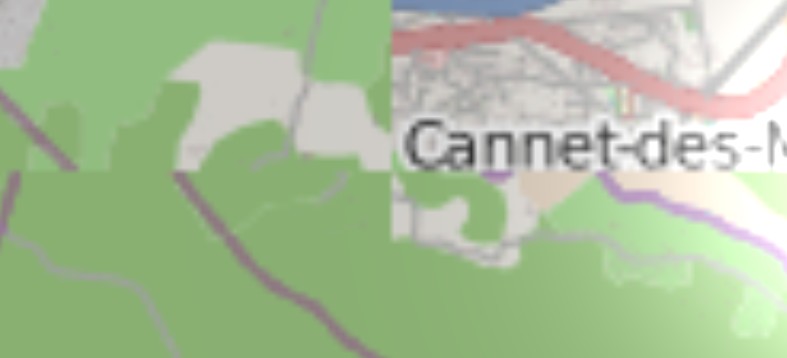

celian-garcia Posted July 15, 2014 Author Share Posted July 15, 2014 I just find a thing really strange, if we look at the map demo, we can see there is a "jump" between differents materials of the MultiMaterial object. but if I use a Multimaterial with only one material duplicated, the jump disappeared It looks like the first pixel's column of the texture was duplicated (or moved) in the last pixel's columnAnd idem for the rows. So I think the jump is already there at the second picture but we don't see it because it is a pixel's column which correspond with first pixel's column of the next texture. I don't know if I am clear because it is not so easy to explain, moreover in English ^^ I prepare something more clear and visible. Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted July 15, 2014 Author Share Posted July 15, 2014 I made an example more clear herehttp://kostar111.github.io/TiledGroundBJS/materialBug/ I just made a plane and applied this texture : The texture have on the left a white column and on the right a red column .If we look at the demo I've made, we can see a white column after the red one, and a red column before the white one. How can it be explained ? Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted July 15, 2014 Share Posted July 15, 2014 Sounds like there is something wrong with your uv[] Could you get the value of UV for each vertex and be sure that they are right? Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted July 15, 2014 Author Share Posted July 15, 2014 The code I use in the last examplehttp://kostar111.github.io/TiledGroundBJS/materialBug/is as simple as that : var ground = new BABYLON.Mesh.CreatePlane("ground", 1, scene);ground.rotation.x = Math.PI/2;var material1 = new BABYLON.StandardMaterial( "material1", scene);material1.diffuseTexture = new BABYLON.Texture( "texture.png", scene);ground.material = material1;And I've console.logged the uvs in the demo and here I have [0, 0, 1, 0, 1, 1, 0, 1] Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted July 15, 2014 Author Share Posted July 15, 2014 I precise I'm talking about really thin columns which seem to be no more large than one pixel. You need to zoom to see it. Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted July 16, 2014 Share Posted July 16, 2014 Ok this is linked to texture wrapping. To remove this effect: material1.diffuseTexture.wrapU = BABYLON.Texture.CLAMP_ADDRESSMODE; material1.diffuseTexture.wrapV = BABYLON.Texture.CLAMP_ADDRESSMODE; Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted July 16, 2014 Author Share Posted July 16, 2014 Ok it fixed the problem with Planes and Grounds so it will be fixed in Geotrek 3D ! Thank you very much =) . but .. not with the TiledGround :/ I'll try to fix it tomorrow. There is something wrong on my uvs values I think or maybe the wrapping behaviour is different with submaterials ? So I made the pull request maybe a little fast ^^ Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted July 17, 2014 Author Share Posted July 17, 2014 Ok the clamp trick works with the TiledGround now ! Here is the result : http://kostar111.github.io/TiledGroundBJS/map/ -> No jump at all ! The stilling "problem" is I had to duplicates positions which are in the joints : you know, one with u = 1 at the end of the tile and one with u = 0 at the beginning of the next tile (idem with v values), and I don't know what would be the behaviour with collisions or Ray intersections for example if the ray come exactly in the joint.I'll test these kind of situations and come back later. But I'm relatively confident ^^ Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted July 17, 2014 Share Posted July 17, 2014 And please do a TS pull request Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted July 17, 2014 Author Share Posted July 17, 2014 Oh yes I'll try it I'm not familiar with it but I think it is not "sorcier". (I was not familiar with JS 5 months ago haha)I can include also old cylinder's changings to the Mesh.CreateCylinder() function just to include the subdivisions parameter. And about Geometry I could update the Cylinder one and create a TiledGround one using this code formatvar Ground = (function (_super) { __extends(Ground, _super); function Ground(id, scene, width, height, subdivisions, canBeRegenerated, mesh) { this.width = width; this.height = height; this.subdivisions = subdivisions; _super.call(this, id, scene, this._regenerateVertexData(), canBeRegenerated, mesh); } Ground.prototype._regenerateVertexData = function () { return BABYLON.VertexData.CreateGround(this.width, this.height, this.subdivisions); }; Ground.prototype.copy = function (id) { return new Ground(id, this.getScene(), this.width, this.height, this.subdivisions, this.canBeRegenerated(), null); }; return Ground;})(_Primitive);Primitives.Ground = Ground; Anyway I'll try it all and see if it working well. And obviously in TypeScript too. Bye GameMonetize 1 Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted July 20, 2014 Author Share Posted July 20, 2014 I made the PR and I think all the things I said are into. Say me if you see something wrong Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted July 21, 2014 Share Posted July 21, 2014 "I chose to use GroundMesh but for the moment, optimize() function doesn't work with these new tiled grounds. (as expected)" So I cannot validate the PR Why not Mesh as parent? Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted July 21, 2014 Author Share Posted July 21, 2014 I understand, yeah I can make it with mesh. I've just found cool the new groundMesh class in particular the getHeightAtCoordinates() function which is simple but can be useful.I would prefer to find a way to modify the optimize function but for the moment I'll change GroundMesh to Mesh. By the way I found something weird with this last function and I think I resolved it. Here is the topic http://www.html5gamedevs.com/topic/8015-getheightatcoordinates-return-wrong-value/ if you want to see it. Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted July 21, 2014 Author Share Posted July 21, 2014 PR updated ! Mesh is now the parent Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted July 21, 2014 Share Posted July 21, 2014 And validated!!! Could you update the wiki?https://github.com/BabylonJS/Babylon.js/wiki/02-Basic-elements Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted July 21, 2014 Author Share Posted July 21, 2014 Sure !Tomorrow I'll do an article about How set MultiMaterials of a TiledGround in Makina Corpus website. Maybe it could be linked in the wiki after, in MultiMaterials section ? Anyway I'll send you the link when it is done. Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted July 21, 2014 Share Posted July 21, 2014 For sure!!!!!!! Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted July 23, 2014 Author Share Posted July 23, 2014 Tiled grounds now in Babylon.js, for anyone who want to use it, here is the tutorial http://makina-corpus.com/blog/metier/how-to-use-multimaterials-with-a-tiled-ground-in-babylonjs Wingnut, Temechon and Dad72 3 Quote Link to comment Share on other sites More sharing options...
Dad72 Posted July 23, 2014 Share Posted July 23, 2014 Thanks. celian-garcia 1 Quote Link to comment Share on other sites More sharing options...
Wingnut Posted August 14, 2014 Share Posted August 14, 2014 Kostar111 ... I am working on a fresher tutorial #2... its at... https://github.com/BabylonJS/Babylon.js/wiki/zzz-work-in-progress-02 Just a slight adjustment to your edit, and i put a link to your very cool tiled ground tutorial... in there, as well. Hope you approve. If you'd like to make an edit to the tiled ground area... within that work-in-progress document... please do, and I will make sure your edit "holds" through all my future document edits/pastes. I love your tiled ground tutorial... it totally rocks! Nice work! celian-garcia 1 Quote Link to comment Share on other sites More sharing options...
celian-garcia Posted August 19, 2014 Author Share Posted August 19, 2014 Nice ! I like it =) Sure I approve it. Aaand I have no edit to make I found it good, you are surely a better writer than me , seeing the big comments you make usually in the forum. Oo I don't know if I can change "kostar111" name in Github but I don't like it I'll probably change it if I can. Thank you very much for your consideration ! And see you in September 'cause I'm in holidays haha Wingnut 1 Quote Link to comment Share on other sites More sharing options...
