2D Point always same size in a 3D Mesh

[Michuspo]

Hi,

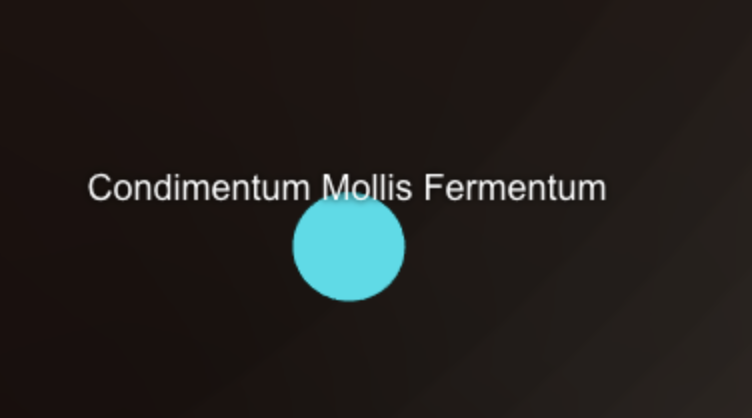

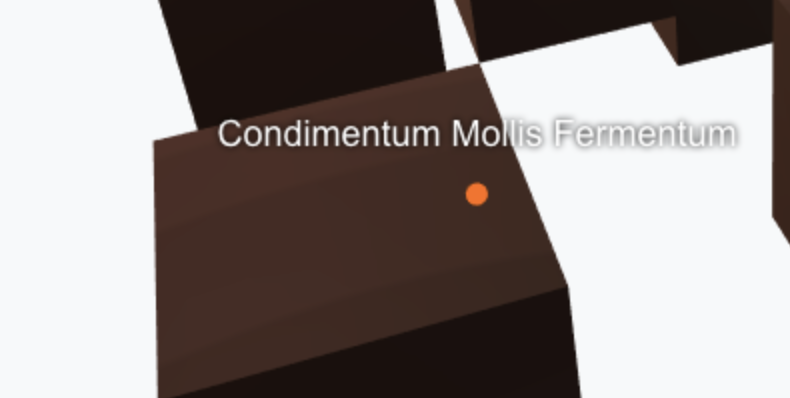

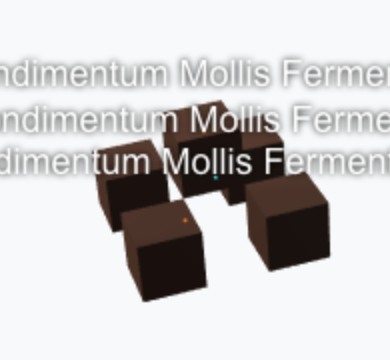

I'm trying to create a 2D point (or circle) on a mesh, but I need it will be the same size (maybe in pixel). Do you know how to do it? Now, I'm trying to create and sphere and use fragment shader for the color, but as you can see, the 2D Point changes depending of the camera position. Any idea?

Thanks,





[NasimiAsl]

hi

you most use GUI tools for that i guess but

i just try make it by custommaterial  a circle on box not circle on screen

https://www.babylonjs-playground.com/#1KUUC3#1

https://www.babylonjs-playground.com/#1KUUC3#2 with rounded box

[Michuspo]

Hi NasiamiAsl,

Thanks for your quick answer! It is great! Do you think is possible the point always will be oriented to the camera, in other words, always you see a Circle?

Thanks,

[Michuspo]

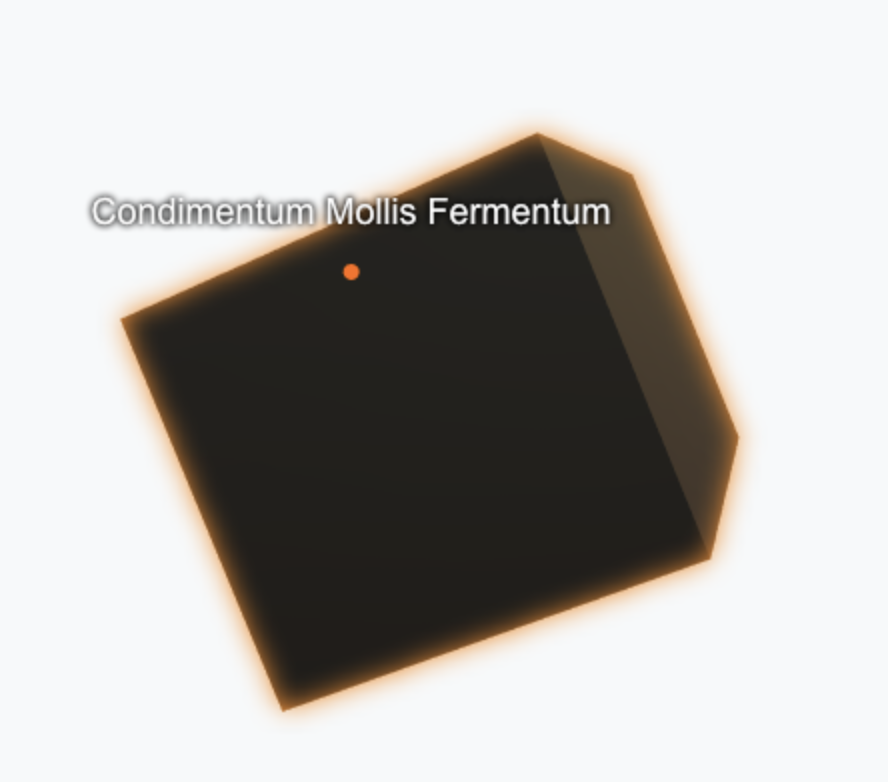

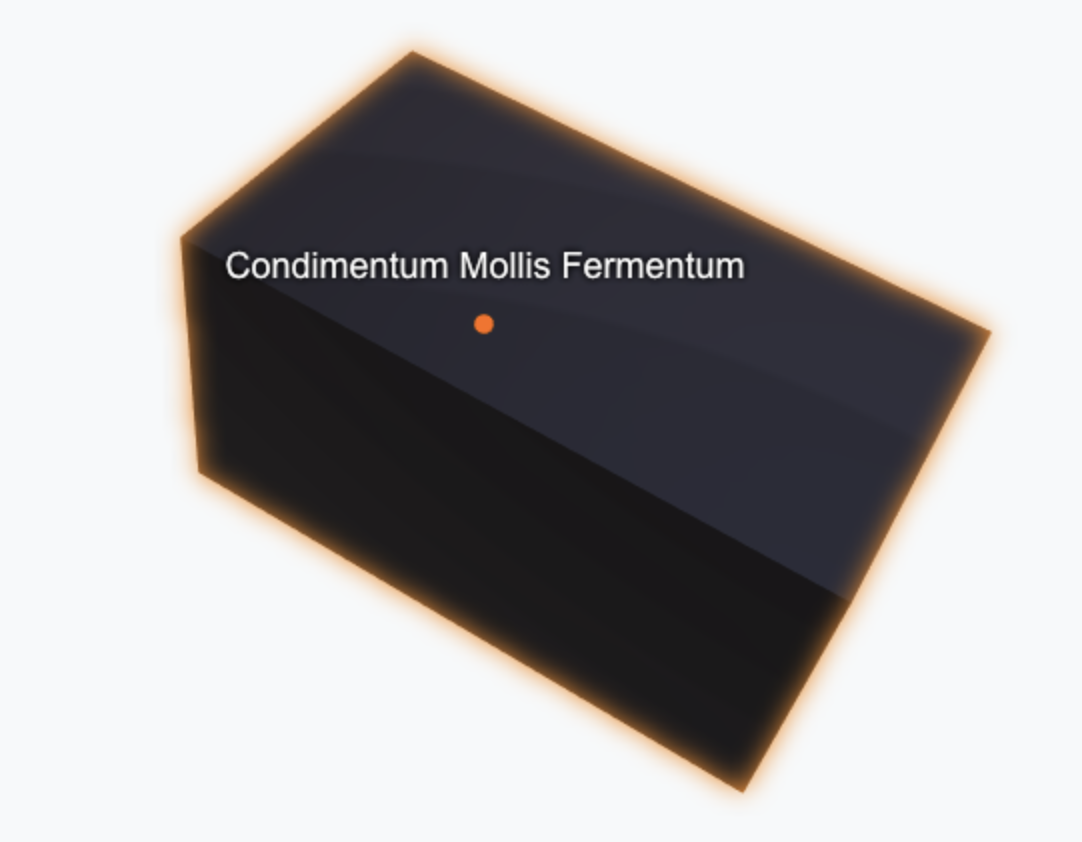

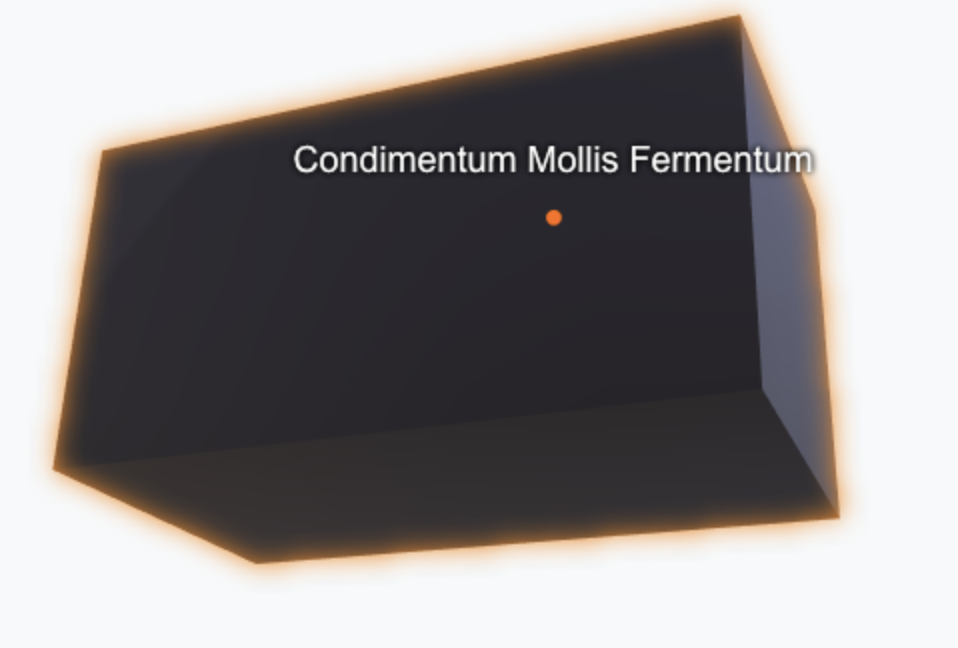

Let me add some snapshots, from any point of view is a circle! My problem is I can not keep the same radius as you do! ?

Thanks,

[NasimiAsl]

hmm   you r good in making challange

https://www.babylonjs-playground.com/#1KUUC3#7

p1 is object center position

but for make exact circle may be we use gl_FragCoord

gl_FragCoord base on pixels so that can make  i need think about that

https://www.babylonjs-playground.com/#1KUUC3#8 that is close too

[Michuspo]

2 minutes ago, NasimiAsl said:

hmm   you r good in making challange

https://www.babylonjs-playground.com/#1KUUC3#6

p1 is object center position

Yesss!! That's it!!! It is amazing!! ? Thanks



[NasimiAsl]

https://www.babylonjs-playground.com/#1KUUC3#8



[NasimiAsl]

notice that p1 is position of inside (try keep it close to center)
