God ray eash material versioan

[NasimiAsl]

*versioan =  version



i cant stop trying make this ** is not completed dont use in your source for now

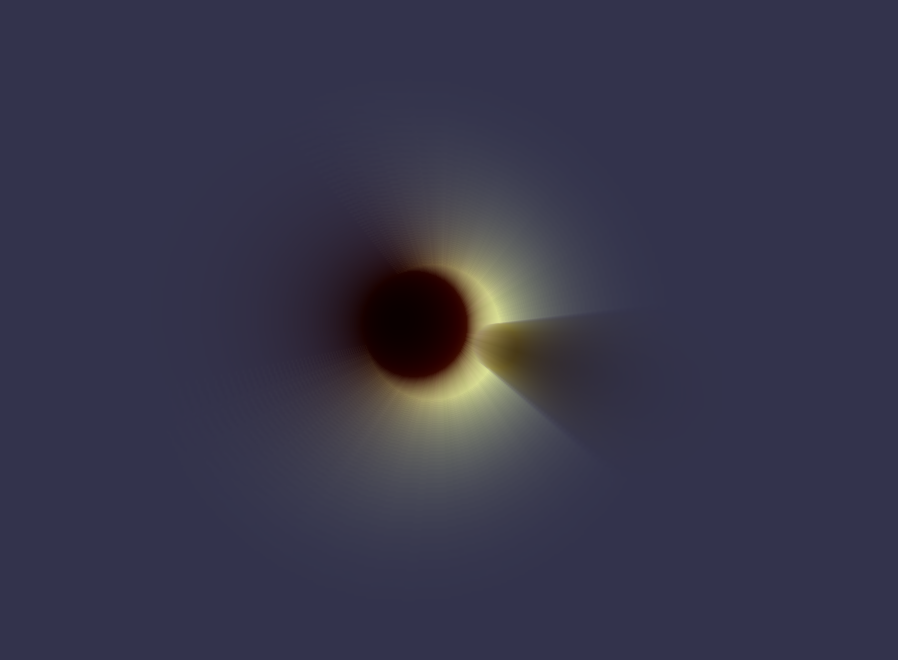

godray



http://www.babylonjs-playground.com/#URP3W#9



http://www.babylonjs-playground.com/#URP3W#16 with blur





blur :



http://www.babylonjs-playground.com/#URP3W#10  1%

http://www.babylonjs-playground.com/#URP3W#11  3%

http://www.babylonjs-playground.com/#URP3W#12  8%

http://www.babylonjs-playground.com/#URP3W#13  30%

http://www.babylonjs-playground.com/#URP3W#14  50%



compare fbs with BlurPostProcess

[BitOfGold]

So cool!

I hope it will be open source and (a bit) documented!


[Vousk-prod.]

Wooaaahooa, your blur effects are just impressive !!



@jahow, @luaacro, Maybe this blur implementation will one day be usable in the DOF and SSAO pipelines !

[NasimiAsl]

@vousk-prod



thanks



@bitOfGold I work it on Github (open source ) give me a time for complete the documentation

[jahow]

Hey NasimiAsl,



Could you please explain a bit your method for achieving the blur effect ?



It sure looks nice, even with a large blur radius!

[NasimiAsl]

hey jahow



sure



step 1:  i make method for compose multi material



like this [ {r:mat1 , e:opacity1} , ... ]



step 2 : build array   with screen shot and move it in vertical direction



** use some method like paw for make natural movement



step 3 : use step1 method and make pic



step 4 : do all steps again with horizontal direction





var array = [];

var alpha = 1.0;



for (var  movement = 0.002; movement < 0.49; movement += 0.008)

{

        alpha -=  0.05;  // lose some alpha in each step

        alpha = Math.max(0., alpha);



        var naturalMove=  Math.pow(movement,0.9)/1.33  ;



                                                                              /* vec2 direction vec2(1.0,0.)  */

        array.push({ r: eash.cameraShot({ uv: ' uv  +vec2('+ naturalMove +',0.0)' }), e: alpha });  // push { r : 'gl_FragColor' , e:'alpha' }

        array.push({ r: eash.cameraShot({ uv: ' uv  +vec2(-1.*'+naturalMove+',0.0)' }), e: alpha }); // push in 1-*dir

}



// eash make new postprocess with this option and make shader

 eash.linerPostProcess(    eash.multi( array ,true)  /*step 1 method */ , camera, 0.5  /* scale screen to 50% */);



github eash : https://github.com/NasimiAsl/Eash/



mail me for more : [email protected]

[amarneethi]

This is sexy! @NasimiAsl do you have a link to the doc for this...? I was not able to find it in github...

[NasimiAsl]

this is changed to ShaderBuilder in babylonjs\extensions  i am write now the full document and release them in bjs 2.4

but you can make special request and  use Name i can Make your want shader  (it is free  )
