Problem with opacityTexture

[eljuko]

Hey all!

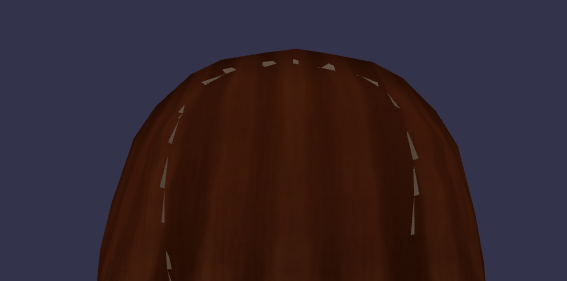

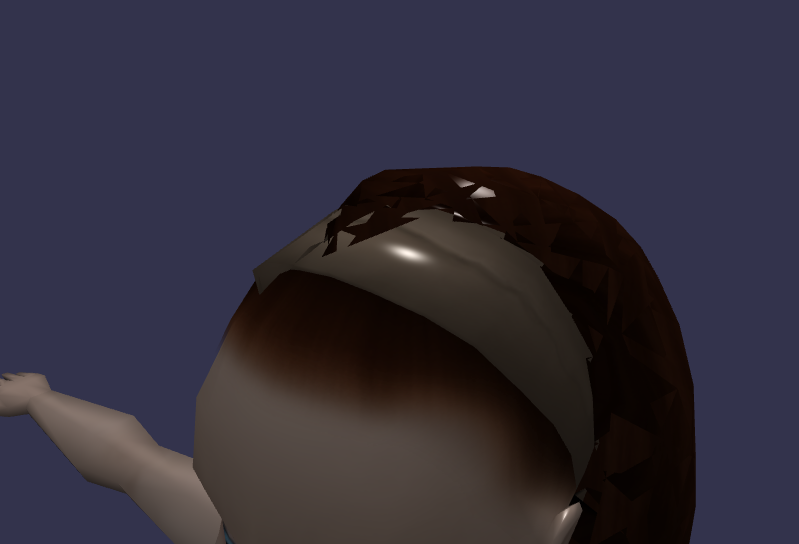

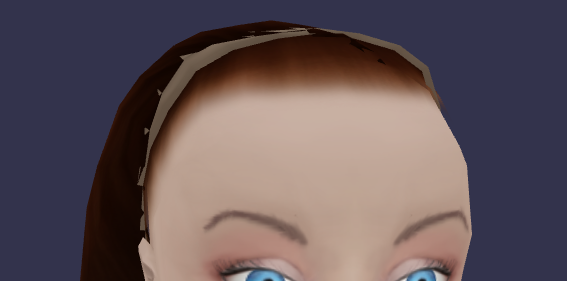

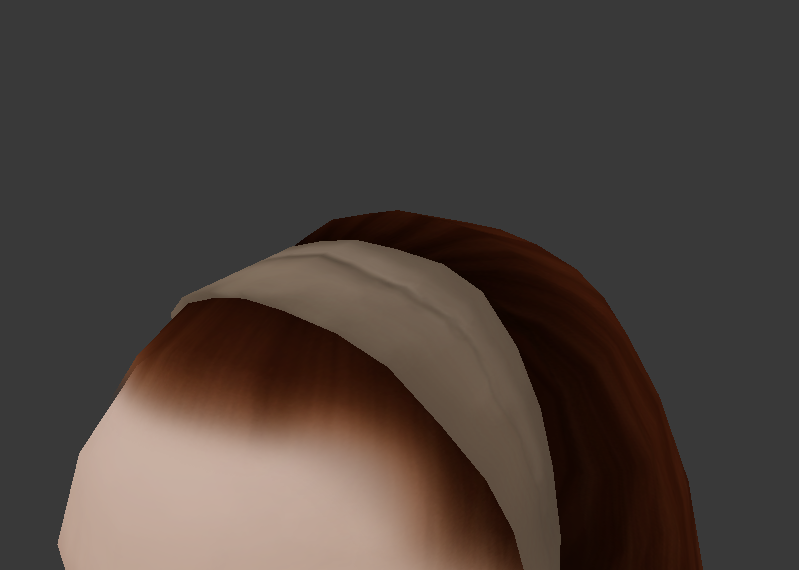

I'm having a hard time with opacityTexture. Hair just seem to "flip" somehow. I'v attached some images so you can see the difference.

Any idea what might cause that kind of behavior?

Code:

var material2 = new BABYLON.StandardMaterial("texture2", scene);
material2.diffuseTexture = new BABYLON.Texture("data/models/hair.png", scene);
material2.opacityTexture = material2.diffuseTexture;

material2.backFaceCulling = false;
hairModel1 = newMeshes[1];
hairModel1.material = material2;



[adam]

What does it look like when backFaceCulling is on?

[eljuko]

Hey Adam,

doesn't look that bad, but it's still there.

[adam]

It looks like you are having a similar issue to this one:



[eljuko]

I'm afraid that didn't fix the issue. It clearly does something, but not as i hoped. i tried values between -10 to 10. Also tried to fix the image in case there was some "hidden" transparency but didn't work either.

any other ideas?

[adam]

Did you try adjusting the cam.fov value?



[eljuko]

Yeah tried to change camera.fov to 0.01 but read that  article in a hurry so not quite sure if i did that right. Anyhow. It didnt help either.

Edit: will try that again in one hour.

Edit2: Tried camera.fov and it didn't work either. Will check the blender file if there's anything i could change, and will report here if i can find any solution for this.

[gryff]

Hi @eljuko

Two questions:

1. Is the hair mesh made of multiple overlapping strips?

2. Is your texture ("hair.png") an RGBA texture? Does it have transparency?

If so, what impact does deleting this line in your code have:

material2.opacityTexture = material2.diffuseTexture;

cheers, gryff

[eljuko]

Hey gryff!

1. nope, there is no overlapping strips.

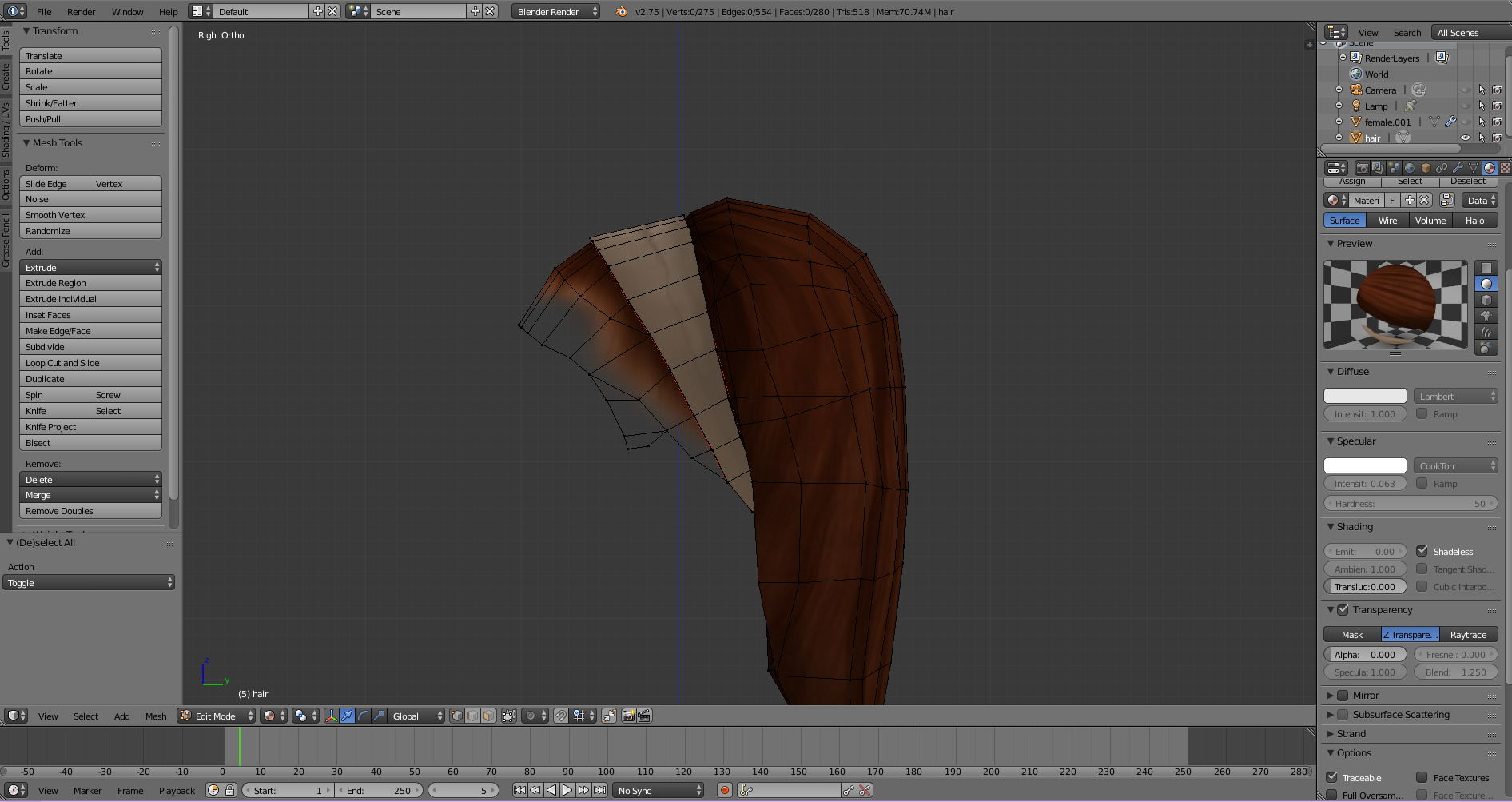

2. well it should atleast  (attached image from blender)

edit:

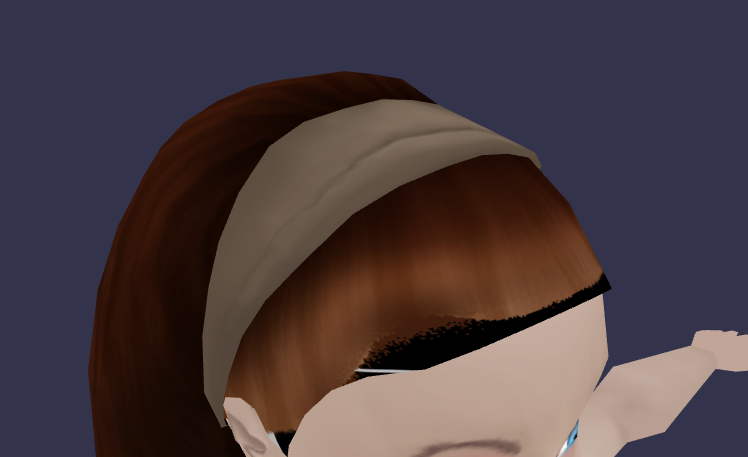

3. removed the line and transparent areas from image turn black. also the gradient transparency is gone.

[gryff]

Well, eljuko,  the reason I asked those two questions is because I have been testing hair much like you  - except that my hair model is made from mesh strips.

Example 1 - Basic export from Blender of mesh strips model - you can see areas of one mesh poking through another - needs some mesh tweaking.

Example 2 - with the additional line of code - ugly

The texture I am using is an RGBA

cheers, gryff

[gryff]

Quote

3. removed the line and transparent areas from image turn black. also the gradient transparency is gone.

Eljuko, what happens to this case if you add this line of code:

material2.diffuseTexture.hasAlpha = 1;

cheers, gryff

[eljuko]

Thanks for the examples! Looks like the example2 has the same issue than mine does. Is it a bug or?

Anyhow, gonna pass the lame gradient transparency and make the front part of the hair from strips somewhat like u or just material.diffuseTexture.hasAlpha = true.

Thank u!

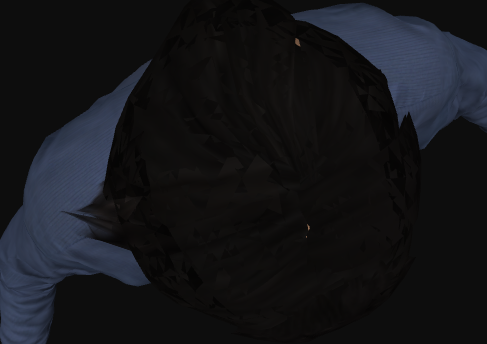

[badHairDay.png]

[eljuko]

11 minutes ago, gryff said:

Eljuko, what happens to this case if you add this line of code:

material2.diffuseTexture.hasAlpha = 1;

cheers, gryff

Added img. Atm this is the way to go i think. Just need to do some work with the image now

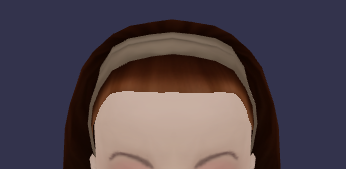

[badHairDay2.png]

[gryff]

Quote


eljuko - made me spill my coffee

Watch out if you work with mesh strips (a common technique) for those nasty overlaps.

cheers, gryff

[eljuko]

Thank you both for wasting ur time trying to resolve my issues
