inconsistencies between renderers

[atrilumen]

I've noticed that things (textures (with alpha) created from canvases; bitmap texts) drawn with the webGL renderer have light colored outlines that are not present with the canvas renderer.



Is there anything I can do to mitigate it?



Also, there's a large disparity between the effective translucency of sprites drawn with the two renderers. For now I'm switching between two different alpha values depending on renderer type, but the screenshot below shows the difference without that workaround applied. (It's a relatively difficult workaround to apply; subject to lots of tweaking to get it close enough.)







...

Sorry to pop in here for the first time just to whine. Greetings, everyone.

GoodBoyDigital, PhotonStorm, and friends:  respect.





[rich]

Wow, I've never seen that before - how are you making the PNGs? I'll wager it's something to do with their encoding / bit-depth, or GPU possibly. Maybe upload a test for the rest of us to compare?

[atrilumen]

The sprite textures are drawn with canvas and then loaded into textures. The bitmap font glyphs were generated by littera.



I'm using a snapshot from the dev branch of pixi, and the latest chrome on a Macbook Pro 13" with Intel HD3000. That's the only way I've tried it so far (besides using the 1.3.0 release of pixi).



I'll try to upload a test in a little while (it's hard to stay focused on the weekend)...

[atrilumen]

Alright, here's a quick test:

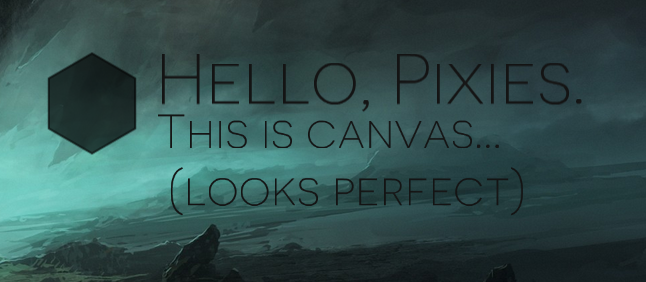

Canvas.

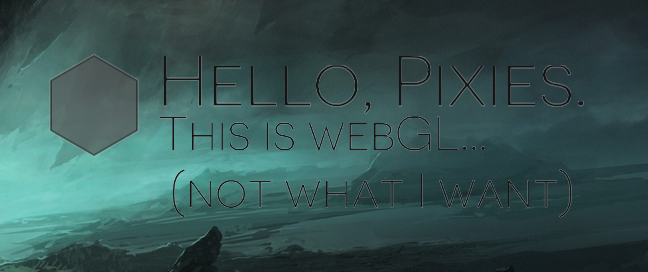

WebGL.

[atrilumen]

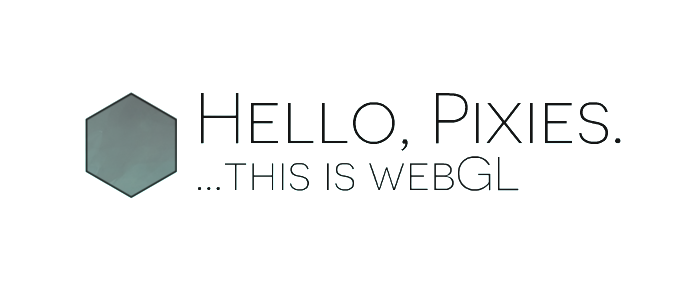

Here's how the webgl version looks in Firefox:





The background only shows through the transparent sprite.



And now this is resolved. Passing null as the color parameter to the Pixi.stage constructor did the trick.



Now it looks correct in both renderers.

[Akis]

Wow, nice trick.



But still, by passing null to the stage, it will set black as the background color. What were you using before? white?

[atrilumen]

@Aksis: Yes.



The project I'm working on originally had a white background before I decided to use a transparent canvas over a background image.



So I suppose this could still be an issue.



I wonder why white causes those effects when black does not. (I'm passing black explicitly now, since you mentioned it). I guess I may have to dig into Pixi more than I planned.

[xerver]

@Aksis: Yes.



The project I'm working on originally had a white background before I decided to use a transparent canvas over a background image.



So I suppose this could still be an issue.



I wonder why white causes those effects when black does not. (I'm passing black explicitly now, since you mentioned it). I guess I may have to dig into Pixi more than I planned.



Probably because your images are black, I suspect you would have black artifacts if you were using white images.

[atrilumen]

Pull request 345 resolves both of these issues.
