problem about pbrmaterial with Parallax

[iisodd]

when using pbrmaterial with parallax enabled , the albedoTexture gone, and here is a PG showing the problem :http://babylonjs-playground.com/#10I31V#27

according to tutorials said : A diffuse texture is required for using parallax mapping.

so how do i use parallax in pbr?



[Sebavan]

Hello,

The problem is you mixed specularColor (StandardMaterial) and reflectivityColor (PBRMaterial). This is fixed for the texture here.

http://babylonjs-playground.com/#10I31V#31

Trying it, we figured PBR Parallax has been broken. the PR is in progress to fix it:

https://github.com/BabylonJS/Babylon.js/pull/1472

It should be in the PG tomorrow.

CU,

[iisodd]

thanks , the problem solved, but another problem raised

the parallax occlusion not working as expect,

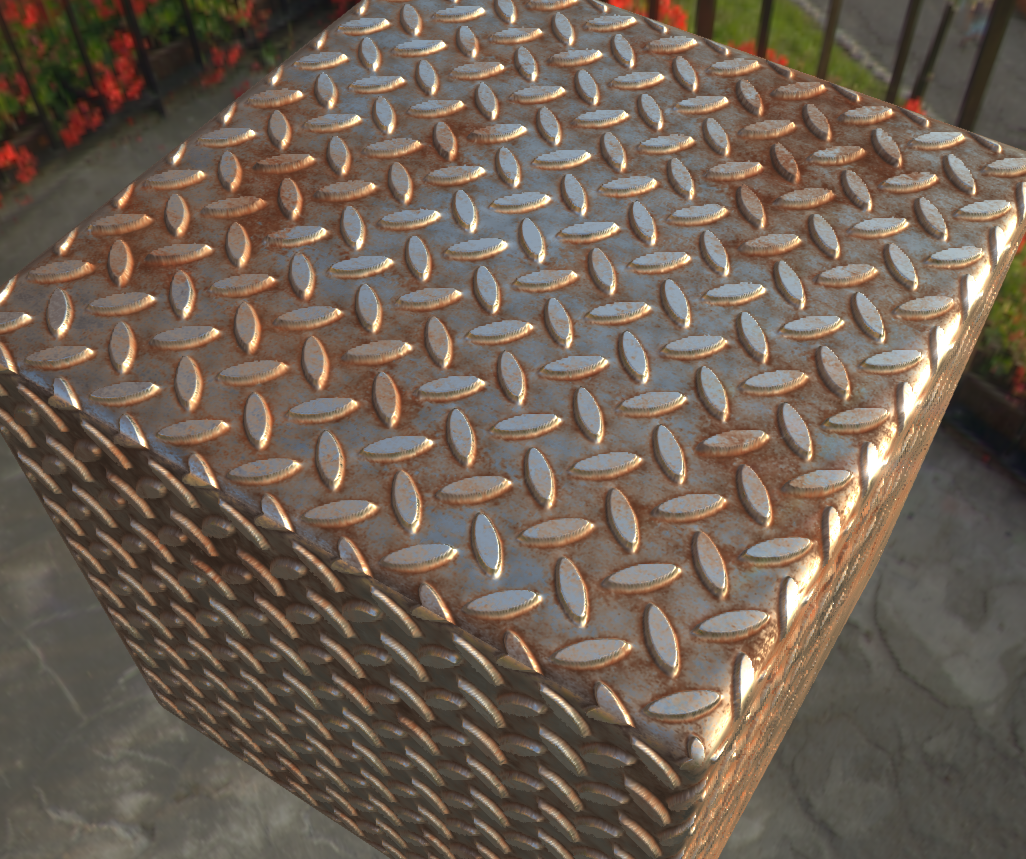

it should looks like this

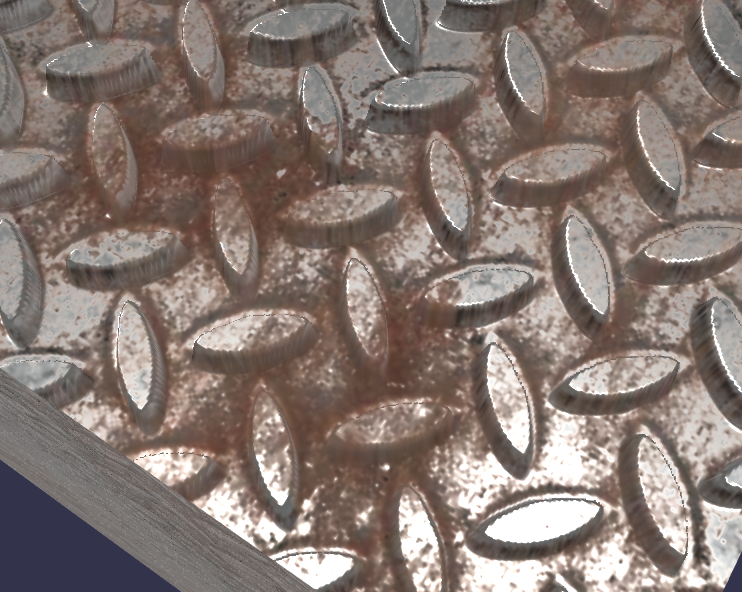

but in babylon it looks like this

this is the PG showing the problem http://babylonjs-playground.com/#10I31V#35 (not fix the parallax yet, so maybe you cant see the albedotexture )



[Pryme8]

I've never gotten the pbr materials to look right... just sayin

[Sebavan]

Hello,

The problem here is not just about PBR anymore but the Parallax in general, ping @Nockawa:

http://babylonjs-playground.com/#10I31V#36

Tweaking your parameter should make it look better. what was the other image from ?



[iisodd]

Hello,

the image from the substance designer,



the problem is the rust display in the wrong way,

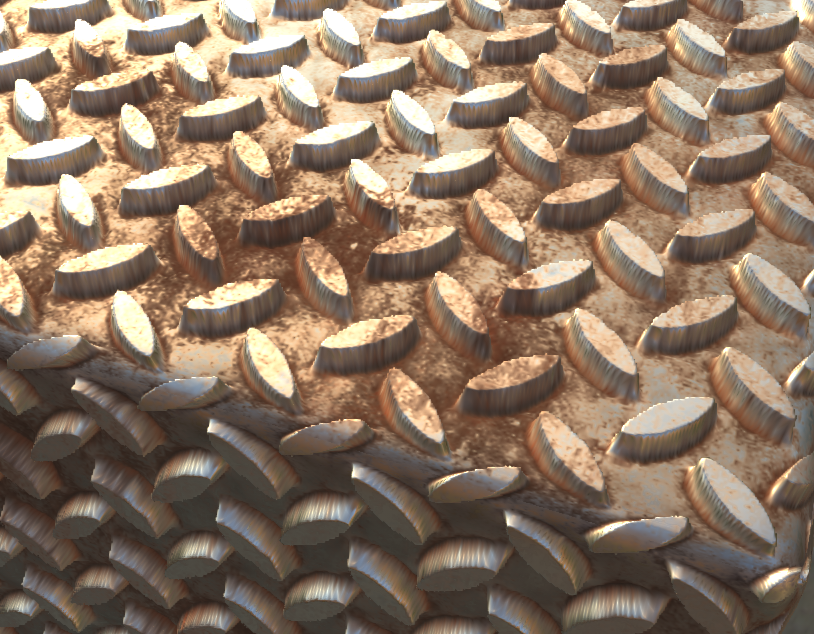

this is the way it should be

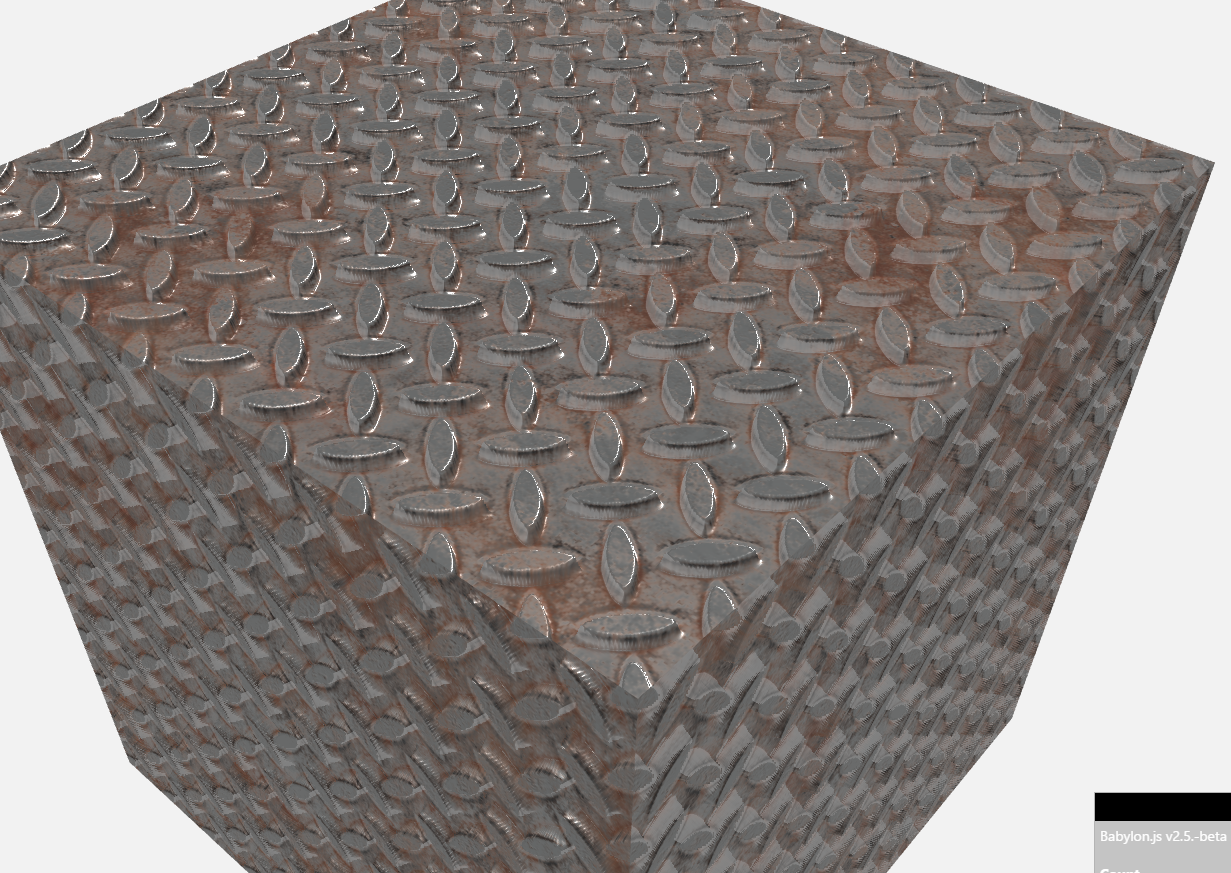

but in babylonthe rust display on a flat layer , not in 3d place

[Sebavan]

I agree it will require tweeking and this comes mainly for the envoironemnt and lighting in use:

http://babylonjs-playground.com/#10I31V#79

[Sebavan]

Ok got it :-)

@Nockawa is your guy for that.

[Nockawa]

You said " the rust display on a flat layer , not in 3d place", so you mean the rust is not displaced by the parallax algo? The rust is part of the albedo texture, right?

The reference picture you posted is using Parallax mapping or it does displacement mapping (recomputing the geometry) ?

[Sebavan]

Actually the error is not on the diffuse who seems to be the only one to work:

http://babylonjs-playground.com/#10I31V#80

but on the other channels who are not taking the offset in account to fetch (ambient occlusion, reflectivity/specular, opacity, ...).

I will try to fix it over the weekend.

[Sebavan]

The fix is in PR : https://github.com/BabylonJS/Babylon.js/pull/1475

And should give you this on the following pg once in it tomorrow: http://babylonjs-playground.com/#10I31V#79



[iisodd]

thank you for you help, ,

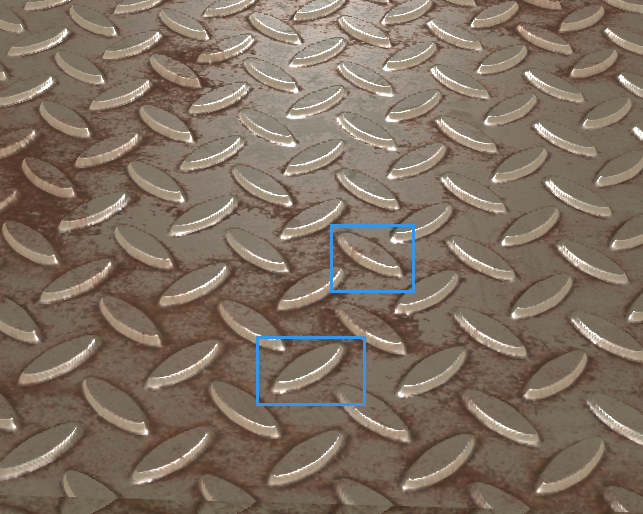

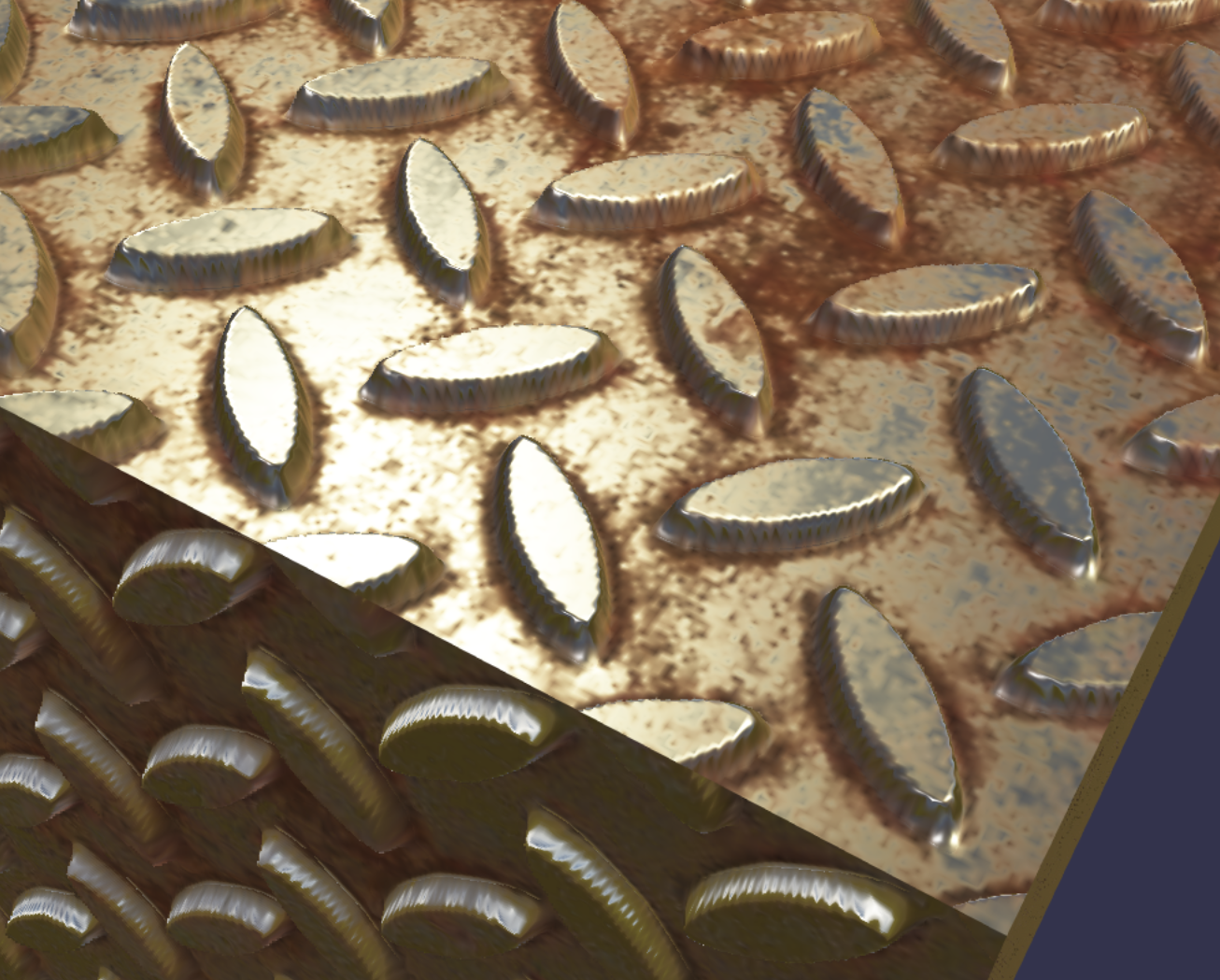

but i find out some face of the cube's high light on these are not right .(the light is from the top, so i think the high light should on the top as well.

and here is only one light in the scene.

here is the PG showing the problem: http://babylonjs-playground.com/#10I31V#81



thanks

[Sebavan]

Yep seems an issue in standard material as well with bump only:

http://babylonjs-playground.com/#10I31V#82

Highlights seems reversed from where they should be.

@Deltakosh can probably help on this else I ll give it a try nex week.





[Nockawa]

On 10/29/2016 at 10:34 AM, iisodd said:

thank you for you help, ,

but i find out some face of the cube's high light on these are not right .(the light is from the top, so i think the high light should on the top as well.

and here is only one light in the scene.

here is the PG showing the problem: http://babylonjs-playground.com/#10I31V#81



thanks

My two cents on that, I remember while working on the parallax there weren't clear definition for the bump/normal map of what color should be for R/G and sometimes I used map which were "inverted" compared to the way the engine were interpreting them. I used this tool to correct the files, it's pretty handy: http://cpetry.github.io/NormalMap-Online/

[Sebavan]

Hello,

This makes me remember of the different conventions:

OpenGL
x-axis = right
y-axis = up

DirectX
x-axis = right
y-axis = down

BabylonJS
x-axis = left
y-axis = down

and it seems the working setup is:

material.invertNormalMapX = true;

http://babylonjs-playground.com/#10I31V#85

Have a good week end.



[iisodd]

wow, thank you .

[Nockawa]

7 minutes ago, Sebavan said:

Hello,

This makes me remember of the different conventions:

OpenGL
x-axis = right
y-axis = up

DirectX
x-axis = right
y-axis = down

BabylonJS
x-axis = left
y-axis = down

and it seems the working setup is:

material.invertNormalMapX = true;

http://babylonjs-playground.com/#10I31V#85

Have a good week end.



I've looked for this kind of info a lot when working on Parallax, so if there's no documentation about that (because I may have missed it), it would be extremely helpful to make/append one!

@Sebavan you're the man ! (not for the document stuff, well, you could be the man, but for the knowledge stuff!)

[iisodd]

but why don't we just  follow the same way as DirectX  or OpenGL?

[Nockawa]

Just now, iisodd said:

but why don't we just  follow the same way as DirectX  or OpenGL?

because we are as good and as important as them to make up our own standards!

[iisodd]

well , you really made your point



[Sebavan]

Because it has been implemented like this first and to not brake back compat when discovered later during this thread I guess ???



[Nockawa]

Ok, I've found this: https://doc.babylonjs.com/tutorials/Advanced_Texturing and it's talking about the normals, @Sebavan is the information in this doc accurate?

Here's what's said:

Quote

Please note that by default, normal maps are considered to be following DirectX format. If you want to provide a different convention normal maps, you can just set material.invertNormalMapX = true or material.invertNormalMapY = true.



[Sebavan]

lol, dunno which one to trust now :-) We should double check the default.

At least the @iisodd scene looks consistent, but yes agree would be nice to validate which one is in use.

http://babylonjs-playground.com/#10I31V#86

CU,

[iisodd]

At least my normal map is DirectX format.

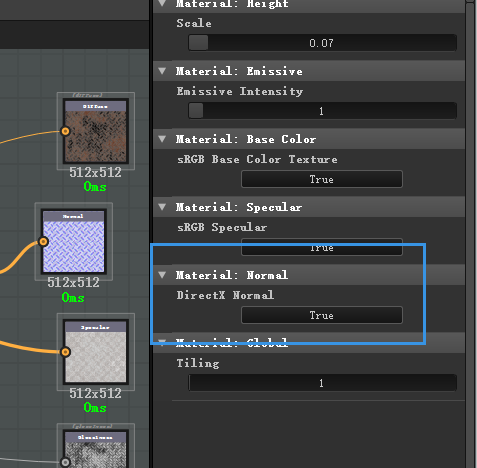

here is a screenshot about the setting in substance designer

so i believe babylonjs not following DirectX format.



[Sebavan]

This would mean this one is true :-)

OpenGL
x-axis = right
y-axis = up

DirectX
x-axis = right
y-axis = down

BabylonJS
x-axis = left
y-axis = down
