Unity exporter bugs (lightmap, mesh, and textures)

[chloridrik]

Hi,

I'm using Unity 5.5.0 f3 and I have many bugs with the exporter.

#1 : backed lightmap :
- I have started a new scene with a plan, box, directional light and a camera.
- My light use backed light only
- My meshes use static lightmap
- one standard material for my objects with a texture
- In the exporter window I have checked "export lightmap", synchronous backing enabled, embed shader files.
==> but all my objects are black in the babylonjs preview when I use backed light.



#2 : objects export :
- I have tested with this model : https://www.assetstore.unity3d.com/en/#!/content/61925
and when I export I have this message :

FileNotFoundException: Resources/unity_builtin_extra does not exist
System.IO.File.Copy (System.String sourceFileName, System.String destFileName, Boolean overwrite) (at /Users/builduser/buildslave/mono/build/mcs/class/corlib/System.IO/File.cs:107)
BabylonExport.Entities.BabylonScene.AddTexture (System.String texture)
Unity3D2Babylon.SceneBuilder.CopyTexture (System.String texturePath, UnityEngine.Texture2D texture2D, BabylonExport.Entities.BabylonTexture babylonTexture, Boolean isLightmap) (at Assets/Babylon/Source/SceneBuilder.Materials.cs:274)
Unity3D2Babylon.SceneBuilder.DumpTexture (UnityEngine.Texture texture, UnityEngine.Material material, System.String name, Boolean isLightmap) (at Assets/Babylon/Source/SceneBuilder.Materials.cs:1060)
Unity3D2Babylon.SceneBuilder.DumpTextureFromMaterial (UnityEngine.Material material, System.String name) (at Assets/Babylon/Source/SceneBuilder.Materials.cs:1032)
Unity3D2Babylon.SceneBuilder.DumpPBRMaterial (UnityEngine.Material material, Int32 lightmapIndex, Vector4 lightmapScaleOffset, Boolean metallic, Int32 lightmapCoordIndex) (at Assets/Babylon/Source/SceneBuilder.Materials.cs:480)
Unity3D2Babylon.SceneBuilder.DumpMaterial (UnityEngine.Material material, Int32 lightmapIndex, Vector4 lightmapScaleOffset, Int32 lightmapCoordIndex) (at Assets/Babylon/Source/SceneBuilder.Materials.cs:304)
Unity3D2Babylon.SceneBuilder.ConvertUnityMeshToBabylon (UnityEngine.Mesh mesh, UnityEngine.Transform transform, UnityEngine.GameObject gameObject, Single progress, UnityEditor.UnityMetaData& metaData, System.Collections.Generic.List`1& particleSystems, System.Collections.Generic.List`1& lensFlares, System.String& componentTags, BabylonExport.Entities.BabylonMesh collisionMesh, UnityEngine.Collider collider) (at Assets/Babylon/Source/SceneBuilder.Meshes.cs:345)
Unity3D2Babylon.SceneBuilder.ConvertFromUnity () (at Assets/Babylon/Source/SceneBuilder.cs:597)
UnityEngine.Debug:LogException(Exception)
Unity3D2Babylon.SceneBuilder:ConvertFromUnity() (at Assets/Babylon/Source/SceneBuilder.cs:806)
Unity3D2Babylon.ExporterWindow:Export(Boolean) (at Assets/Babylon/Source/ExporterWindow.cs:736)
Unity3D2Babylon.ExporterWindow:OnGUI() (at Assets/Babylon/Source/ExporterWindow.cs:573)
UnityEditor.DockArea:OnGUI()

I have the latest version of today, I have updated the plugin to 2.5 version.

Can you help me to understand please ?



Best regards,

Jeremie.


[GameMonetize]

Hey Jeremie , did you try the new one? https://github.com/BabylonJS/Babylon.js/tree/master/Exporters/Unity 5/EditorToolkit

Ping @MackeyK24

[chloridrik]

I have found the problem with the cars models. It was because the car_glass material use "UIMask" texture lol not a real texture file ^^

I meet an other problem in this scene : https://www.assetstore.unity3d.com/en/#!/content/65679
and I have solved it by adding in Tools.cs line 1031 : if(!mesh) return;
I don't know why a mesh is null in this scene...

@Deltakosh I test the new exporter now :-)

[chloridrik]

@Deltakosh I have tested with this version in my first post and I can't see backed light. all is black

[chloridrik]

I know it's just the beginning of the new unity exporter and I would like contribute too.

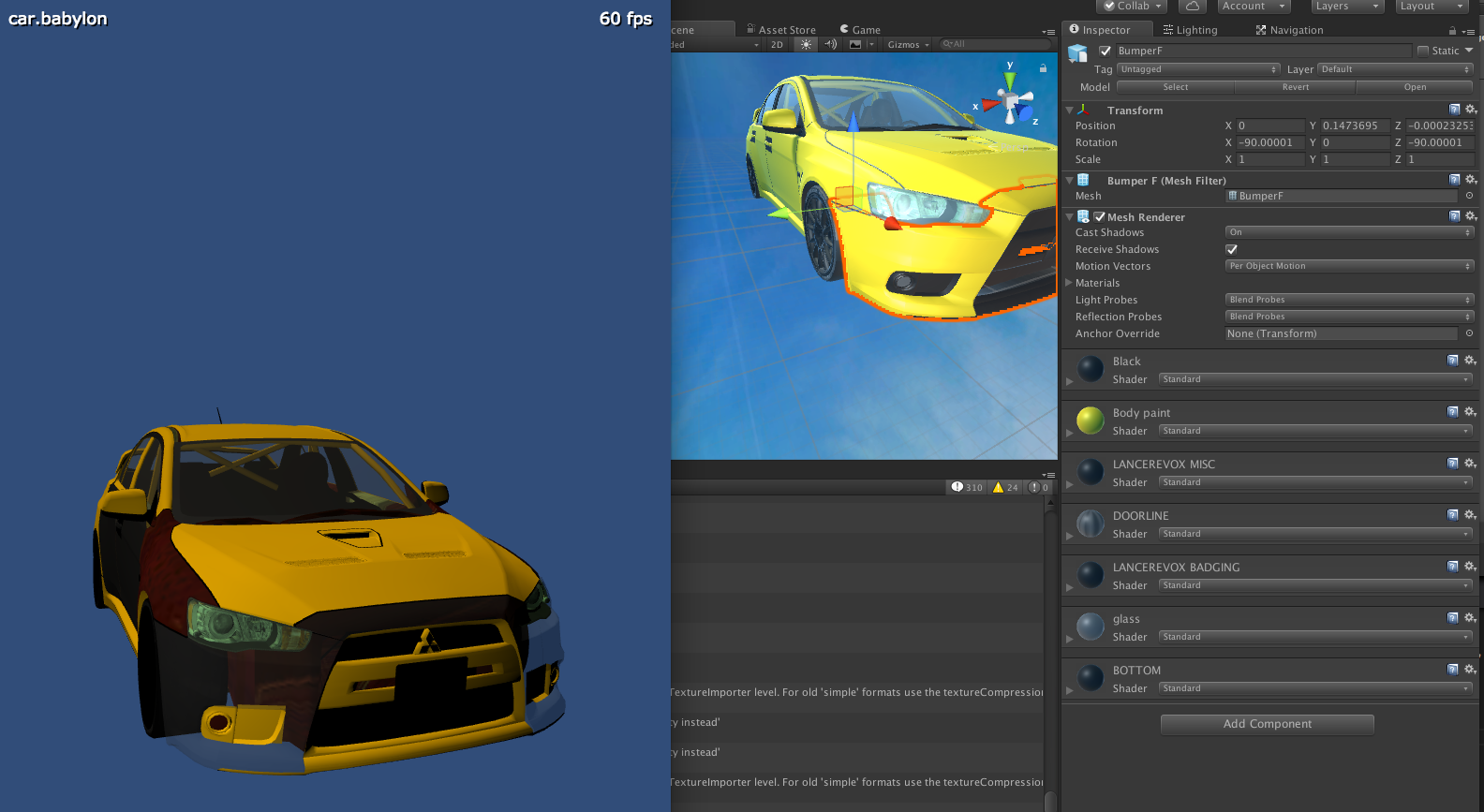

I have a bug with this car model (with the fbx version) http://tf3dm.com/3d-model/mitsubishi-lancer-evolution-x-98027.html

I'm watching for this problem.



[chloridrik]

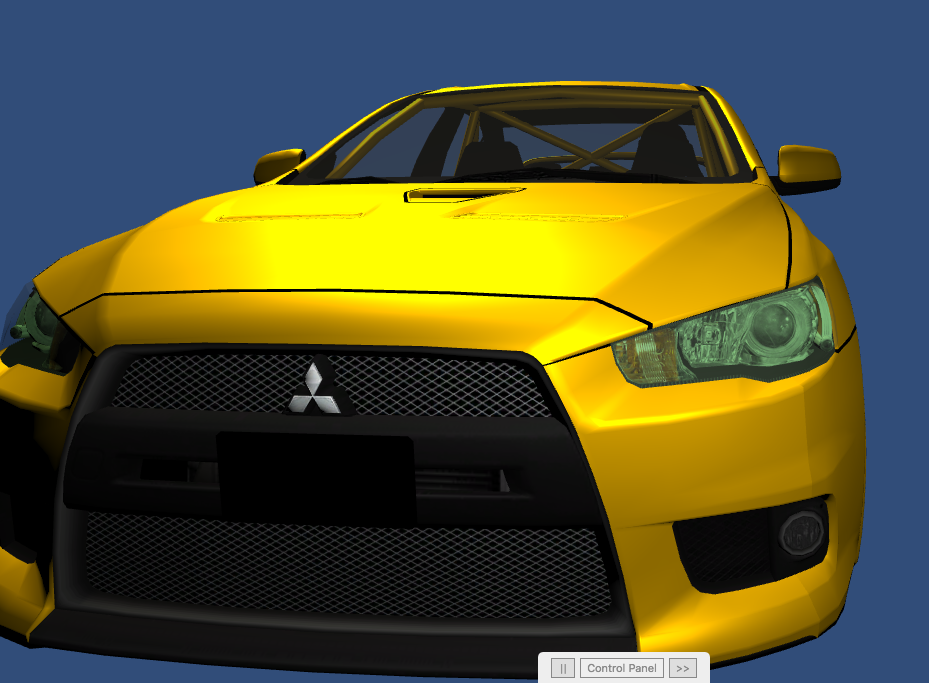

ok I have found the problem, it's because in SceneBuilder.Meshes.cs in ConvertUnityMeshToBabylon you use renderer.sharedMaterial.name as key in multiMatDictionary.

But I see the renderer.sharedMaterial.name is the name of the first material... In this case the model is not realy optimized and have many multi-material starting with the same first material.

To solve that, I concatain all sub materials names in a key :

                        string key = "";
                        for (int i = 0; i < renderer.sharedMaterials.Length; i++)
                        {
                            key+=renderer.sharedMaterials[i].name;
                        }


                        if (!multiMatDictionary.ContainsKey(key))
                        {
                            bMultiMat = new BabylonMultiMaterial
                            {
                                materials = new string[mesh.subMeshCount],
                                id = Guid.NewGuid().ToString(),
                                name = key//renderer.sharedMaterial.name
                            };

                            for (int i = 0; i < renderer.sharedMaterials.Length; i++)
                            {
                                var sharedMaterial = renderer.sharedMaterials[i];
                                BabylonMaterial babylonMaterial;

                                babylonMaterial = DumpMaterial(sharedMaterial, renderer.lightmapIndex, renderer.lightmapScaleOffset);

                                bMultiMat.materials[i] = babylonMaterial.id;
                            }
                            if (mesh.subMeshCount > 1)
                            {
                                multiMatDictionary.Add(bMultiMat.name, bMultiMat);
                            }
                        }
                        else
                        {
                            bMultiMat = multiMatDictionary[key];
                        }



[GameMonetize]

Excellent please feel free to send a PR
